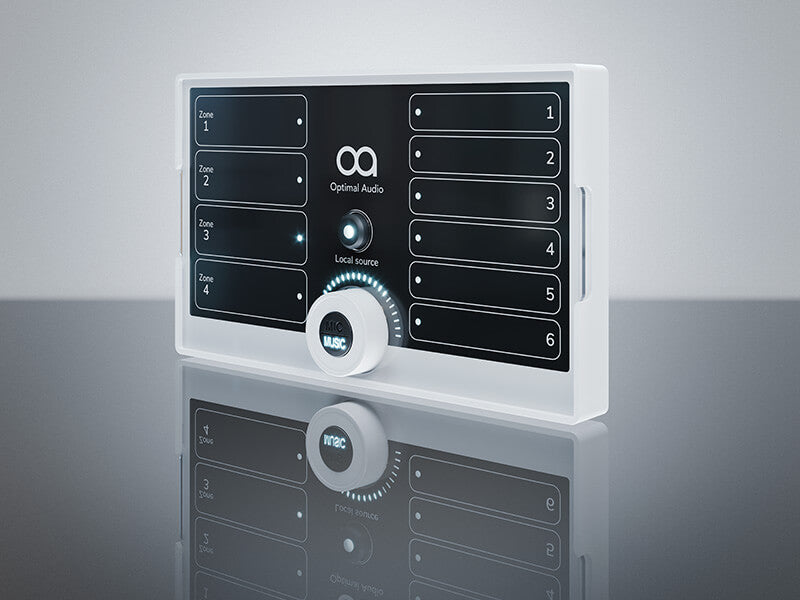

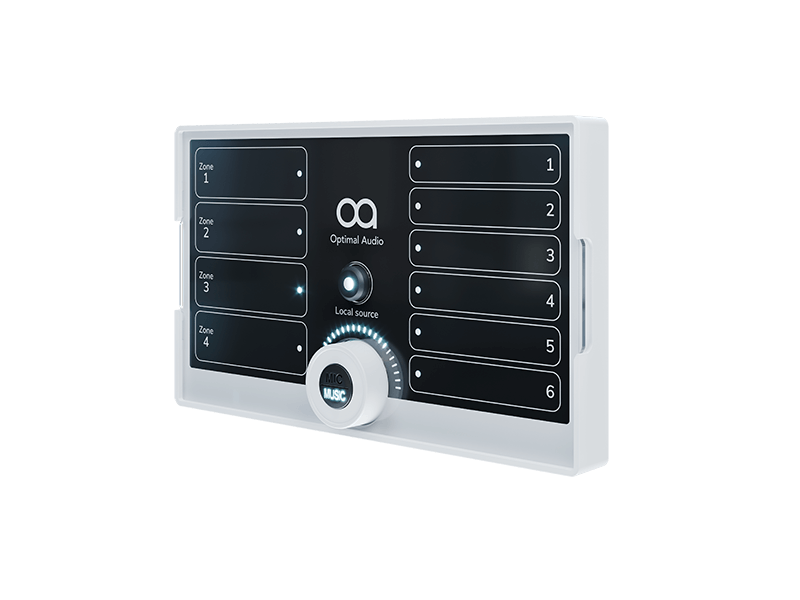

ZonePad 4: 4-Zone Wall Controller with Source & Volume Control

The Optimal Audio ZonePad 4 is an elegant wall-mounted controller designed for easy management of audio across four separate zones. With a sleek touch interface, it allows users to effortlessly control volume and select audio sources, making it ideal for various environments such as restaurants, corporate offices, and residential spaces.

Features

• Four-Zone Control: Manage up to four distinct audio zones from a single location.
• Intuitive Touch Interface: Features a clean and user-friendly touch-sensitive control layout.
• Independent Volume Control: A large volume knob allows for precise volume adjustments in each selected zone.
• Source Selection: Choose from multiple audio sources with dedicated buttons or a rotary switch.
• Contemporary Design: Fits seamlessly into any décor, enhancing the aesthetic of your environment.
• Easy Configuration: Customizable to suit the specific needs of your venue.
• Indicator Lights: Visual indicators display the active source for clarity during operation.
• Cost-Effective Solution: Provides a more economical way to manage multiple zones compared to installing individual controllers.

Specifications

• Type: 4 Zone Wall Controller
• Maximum Distance (CAT5): 300m
• Connection: RJ 45
• Data Protocol: Optimal Audio proprietary over CAT 5
• Case Material: Zinc plated steel, ABS
• Lens Material: Clear acrylic
• Back Box: 2-gang 25mm deep back box
• Dimensions: (W) 146mm x (H) 86.2mm x (D) 39.3mm (W) 5.75” x (H) 3.39” x (D) 1.55”
• Weight: 0.35kg (0.8lbs)
