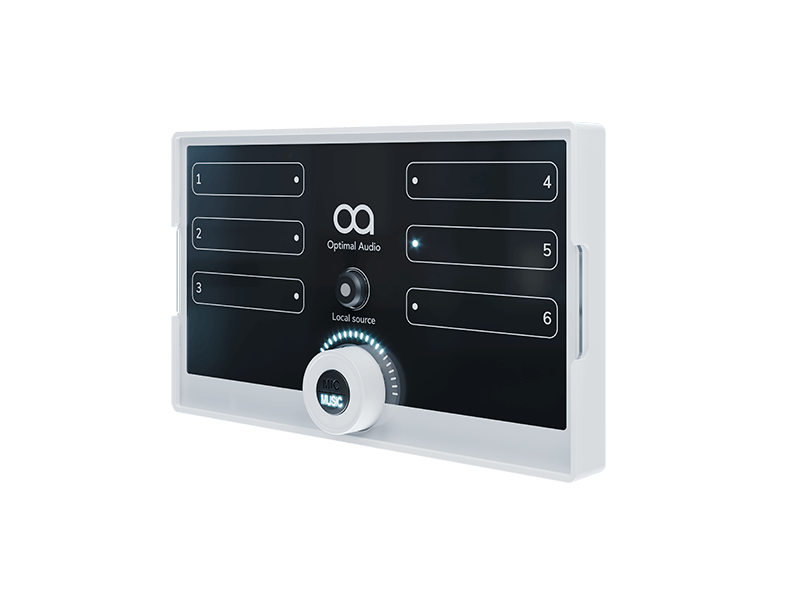

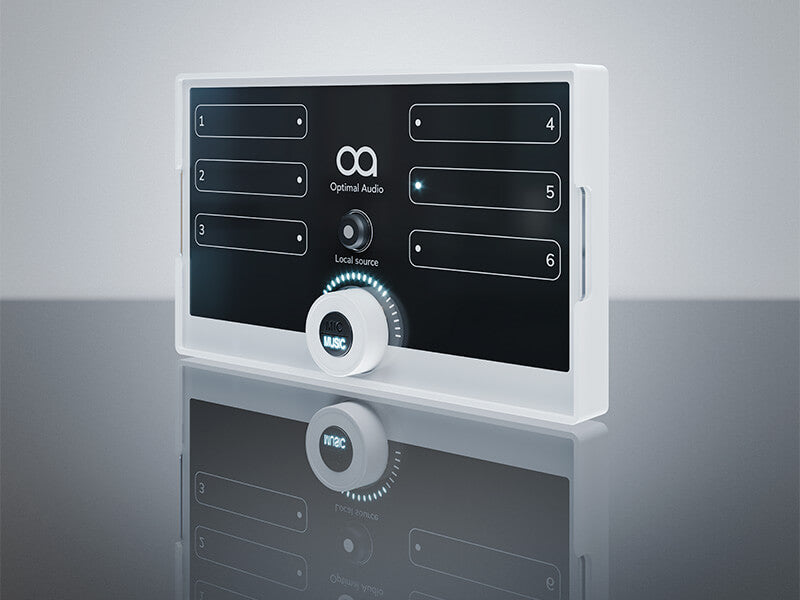

ZonePad 1: Wall-Mounted Audio Controller with Volume & Mic Input

The Optimal Audio ZonePad 1 is an elegantly designed wall-mounted controller that provides intuitive and straightforward access to essential audio controls for a single zone within an Optimal Audio system. It features a sleek touch interface, allowing users to effortlessly manage audio sources and volume levels, making it ideal for various environments such as bars, restaurants, hotels, and corporate offices.

Features

• Single Zone Control: Designed specifically for controlling one zone of an Optimal Audio system.
• Intuitive Touch Interface: Features a clean and user-friendly touch-sensitive control layout.
• Source Selection: Easily switch between playback sources including local inputs, streamers, and DAB radio.
• Volume Control: A large, easily accessible volume knob for quick adjustments.
• Local Mic and Line Input: Supports one local microphone input with 48V phantom power and one mono line input for added convenience.
• Contemporary Design: Fits seamlessly into any décor, enhancing the aesthetics of your space.
• Easy Installation: Streamlined for straightforward installation, making it accessible for various venues.
• Cost-Effective Solution: Provides a budget-friendly option for basic audio control.

Specifications

• Local Mic Input: 1 with 48V phantom power, +12dB to +55dB gain, fixed hi-pass filter @160Hz
• Local Music Input: 1 x mono
• Maximum Distance (CAT5): 300m
• Connection: RJ 45
• Data Protocol: Optimal Audio proprietary over CAT 5
• Case Material: Zinc plated steel, ABS
• Lens Material: Clear acrylic
• Back Box: 2-gang 25mm deep back box
• Dimensions: (W) 146mm x (H) 86.2mm x (D) 39.3mm
• Weight: 0.35kg
