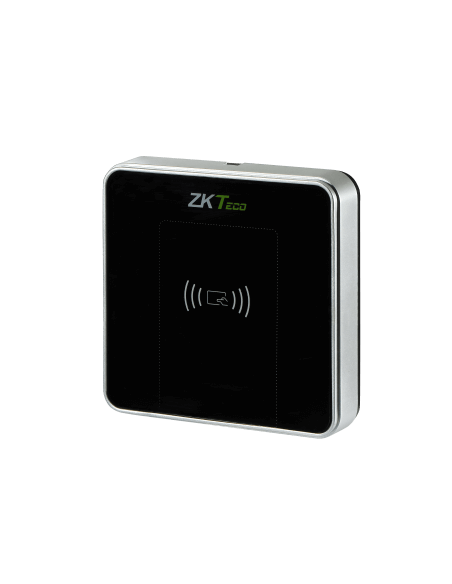

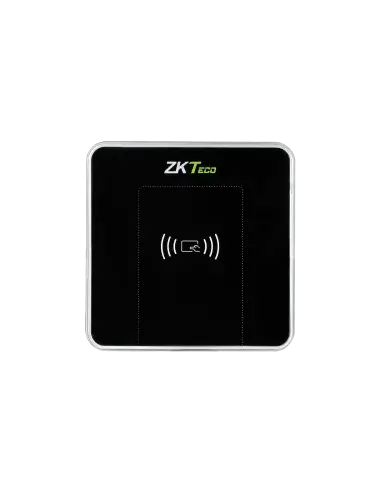

ZKTeco USB UHF Card Issuer

The ZKTeco USB UHF Card Issuer is a high-performance device designed for reading and writing UHF RFID tags and cards. It offers a reliable and efficient solution for various applications, ensuring secure access control and efficient data management.

Features

• Ultra High Frequency (UHF): Operates within the 865MHz-868MHz and 902MHz-928MHz frequency ranges for versatile use.
• Read and Write Capability: Supports reading and writing of data in both User Area and EPC Area of UHF tags.
• Plug and Play Interface: The USB interface allows for easy connection to computers without needing additional drivers.
• Fast Data Reception: Achieves data reception times of less than 90ms, enhancing efficiency in operations.
• Multi-System Support: Compatible with Windows, Linux, Android, and iOS platforms.
• Active Card Search Mode: Equipped with an antenna for efficient card searching.
• Wiegand Output: Default Wiegand 26 output with optional Wiegand 34 output for flexibility.
• Stable Performance: Features a control chip with watchdog and voltage detection for consistent reading performance.

Specifications

• Working Frequency: 865MHz-868MHz / 902MHz-928MHz
• Reading Distance: 20~40CM (dependent on environment and tags)
• Protocol: EPC global UHF Class1 Gen 2, ISO 18000-6C
• Communication Interface: USB analog keyboard output
• Working Voltage: DC 5V (±4%)
• Working Current: 50~300mA
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +80°C
• Dimensions: 107mm x 107mm x 23mm
