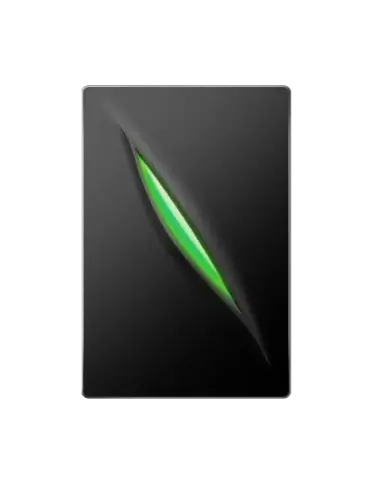

ZKTeco KR310 - Dual Frequency RFID & Mifare Reader

The ZKTeco KR310 is a robust dual frequency RFID and Mifare reader designed for access control systems. With its waterproof IP65 rating and compatibility with various card types, it provides a reliable solution for secure entry management.

Features

• Dual Frequency Operation: Supports both 125kHz and 13.56MHz frequencies, enabling compatibility with a range of RFID card types, including ID, Mifare Classic, and Mifare Desfire.
• Waterproof Design: IP65 rated, making it suitable for outdoor installations and resistant to dust and moisture.
• Easy Installation: Designed for simple connection and installation, allowing for control of one door from both sides.
• LED Access Indicators: Equipped with LED lights to indicate whether access is granted or denied.
• Wide Operating Temperature: Functions effectively in temperatures ranging from -10ºC to +70ºC, suitable for various environments.

Specifications

• Compatibility: ID, Mifare Classic, Mifare Desfire
• Wiegand Signal: 34 bit (EM/ISO14443A)
• Power Supply: DC 6-14V / Max. 70mA
• Reading Distance: Up to 10cm (125kHz) / 5cm (13.56MHz)
• Reading Time: < 300 ms
• Operating Temperature: -10°C to +70°C
• Operating Humidity: 10% to 90%
• Dimensions: 77.5mm (W) x 42.8mm (H) x 16.5mm (D)
• Index of Protection: IP65
