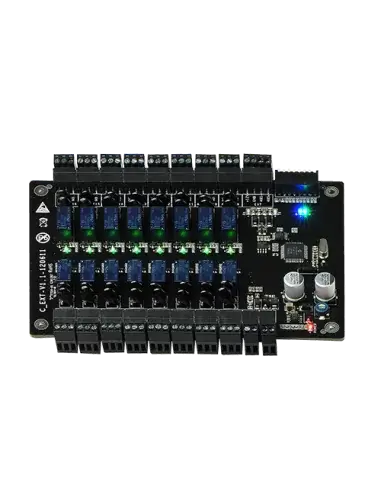

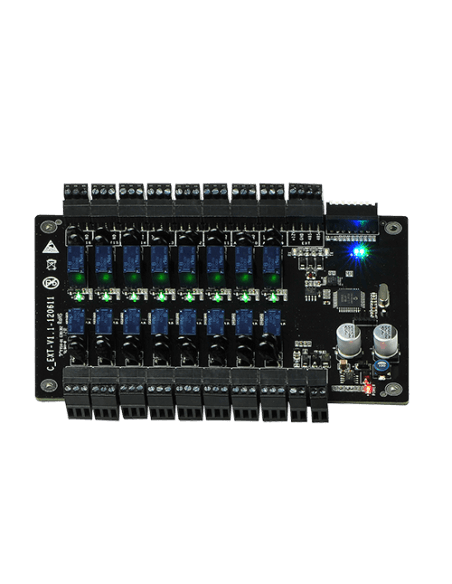

ZKTeco Elevator Extension Board

The ZKTeco Elevator Extension Board (EX16) is designed to enhance elevator access control solutions, allowing for scalable and secure access management across multiple floors. This extension board can restrict access to up to 16 additional floors, making it a versatile choice for modern buildings seeking advanced security measures.

Features

• Scalable Access Control: The EX16 can be combined with the EC10 panel to control up to 58 floors in total, providing flexibility for large buildings.
• Multiple User Credentials: Supports various access methods including fingerprint, proximity card, and password, allowing for customizable security measures.
• Time-Scheduled Access: Pre-defined time schedules can be set to control floor access, enhancing security during off-hours.
• Easy Integration: The board communicates with the EC10 panel via RS485, making installation and integration straightforward.
• Robust Event Capacity: Capable of handling up to 100,000 events, ensuring comprehensive tracking of access activities.

Specifications

• Floor Button Control Relay: 16
• Communication to EC10: RS485
• RS485 Address: Set by DIP switch
• Power Supply: 12V DC, 1A
• Dimensions: 160mm × 106mm × 60mm (L*D*H)
• Net Weight: 0.2kg
