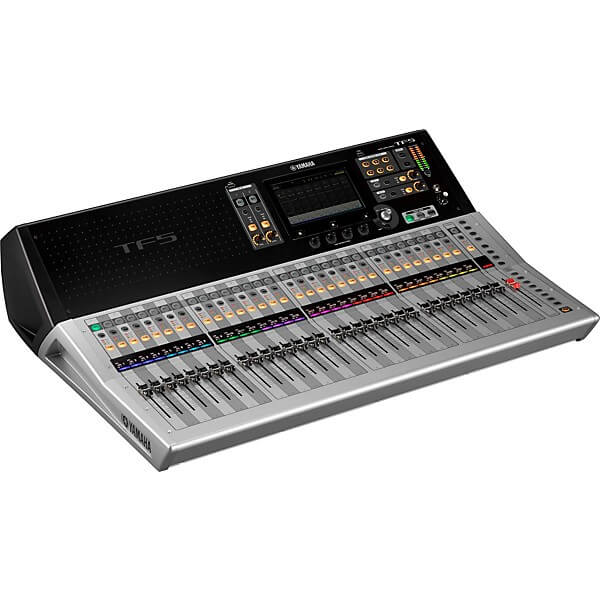

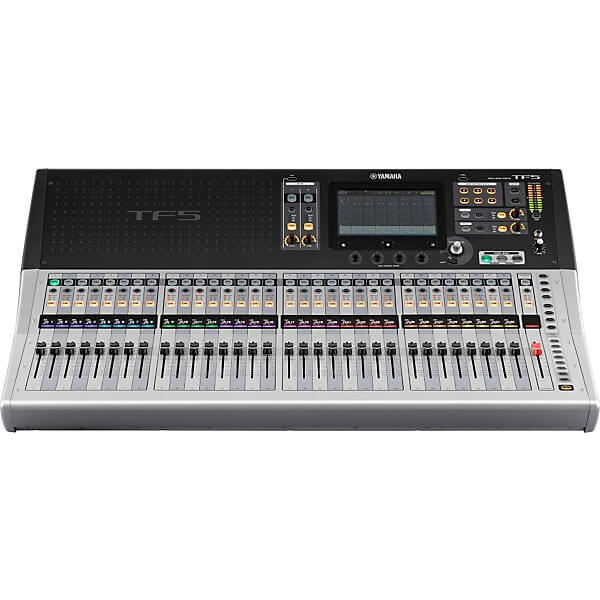

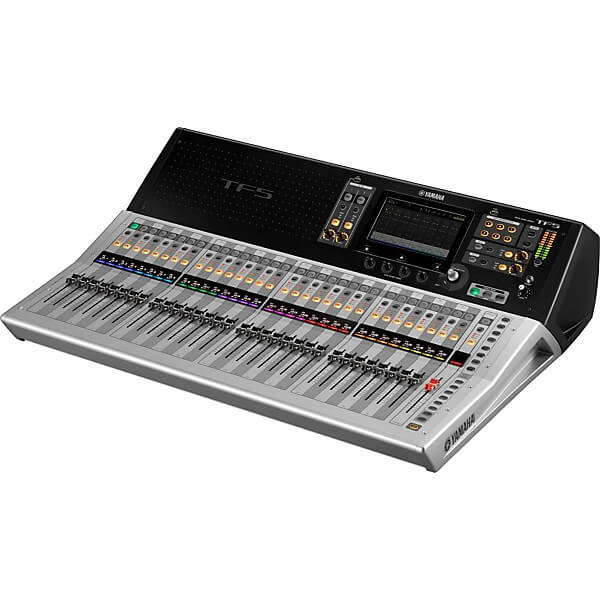

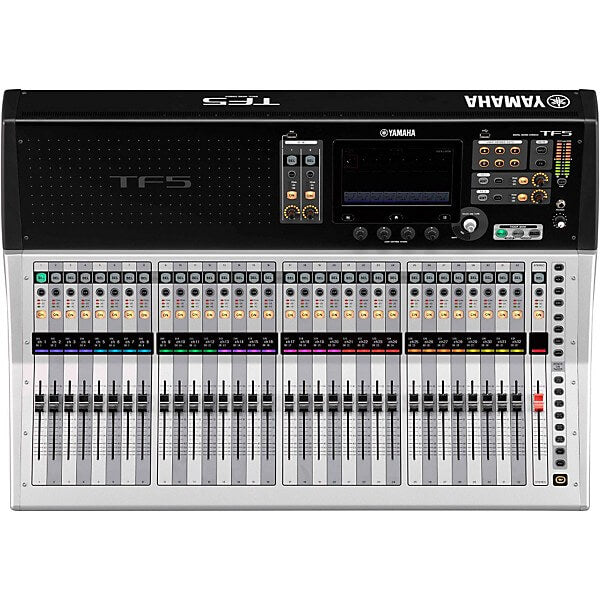

Yamaha TF5 32-Channel Digital Mixing Console for Live Sound

The Yamaha TF5 is a state-of-the-art 32-channel digital mixing console designed for live sound applications, offering unparalleled sonic control and workflow efficiency. Featuring an intuitive 7-inch touchscreen interface and robust physical controls, the TF5 allows for quick navigation and precise adjustments. Loaded with high-quality D-Pre mic preamps and powerful onboard effects, this console is perfect for both seasoned professionals and newcomers alike.

Features

• 32 Channels: Offers extensive mixing capabilities with 32 analog XLR/TRS combo mic/line inputs.
• Intuitive Touchscreen: A 7-inch touchscreen with swipe and tap gestures for easy navigation.
• User-Definable Knobs: Four customizable knobs for on-the-fly control of compressor, EQ, and other settings.
• High-Quality Preamps: Equipped with Yamaha's acclaimed D-Pre mic preamps for clean and natural sound.
• Powerful Effects Processors: Eight onboard effects processors for reverb, delay, compression, and EQ.
• Practical Presets: Comes with presets developed by engineers for quick setup of vocals, drums, guitars, and more.
• Snapshot Memory: Automation feature allowing for easy recall of settings for different parts of a show.
• Rugged Portability: Weighs only 44 lbs, making it easy to transport to gigs of any size.
• Expandable Connectivity: Includes an expansion slot for optional Dante networking capabilities.

Specifications

• Analog Inputs: 32 (XLR/TRS combo)

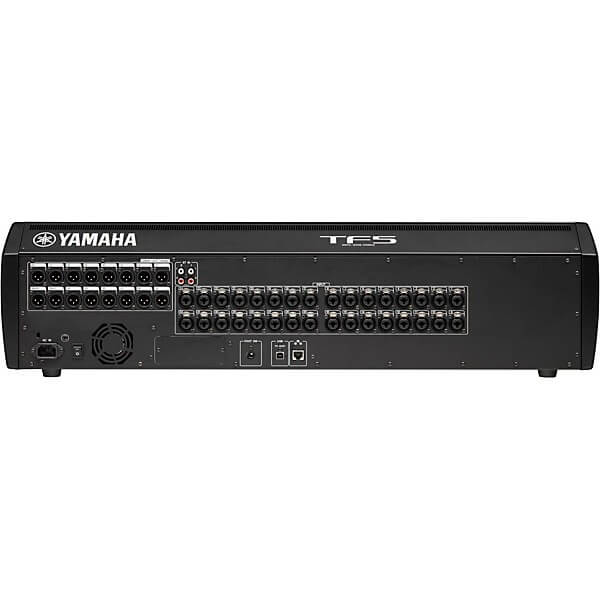

• Analog Outputs: 16 XLR outputs + 2 RCA stereo outputs
• Aux Outputs: 14 (8 mono + 6 stereo)
• USB Connectivity: 34 x 34 digital record/playback channels via USB 2.0
• Weight: 44 lb (approximately 19.96 kg)
• Dimensions: Width 34.1" (866 mm), Height 8.9" (226 mm), Depth 23.6" (600 mm)
• Fader Type: 100 mm motorized faders
• Bundled Software: Cubase AI
