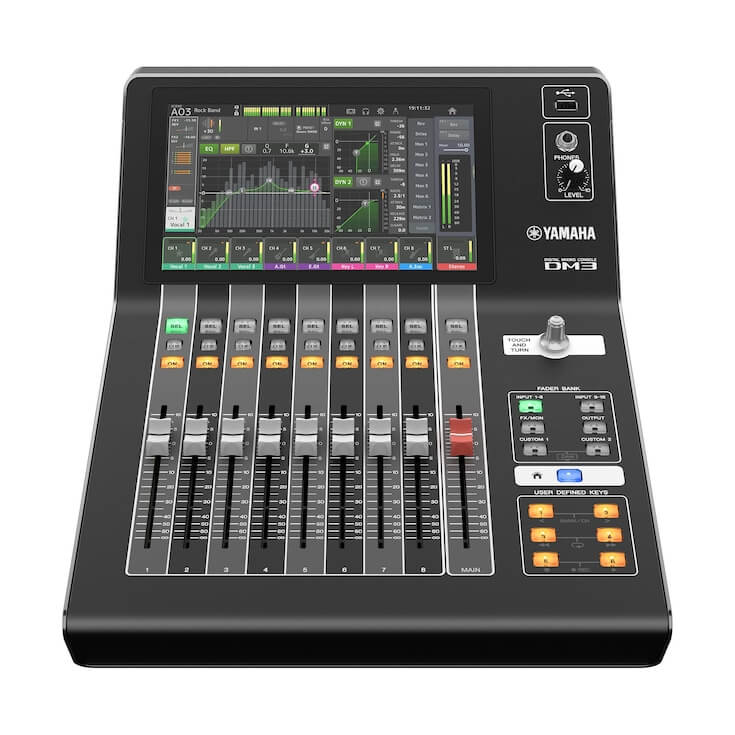

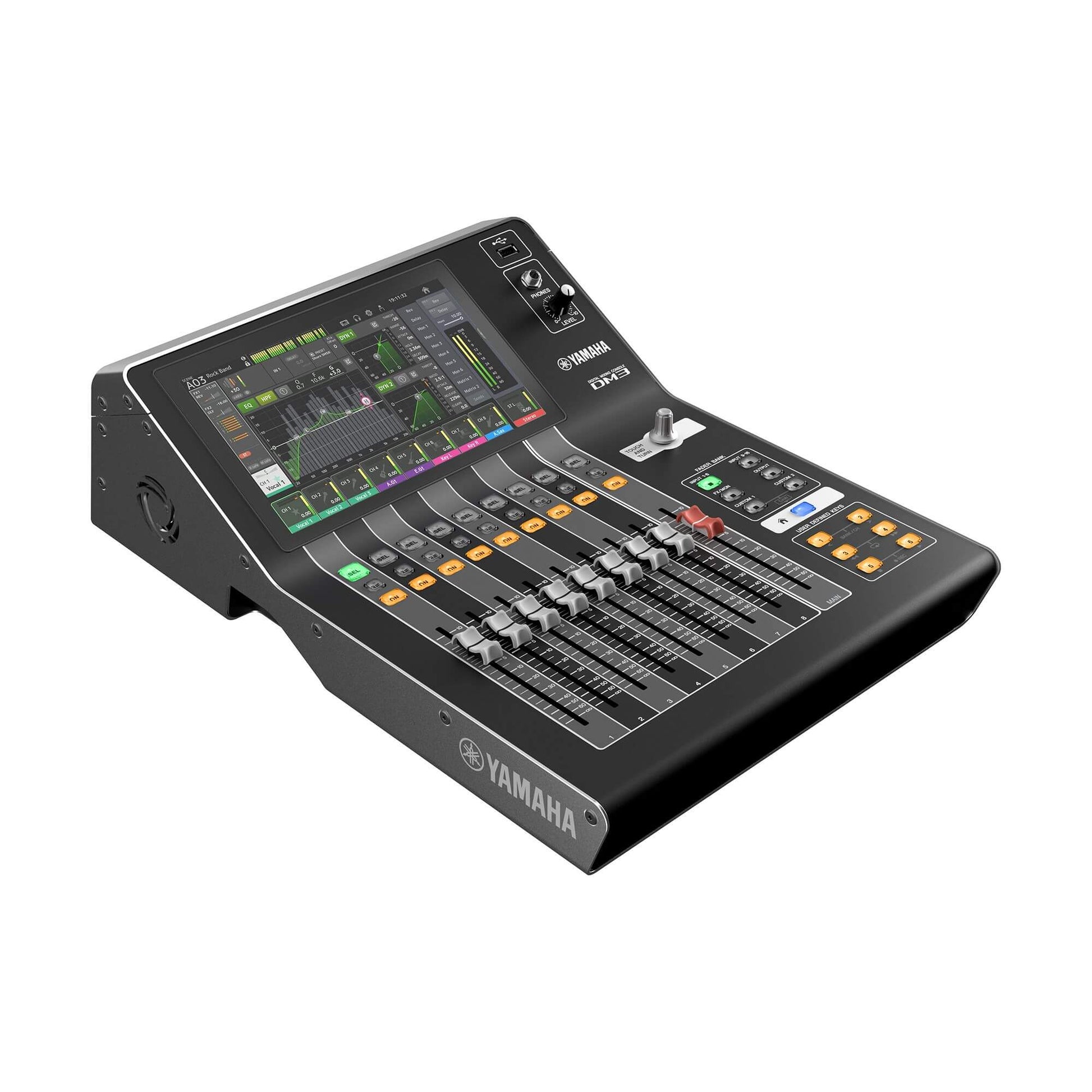

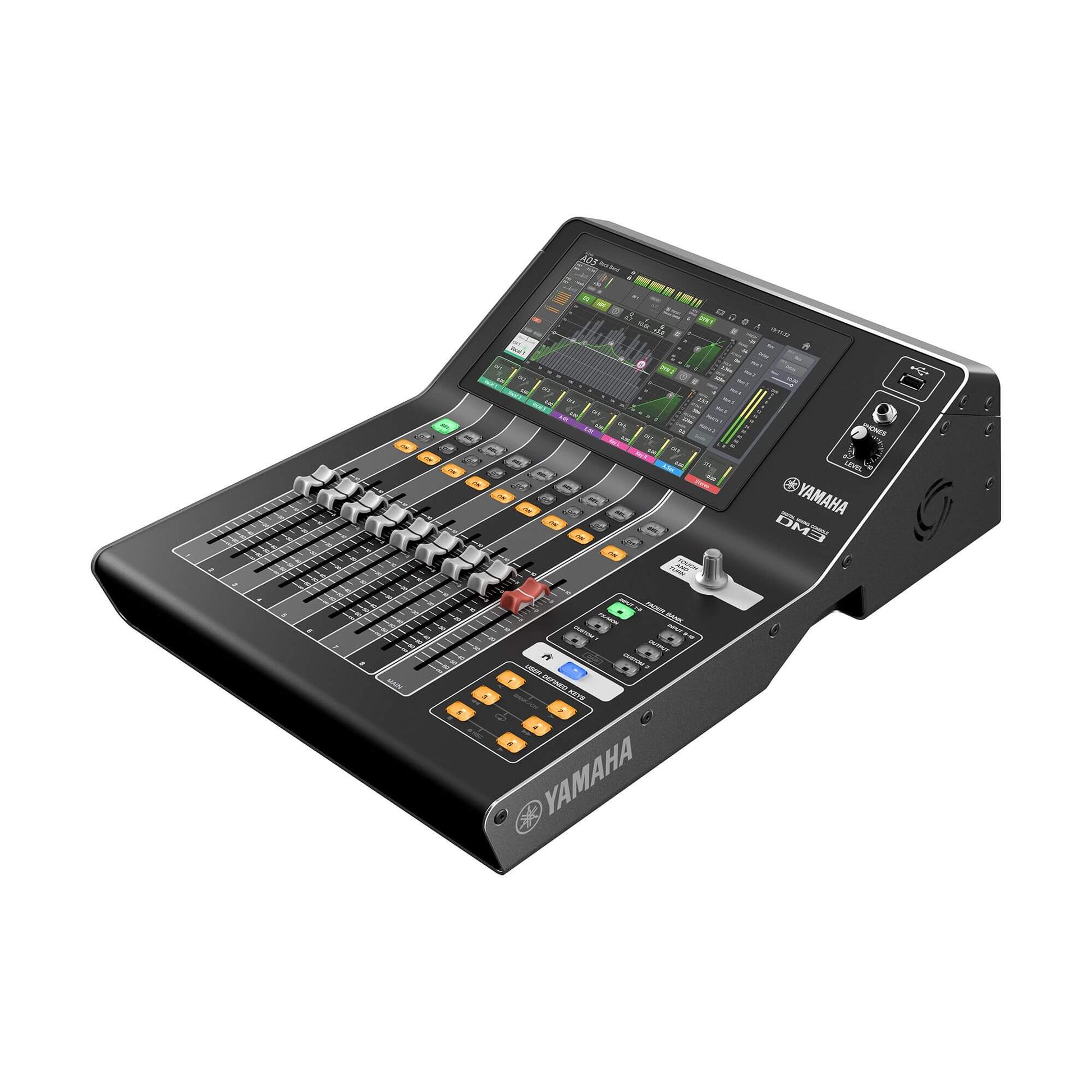

The YAMAHA DM3-D is a compact 22-channel digital mixing console designed for professional audio performance. Equipped with Dante technology, it offers unparalleled sound quality and versatility for live sound, streaming, and recording applications. Its intuitive interface and lightweight construction make it ideal for touring and studio use.

Features

• Dante Compatibility: Fully compatible with Dante technology for fast and easy setup with multiple devices.
• 22 Input Channels: Features 16 mono inputs, 1 stereo input, and 2 FX return channels for versatile mixing.
• 9-inch Multi-Touch Screen: Provides an intuitive user interface for easy navigation and control.
• Professional Effects: Includes 18 high-quality effects and GEQ on Mix 1-6 and stereo channels to enhance sound creativity.
• QuickPro Presets: Over 200 presets for quick setup tailored to various microphones and instruments.
• USB Connectivity: Allows for multitrack recording and simple 2-track recording via USB memory stick.
• Lightweight Design: Weighs only 14.3 lbs (6.5 kg) for supreme portability without sacrificing durability.

Specifications

• Sampling Rate: 48kHz / 96kHz

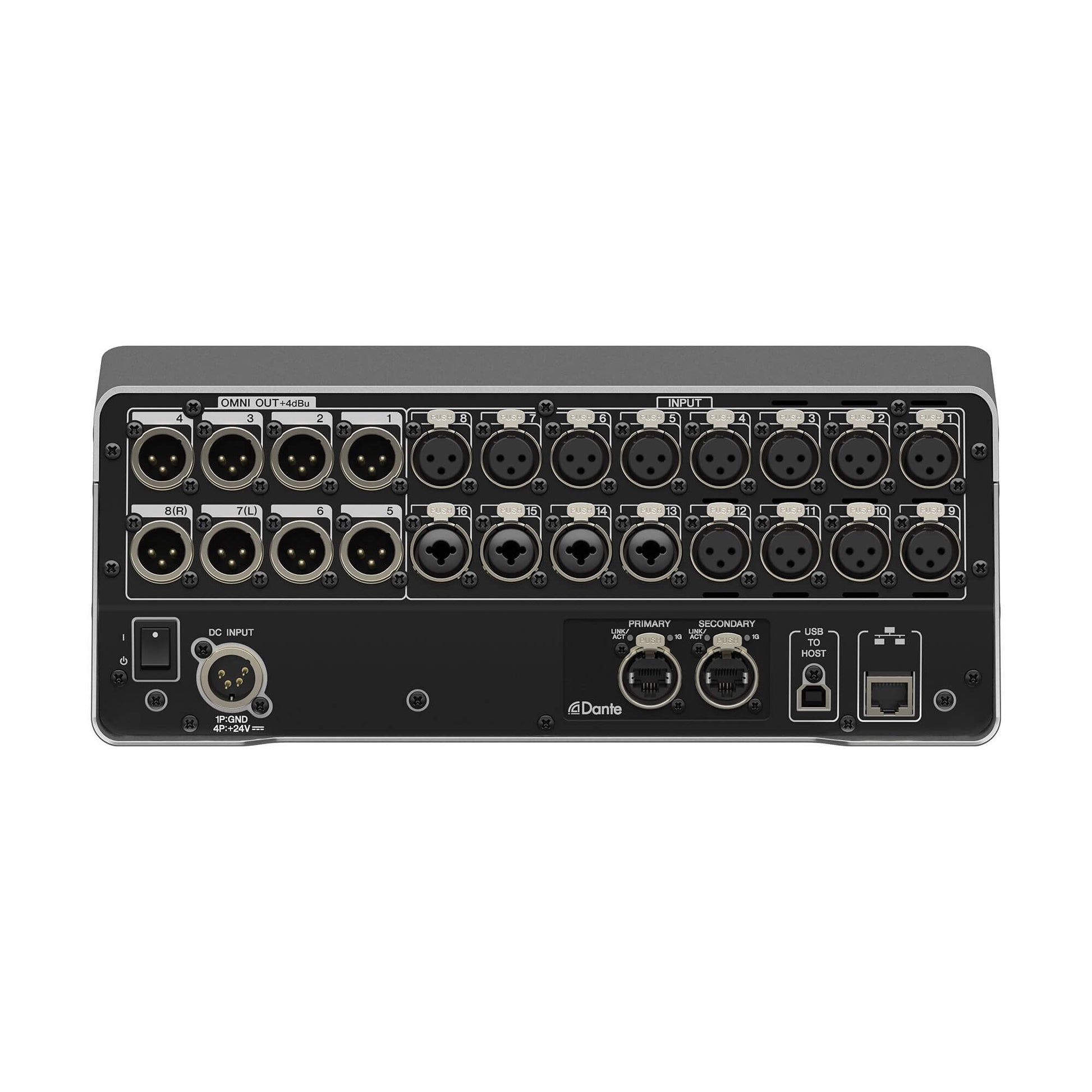

• Local I/O: 16 Mic/Line inputs (12 XLR + 4 XLR/TRS combo) and 8 XLR outputs
• Dante I/O: 16 inputs and 16 outputs
• USB I/O: 18 inputs and 18 outputs
• Bus Configuration: 1 Stereo, 6 Mix, 2 FX, 2 Matrix
• Dimensions: 320 mm x 140 mm x 455 mm
• Net Weight: 14.3 lbs (6.5 kg)
