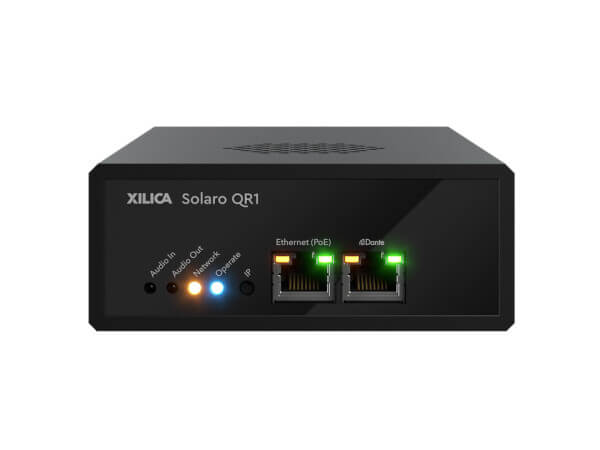

Xilica Solaro QR1: 4x4 Dante DSP, 8 I/O slots

The Xilica Solaro QR1 is a compact, powerful digital signal processor designed for collaboration and conferencing. It features onboard 4x4 Dante audio networking, eight user-configurable I/O card slots, and PoE power, making it perfect for modern meeting rooms and classrooms. With the integrated HearClear AEC technology, it ensures crystal-clear audio during conversations. The QR1 supports a wide range of audio formats and can be easily controlled via Ethernet, with Lua scripting capabilities for advanced customization.

Features

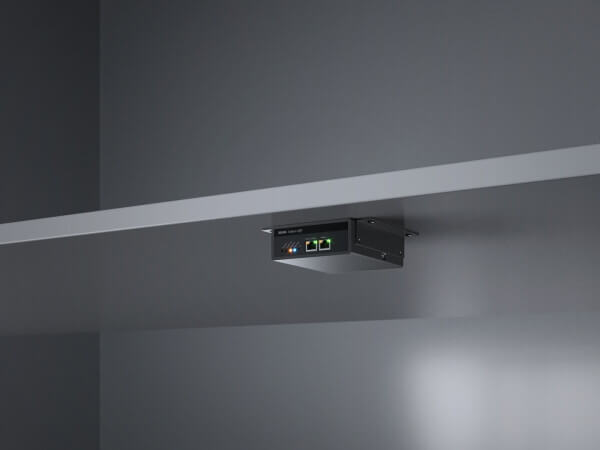

• Compact Design: Micro-format, quarter-rack chassis allows for discreet installation under tables or behind displays.

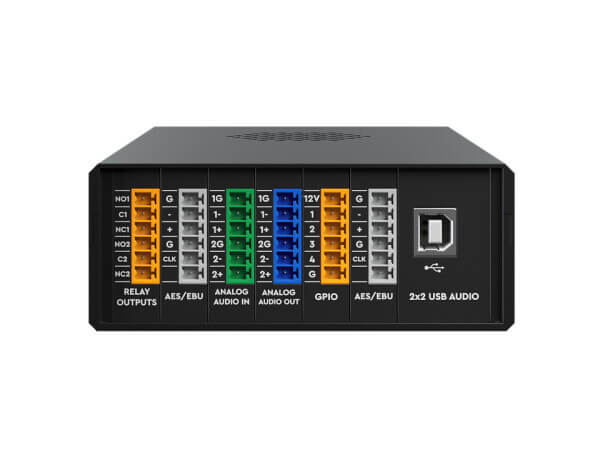

• Flexible I/O Configuration: Supports up to eight user-configurable I/O card slots for tailored audio solutions.
• Dante Networking: Built-in 4x4 Dante audio networking facilitates seamless integration with IP-based audio products.
• HearClear AEC: License-activated acoustic echo cancellation for enhanced audio clarity in conferencing.
• Integrated Control Engine: Enables control of third-party products and systems via Ethernet with Lua scripting capabilities.
• Power over Ethernet: Simplifies installation with PoE support, eliminating the need for additional power sources.

Specifications

• Dimensions (HWD): 43 x 108 x 152mm
• Weight: 2.2 lbs (1 kg)
• Power Consumption: <60W
• Audio Networking: 4x4 bi-directional, AES67-compliant Dante
• Acoustic Echo Cancellation: Requires HearClear™ license; 250ms latency at eight channels, 100ms at 16 channels
• Dynamic Range: 110dB, unweighted
• Sampling Rate: 48kHz
• Processor Type: 40-bit floating point
• Compliance: CE, FCC Part 15B, RoHS, REACH
• Warranty: Xilica Five Year Limited Warranty
