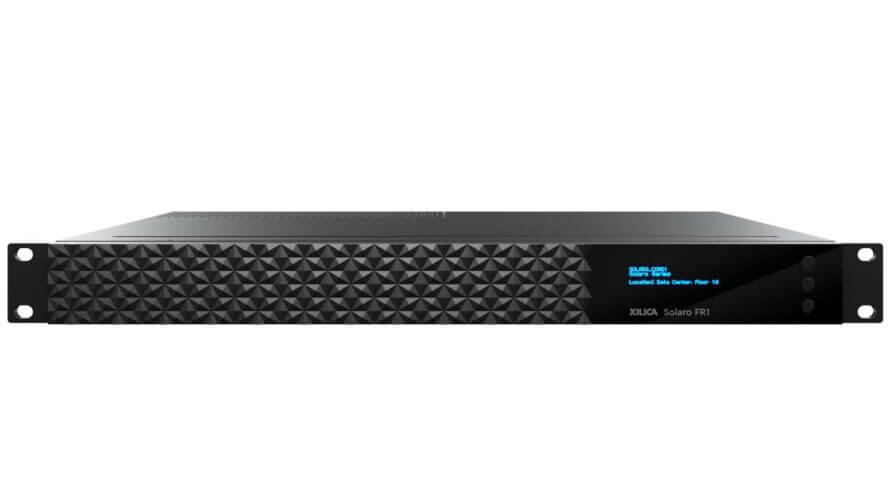

Xilica Solaro FR1: 64x64 Dante DSP, Dual NIC, Modular I

The Xilica Solaro FR1 is a powerful 1U digital signal processor designed for modern collaboration and conferencing environments. With 64x64 bi-directional Dante audio networking capabilities, 16 user-configurable card slots, and an integrated Lua scripting engine, it delivers exceptional audio quality and flexibility. The optional HearClear AEC technology ensures crystal-clear communication by eliminating echo and background noise, making it the ideal choice for enterprise, education, and government applications.

Features

• 64x64 Dante Networking: Supports high-channel count audio routing over standard CatX networks without proprietary switches.
• Modular I/O Functionality: 16 user-configurable card slots allow for a tailored setup with various I/O options including analog audio, USB, and GPIO.
• HearClear AEC: Optional license for advanced acoustic echo cancellation technology that enhances conferencing experiences.
• Lua Scripting Engine: Enables custom control and automation without additional fees, allowing for tailored solutions.

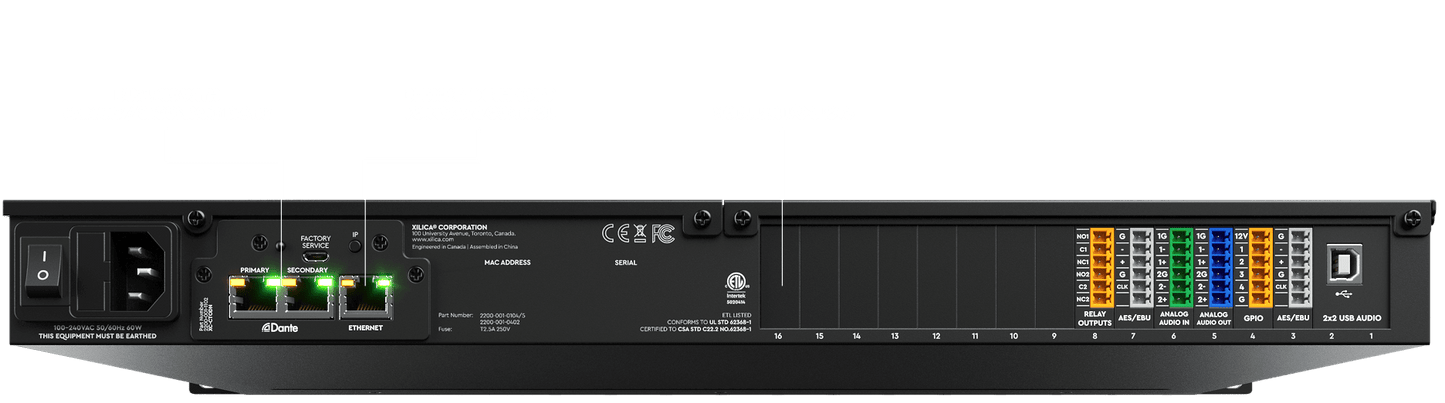

• Dual NIC Configuration: Provides physical separation of data and audio networks, enhancing security and reliability.
• Compact Rack-Mountable Design: Fits into standard 19-inch racks, occupying only 1U of space.

Specifications

• THD+N: 0.002% (1kHz @ +4dBu)
• Dynamic Range: 110dB, unweighted
• Sampling Rate: 48kHz
• Propagation Delay: 4ms
• Power Consumption: <60W
• Dimensions: Height 44mm, Width 483mm, Depth 305mm
• Weight: 5kg
• Operating Temperature: 0–40°C
