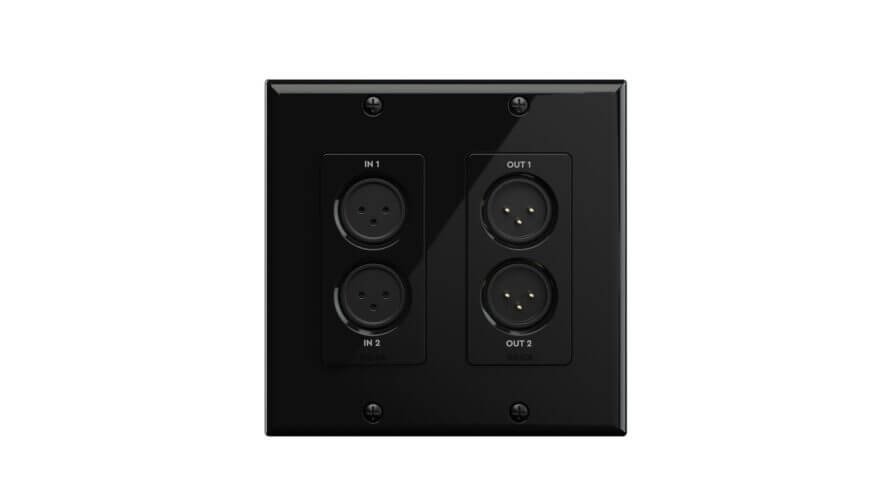

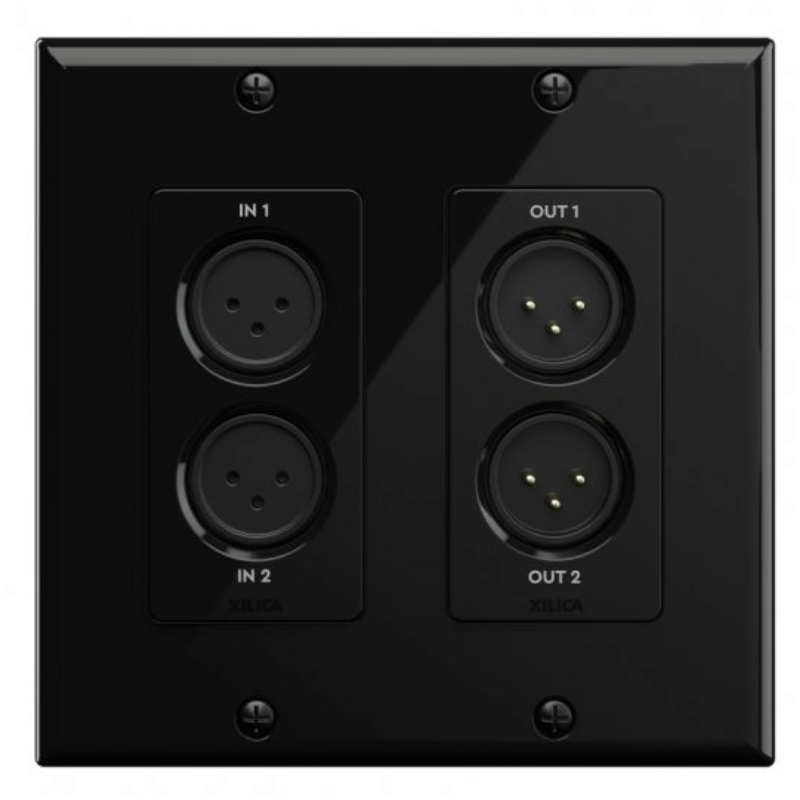

Xilica Neutrik XLR 2x2 Dante In-Wall Module for EU/

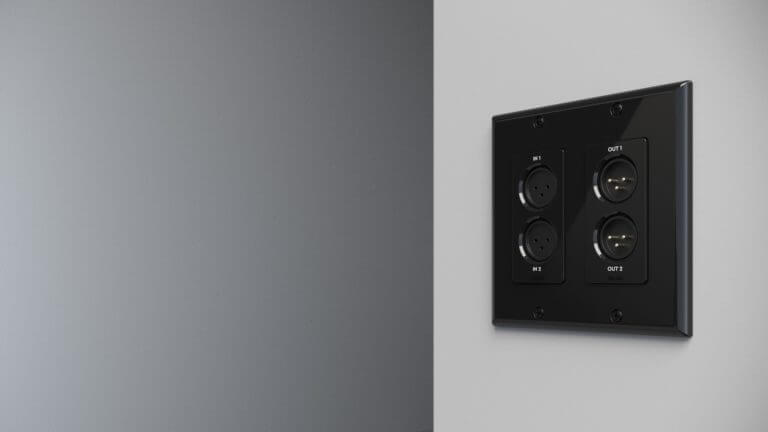

The Xilica Neutrik XLR 2x2 to Dante In-Wall Module is a versatile audio networking solution designed for seamless integration into both single-gang EU/UK installations and dual-gang US electrical boxes. This module enables the connection of analog audio products to a networked AV system, leveraging Dante audio-over-IP technology for centralized management and control. With its compact design and easy installation via a single CatX cable for both power and data, it is ideal for corporate, educational, and governmental applications.

Features

• Dante Audio-over-IP Technology: Enables high-quality audio transmission and centralized management.
• Dual-Gang Compatibility: Suitable for both EU/UK single-gang and US dual-gang electrical boxes.
• Single CatX Cable Installation: Simplifies setup by using one cable for both power and data.
• Mic/Line Switching: Offers flexibility with software-selectable input types.
• 48V Phantom Power: Provides power for condenser microphones, adjustable via software.

Specifications

• Power Consumption: 5W maximum
• Operating Temperature: 32-104°F (0-40°C)
• Audio Networking: Dante™ with AES67 compliance
• Input Type(s): 2 x Neutrik XLR (balanced), Mic/Line level (software-selectable)
• Output Type(s): 2 x Neutrik XLR (balanced), Mic/Line level (software-selectable)
• Audio Gain: Up to +45dB in 5dB steps (input), 0dB to -60dB in 1dB increments (output)
• Sampling Rates: 44.1 kHz, 48 kHz
• Humidity: 0–98%, non-condensing
• Altitude: Up to 6,600 feet (0–2000 Meters) MSL
• Dimensions (HxWxD): 4.2" x 3.5" x 2.0" (106.7 x 88.9 x 50.8mm)
• Weight: 0.4 lbs / 0.2 kg
• Compliance: FCC Part 15B, CE, RoHS Directive, WEEE
• Warranty: Xilica Three Year Limited Warranty
• Dimensions: 107 x 89 x 51
