Xilica IP Wall Control: Rotary Encoder, OLED, PoE, Decora Compatible

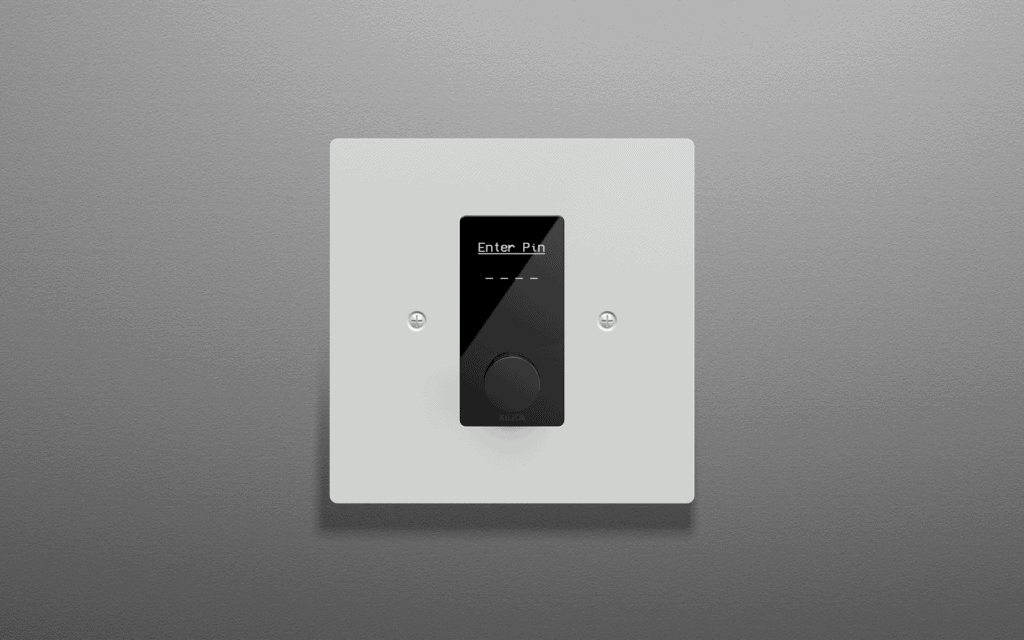

The Xilica Designer IP-Based Wall Control is a sophisticated and user-friendly solution designed for managing audio, video, lighting, and building infrastructure in various environments such as classrooms and commercial spaces. Featuring a sleek, minimalist design, this wall controller integrates a high-contrast OLED display and a unique retractable rotary encoder, allowing for unobtrusive installation into any standard Decora single-gang cut-out. With Power-over-Ethernet (PoE) capabilities, it simplifies installation and reduces clutter by requiring only a single CatX cable for both power and data. The device is programmed through Xilica Designer software, offering no-code, drag-and-drop configuration, making it accessible for users of all skill levels.

Features

• IP-Based Control: Seamlessly manage audio, video, lighting, and infrastructure from a single interface.
• Sleek Design: Blends unobtrusively into any environment with its minimalist aesthetic.
• Retractable Rotary Encoder: Provides precise control while maintaining a low profile.
• Configurable OLED Display: 1.5-inch high-contrast display capable of showing icons and non-Western characters.
• Easy Installation: Compatible with standard US single-gang junction boxes and powered via PoE.
• No-Code Programming: Quickly set up and configure using Xilica Designer software with drag-and-drop functionality.
• Secure Access: Optional PIN-based protection for added security in public areas.
• Durable Touch Buttons: Capacitive touch buttons enhance durability and hygiene.

Specifications

• Display: 1.5" (38.1mm) diagonal high-contrast OLED, 128 x 128 resolution
• Power-over-Ethernet: IEEE 802.3af, class 0
• Power Consumption: 5W
• Connectors: (1) Ethernet RJ45 with indicator lights
• Operating Temperature: 32-104°F (0–40°C)
• Humidity: 0-98%, non-condensing
• Altitude: 0-6,600 feet (0–2000 Meters) MSL
• Dimensions: 103 x 45 x 50mm
• Weight: 0.4 lbs (0.2 kg)
• Color: Black gloss in Pantone C
• Compliance: CE, FCC Part 15B, Industry Canada ICES-003:7, RoHS
• Warranty: Xilica Three Year Limited Warranty
