Xilica DSP Core: 4x4 Dante, 8 I/O slots, PoE

The Xilica Micro-Format DSP Core is a versatile digital signal processor designed for modern collaboration and conferencing needs. Featuring onboard 4x4 Dante audio networking, eight configurable I/O card slots, and Power over Ethernet (PoE) capabilities, this DSP core ensures seamless integration into any AV system. With its advanced Lua scripting engine for custom control solutions and optional HearClear AEC for superior audio clarity, the Xilica DSP Core is ideal for enhancing communication in meeting rooms and classrooms.

Features

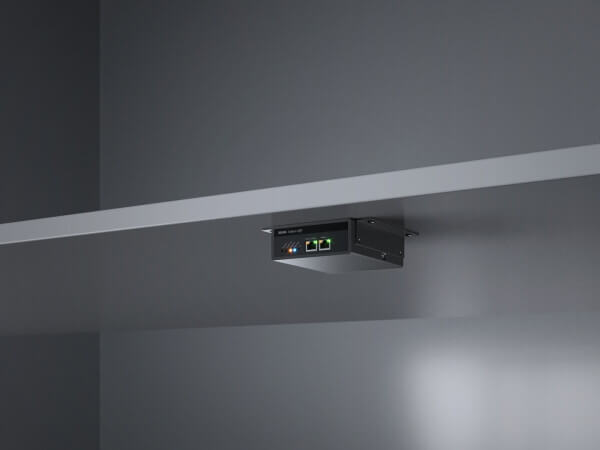

• Micro-Format Design: Compact quarter-rack chassis for easy installation behind displays or under tables.
• 4x4 Dante Networking: Built-in audio networking capabilities for seamless integration into existing systems.
• Eight Configurable I/O Card Slots: Flexibility to match specific application requirements with various card types.
• Power over Ethernet: Simplifies installation by eliminating the need for separate power cables.
• Lua Scripting Engine: Enables custom control solutions for advanced system integration.
• Optional HearClear AEC: Software-activated acoustic echo cancellation for clear audio during calls.
• Integrated Control Engine: Allows for control of third-party products over Ethernet.
• Compatibility: Works with popular soft-codec platforms like Microsoft Teams, Zoom, and Cisco WebEx.

Specifications

• Dimensions: 43 x 108 x 152mm
• Weight: 11 lbs (5 kg)
• Power Requirements: PoE (IEEE 802.3af) or +90-240 VAC (50-60Hz) via internal power supply
• Audio Processing: 40-bit floating point with 32-bit A/D-D/A converters
• Sampling Rate: Up to 48kHz
• Dynamic Range: 110dB, unweighted
• THD+N: 0.002% (1kHz @ +4dBu)
• Propagation Delay: 4ms
• Operating Temperature: 32-104°F (0-40°C)
• Humidity: 0-98%, non-condensing
• Compliance: CE, FCC Part 15B, RoHS, REACH
• Warranty: Xilica Five Year Limited Warranty
