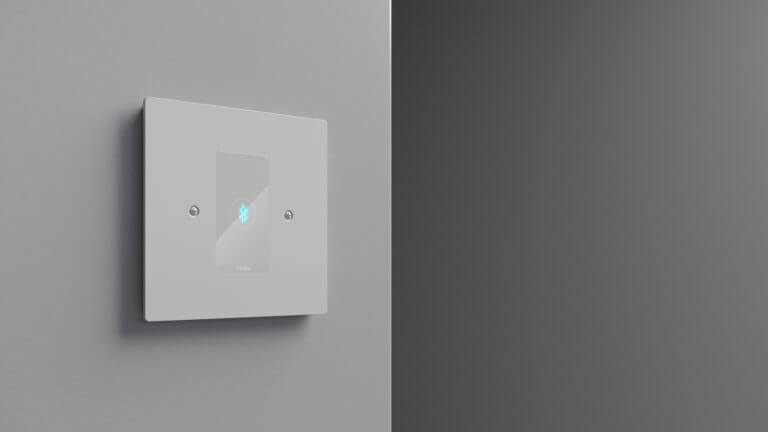

Xilica Bluetooth 5.0 Dante Module - PoE In-Wall, White Faceplate

The Xilica Bluetooth 5.0 to Dante Module is a cutting-edge solution designed to integrate personal devices into your AV system seamlessly. This module extends the capabilities of your networked AV system to BYOD devices, allowing smartphones, tablets, and laptops to connect effortlessly. It features Bluetooth 5.0 technology for superior range and clarity, making it ideal for conferencing environments. The module installs easily into a standard single-gang EU/UK wall box using a single Cat5/6 cable for both power and data. With advanced pairing options, customizable device naming, and robust security features, the Xilica Bluetooth module is perfect for enterprise environments.

Features

• Bluetooth 5.0 Class 2 Technology: Provides extended range and exceptional audio quality for personal device connectivity.
• Seamless Integration: Easily connects smartphones, iPads, and laptops to the in-room AV system.
• Power-over-Ethernet (PoE): Simplifies installation with a single CatX cable for both power and data.
• Optimized for Conferencing: Supports two-way audio with advanced noise reduction and echo cancellation technologies.
• Remote Management: Control connectivity state through XTouch touchscreens and third-party systems like Crestron and AMX.
• Configurable Functionality: Features priority pairing and auto-disconnection options to enhance user experience.

Specifications

• Power Consumption: 5W maximum
• Power-over-Ethernet: IEEE 802.3af, Class 0
• Operating Temperature: 32-104°F (0-40°C)
• Audio Networking: Dante™ with AES67 compliance
• Bluetooth Version: 5.0, Class 2
• Supported Profiles: Handsfree 1.6 (HFP), Headset 1.2 (HSP), Advanced Audio Distribution 1.3 (A2DP)
• Dimensions: 115 mm x 115 mm x 50 mm
• Weight: 0.2 kg
• Mounting: Installs into standard EU/UK single-gang electrical box
• Compliance: CE, FCC Part 15B, RoHS, WEEE
• Warranty: Xilica Five Year Limited Warranty
