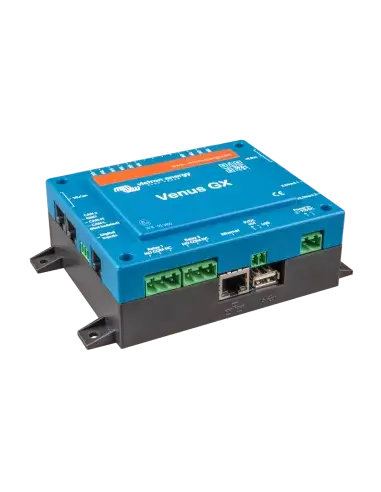

The Victron Venus GX is an advanced monitoring and control device designed for Victron Energy systems. It facilitates seamless integration and management of various Victron products, ensuring optimal performance and efficiency in your energy setup.

Features

• Wide Voltage Range: Operates with a DC power supply between 7V and 80V, providing flexibility for various applications.
• Multiple Communication Ports: Equipped with VE.Direct, VE.Can, VE.Bus, USB, and Ethernet ports for extensive connectivity options.
• WiFi Connectivity: Functions as both a WiFi access point and client, enabling remote monitoring and control via the VRM Portal.
• Customizable Genset Control: Offers automated start/stop functionality based on customizable parameters such as state of charge and voltage.
• Data Logging: Stores data internally for up to 48 hours and can log more data with an SD card or USB stick for later analysis.
• Broad Compatibility: Supports a wide range of Victron products including inverters, solar chargers, and battery monitors.

Specifications

• Power Supply Voltage Range: 8 - 70V DC
• Current Draw: 210 mA @ 12V, 110 mA @ 24V, 60 mA @ 48V
• Communication Ports: 2 VE.Direct ports (isolated), 2 VE.Can RJ45 sockets (isolated), 2 VE.Bus RJ45 sockets (isolated), 2 USB Host ports (not isolated), Ethernet RJ45 socket (isolated except shield)
• WiFi Frequencies: 2.4GHz | Range: 2.412 - 2.462GHz | Power: 88.1mW
• Tank Level Inputs: 3 configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm) resistive tank level sensors
• Operating Temperature Range: -20 to +50°C
• Outer Dimensions: 45 mm x 143 mm x 96 mm
