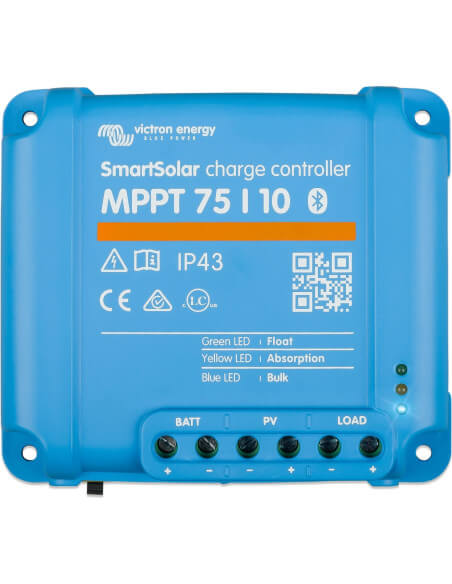

Victron Smart Solar MPPT 75/10 Charge Controller

The Victron Smart Solar MPPT 75/10 Charge Controller maximizes energy harvest from solar panels while ensuring battery health. With advanced MPPT technology, it intelligently manages charge cycles and can recover deeply discharged batteries, making it ideal for both residential and commercial solar applications.

Features

• MPPT Technology: Ultra-fast Maximum Power Point Tracking improves energy harvest by up to 30% compared to PWM controllers.
• Bluetooth Connectivity: Built-in Bluetooth allows for easy setup, monitoring, and updates via the VictronConnect app.
• Automatic Battery Voltage Detection: Supports 12/24V battery systems with auto-selection for convenience.
• Load Output Function: Prevents battery over-discharge by disconnecting loads when battery voltage drops to a preset level.
• BatteryLife Algorithm: Extends battery life by ensuring regular full recharges, even under poor weather conditions.
• Temperature Compensation: Internal sensor adjusts charging voltage based on temperature for optimal performance.
• Fully Discharged Battery Recovery: Can initiate charging from a completely discharged battery, provided the cells are not damaged.

Specifications

• Rated Charge Current: 10 A
• Max PV Open Circuit Voltage: 75 V
• Peak Efficiency: 98%
• Self-consumption: 12V: 20 mA 24V: 10 mA
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Operating Temperature: -30 to +60 °C
• Weight: 0.5 kg
• Dimensions (H x W x D): 100 x 113 x 40 mm
