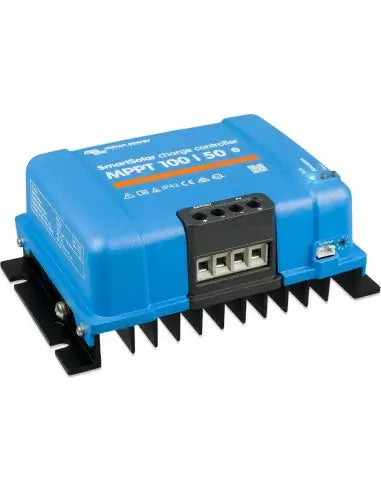

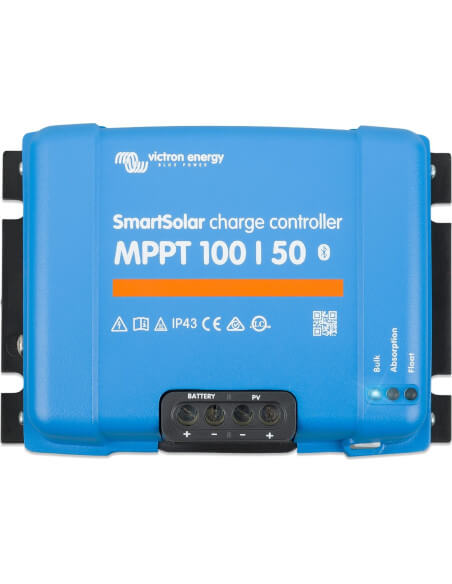

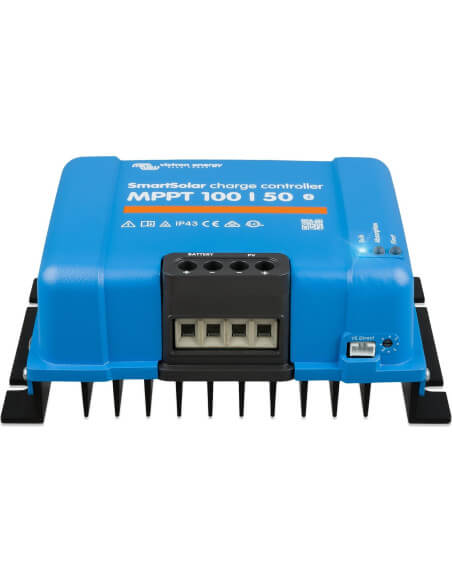

Victron Smart Solar MPPT 100/50 Charge Controller

The Victron Smart Solar MPPT 100/50 Charge Controller is designed to maximize the energy harvested from solar panels, ensuring efficient and fast charging of your batteries. With advanced MPPT technology, it adapts to changing light conditions, providing optimal performance even in partially shaded environments. This controller is equipped with Bluetooth connectivity for easy monitoring and configuration via the VictronConnect app.

Features

• Ultra Fast MPPT: Increases energy harvest by up to 30% compared to PWM controllers and 10% compared to slower MPPT controllers.
• Bluetooth Connectivity: Monitor and configure the charge controller remotely through the VictronConnect app.
• Automatic Battery Voltage Detection: Supports both 12V and 24V systems automatically.
• Comprehensive Protection: Includes over-temperature, PV short circuit, and reverse polarity protection.
• Fully Discharged Battery Recovery: Capable of charging batteries that have been discharged to zero volts.
• High Efficiency: Maximum efficiency exceeds 98%, ensuring minimal energy loss.
• Flexible Charge Algorithm: Programmable settings allow for customized charging profiles.

Specifications

• Battery Voltage: 12/24V Auto Select
• Rated Charge Current: 50A
• Nominal PV Power (12V): 700W
• Nominal PV Power (24V): 1400W
• Maximum PV Open Circuit Voltage: 100V
• Maximum Efficiency: 98%
• Self-Consumption: 12V: 30mA, 24V: 20mA
• Operating Temperature: -30 to +60 °C
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Weight: 1.3 kg
• Dimensions: H130 x W186 x D70 mm
