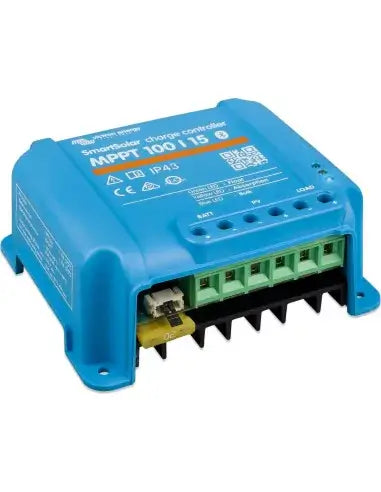

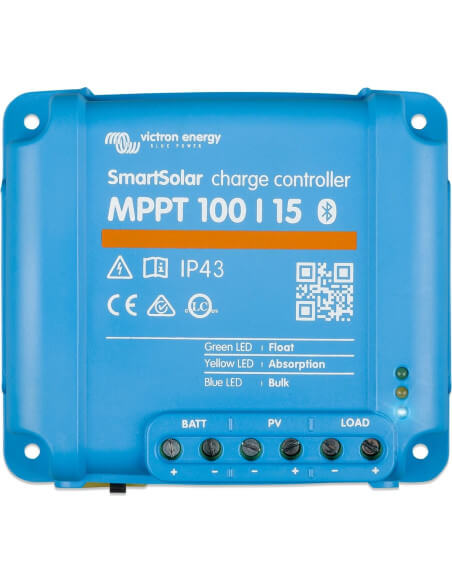

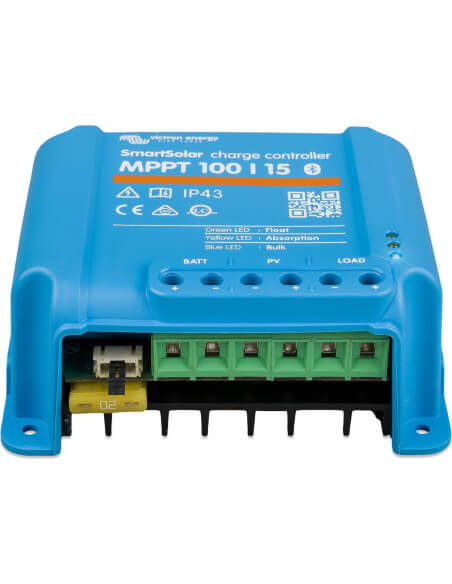

Victron Smart Solar MPPT 100/15 Charge Controller

The Victron Smart Solar MPPT 100/15 Charge Controller is designed to maximize energy harvest from solar panels, ensuring efficient charging and battery health. With advanced MPPT technology, it provides optimal performance even under varying light conditions, making it an essential component for solar energy systems.

Features

• Auto Voltage Selection: Automatically selects battery voltage (12V or 24V) for seamless operation.
• Bluetooth Connectivity: Easily monitor and configure settings via the VictronConnect app on your smartphone.
• Ultra-Fast MPPT Technology: Increases energy harvest by up to 30% compared to PWM controllers, especially in cloudy conditions.
• Battery Life Algorithm: Prevents over-discharge by intelligently managing load output, ensuring battery longevity.
• Full Discharge Recovery: Capable of recharging batteries down to zero volts, provided they are not permanently damaged.
• Remote Monitoring: Access your charge controller's data and settings from anywhere with Victron's Remote Management Portal (VRM).
• Temperature Compensation: Adjusts charging parameters based on ambient temperature for optimal battery performance.

Specifications

• Battery Voltage: 12/24V Auto Select
• Rated Charge Current: 15A
• Max PV Open Circuit Voltage: 100V
• Peak Efficiency: 98%
• Self-Consumption (Load On): 19mA (12V), 16mA (24V)
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Weight: 0.65kg
• Dimensions: 100 x 131 x 50 mm
