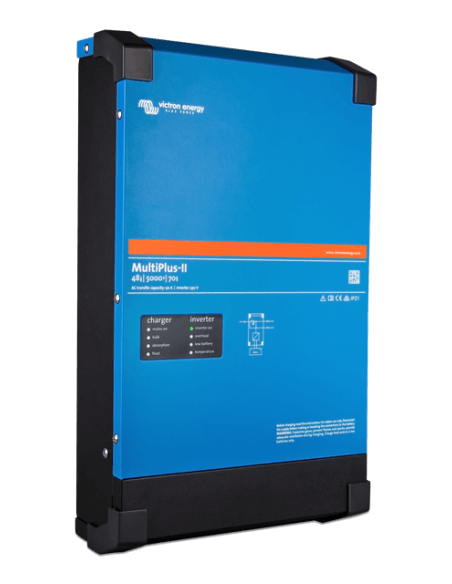

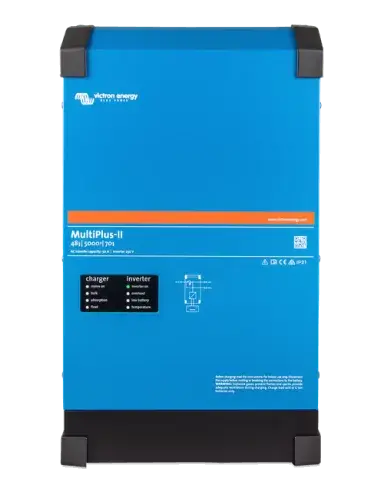

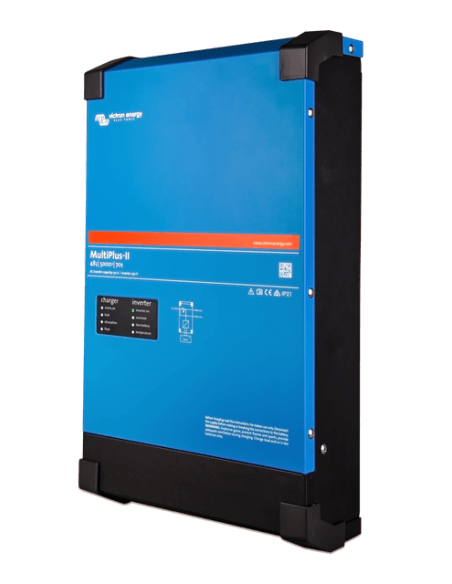

Victron MultiPlus-II 48V 5000VA Inverter

The Victron MultiPlus-II 48V 5000VA Inverter is a versatile inverter/charger designed for professional marine, yachting, vehicle, and land-based off-grid applications. It combines advanced features such as PowerAssist, PowerControl, and energy storage system (ESS) capabilities to optimize energy consumption and ensure uninterrupted power supply.

Features

• PowerAssist: Prevents overload of limited AC sources by reducing battery charging when necessary and boosting generator output with battery power.
• Dynamic ESS: Automatically switches between grid, battery, and solar energy based on live pricing, ensuring the use of the cheapest energy.
• Uninterrupted Power Supply (UPS): Seamlessly takes over supply to connected loads within 20 milliseconds during a grid failure.
• Remote Monitoring: Compatible with GX devices for local and remote monitoring and control via the free VRM app.
• Parallel Operation: Up to six units can be connected in parallel for increased power output, achieving up to 25 kW / 30 kVA with 420 Amps charging capacity.

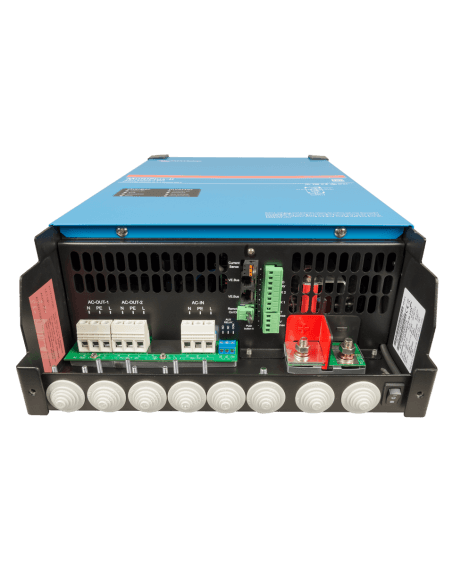

• Two AC Outputs: Main output provides uninterrupted power, while the second output is live only when AC input is available.

Specifications

• Input Voltage: 48V DC
• Continuous Output Power: 5000VA
• Peak Power: 9000W
• Maximum Efficiency: 96%
• Zero Load Power: 18W
• Maximum AC Input Current: 100A
• Operating Temperature Range: -40 to +65 °C
• Protection Category: IP22
• Weight: 30 kg
• Dimensions (HxWxD): 607 x 330 x 149 mm
