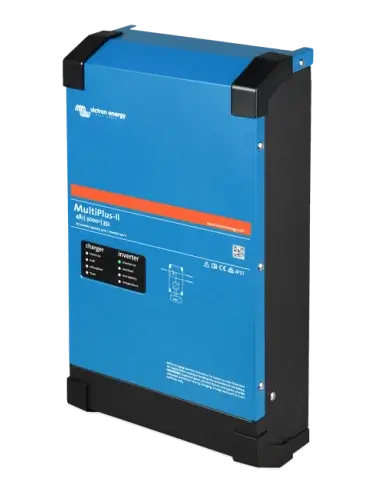

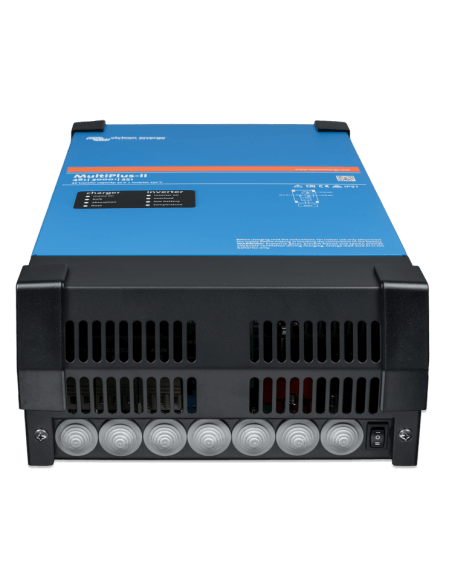

Victron MultiPlus-II 48V 3000VA Inverter

The Victron MultiPlus-II 48V 3000VA Inverter is a versatile inverter/charger designed for both off-grid and backup power applications. It features advanced PowerControl and PowerAssist functionalities, ensuring reliable power supply and efficient battery charging. With its fast transfer switch, the MultiPlus-II guarantees uninterrupted power to connected loads during grid failures.

Features

• PowerAssist: Prevents overload of limited AC sources by dynamically managing power usage.
• Fast Transfer Switch: Automatically takes over supply in less than 20 milliseconds during grid failures.
• Remote Monitoring: Compatible with GX devices for real-time monitoring and control via the Victron Remote Management (VRM) portal.
• Multi-Functional: Combines inverter and charger functionalities into a single unit, suitable for various applications including marine, mobile, and off-grid systems.
• Expandable: Supports parallel connection of up to 6 units for increased power output, ideal for larger systems.

Specifications

• Input Voltage: 48V DC
• Output Power: 3000 VA / 2400 W continuous at 25 °C
• Charger Current: 35A
• Transfer Switch Rating: 32A
• Maximum Efficiency: 95%
• Operating Temperature Range: -40 to +65 °C
• Weight: 19 kg
• Dimensions (HxWxD): 546 x 275 x 147 mm
• Protection Category: IP22

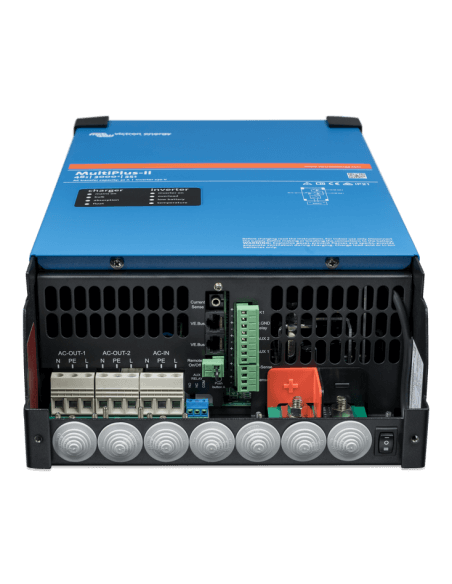

• Communication Ports: VE.Bus for parallel and three-phase operation, general purpose communication ports
