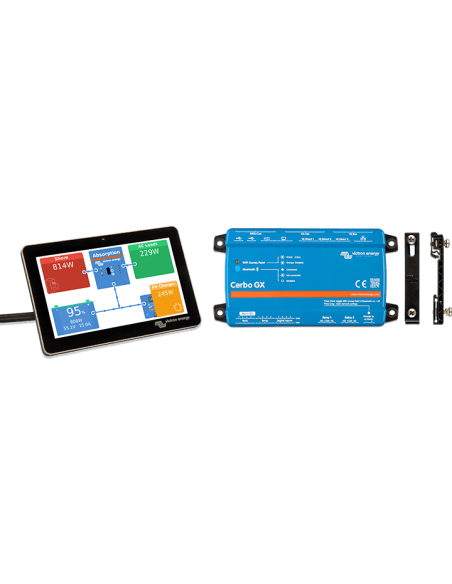

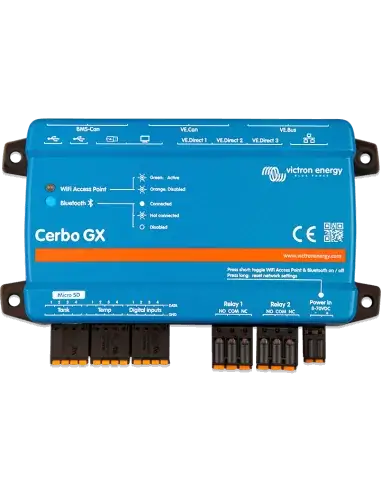

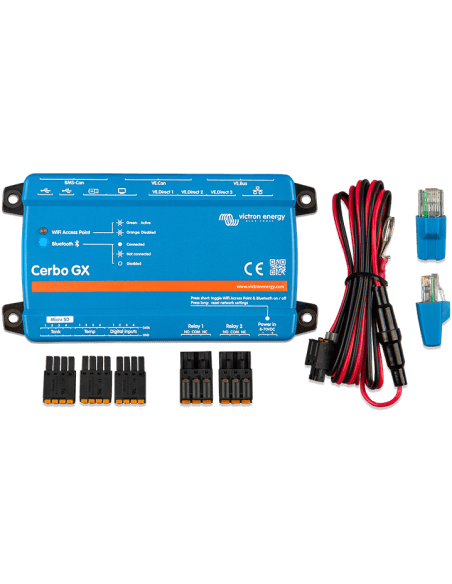

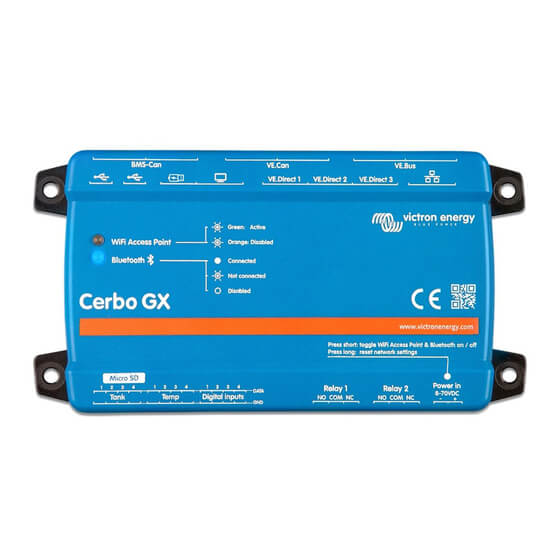

Victron Cerbo GX Control Unit

The Victron Cerbo GX Control Unit is a sophisticated communication center that allows you to monitor and control your energy system from anywhere in the world. With its advanced connectivity options, including built-in WiFi, Bluetooth, and Ethernet, it ensures optimal performance and easy access to system data.

Features

• Remote Management: Access your system via the Victron Remote Management (VRM) portal or directly through the GX Touch display and VictronConnect app.
• Multiple Connectivity Options: Equipped with built-in WiFi access point, Ethernet port, and Bluetooth for seamless integration and monitoring.
• Intuitive Design: Easy-to-use interface that allows for quick adjustments and monitoring of system parameters.
• Real-time Monitoring: Instantly check battery state of charge, power consumption, and other vital statistics.
• Simple Installation: Can be mounted on a wall or DIN rail, with straightforward connection requirements.
• Alerts and Diagnostics: Receive alerts for system issues and perform diagnostics remotely.

Specifications

• Supply Voltage: 8 – 70 VDC
• Power Draw without GX Touch: 2.8 W @ 12 V
• Power Draw with GX Touch: 3.8 W (Backlight off), 4.8 W (Backlight max) @ 12 V
• Communication Ports: 3 USB ports, HDMI, VE.Direct, Ethernet, VE.Bus, VE.Can, BMS-Can, Micro SD
• Digital Inputs: 4
• Temperature Inputs: 4
• Relay Outputs: 2 x NO/NC, DC up to 30 VDC: 6 A
• Operating Temperature Range: -20 to +50 °C
• IP Rating: IP20
• Dimensions: 78 x 154 x 48 mm
