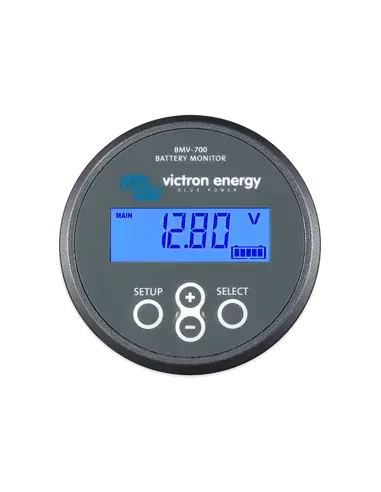

Victron BMV-700 Battery Monitor - 9-90VDC

The Victron BMV-700 is a high-precision battery monitor that provides essential data on battery performance, including state of charge, voltage, current, and historical data. Designed for use with various battery types, it ensures optimal battery management and longevity.

Features

• High Precision Monitoring: Accurately measures battery voltage and current, calculating the state of charge and time remaining.
• Bluetooth Connectivity: Optional VE.Direct Bluetooth Smart dongle allows for remote monitoring via the VictronConnect app.
• User-Friendly Interface: The head unit features a clear display with buttons for easy navigation and configuration.
• Programmable Relay: Can be configured for various applications, including alarm notifications and generator control.
• Historical Data Tracking: Keeps records of deepest discharge, average discharge, and charge/discharge cycles for performance analysis.

Specifications

• Supply Voltage Range: 6.5 - 95 VDC
• Current Draw (Backlight Off): < 4mA
• Battery Capacity Measurement: 1 - 9999Ah
• Operating Temperature Range: -40 to +50°C
• VE.Direct Communication Port: Yes
• Relay Rating: 60V / 1A normally open
• Display Diameter: 63mm (2.5 inch)
• Head Unit Protection Category: IP55
