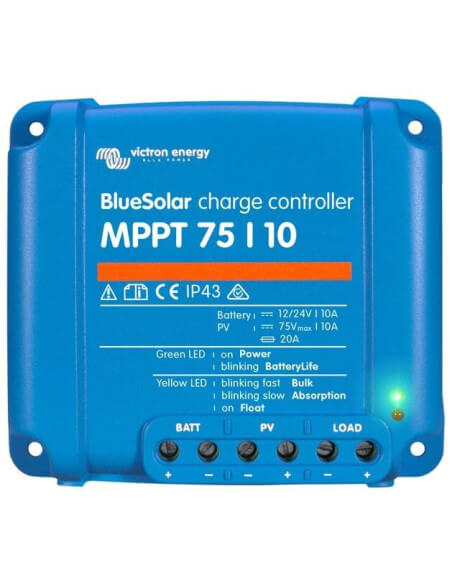

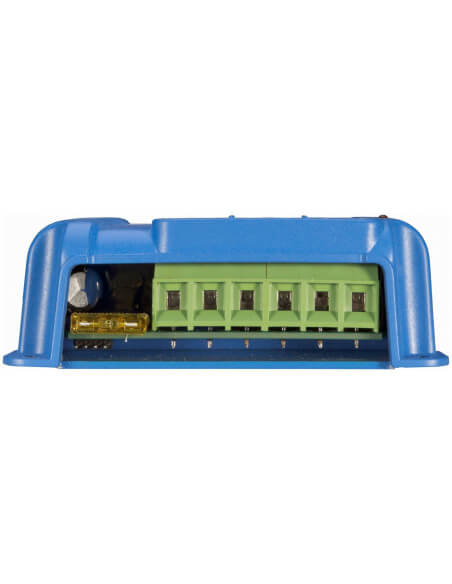

Victron Blue Solar MPPT 75/10 Charge Controller

The Victron Blue Solar MPPT 75/10 Charge Controller is a high-performance solar charge controller designed for efficient energy management. With ultra-fast Maximum Power Point Tracking (MPPT) technology, it maximizes solar energy harvest, ensuring optimal battery charging and longevity.

Features

• Ultra-Fast MPPT Technology: Increases energy harvest by up to 30% compared to PWM controllers, especially in changing light conditions.
• Automatic Battery Voltage Selection: Supports both 12V and 24V battery systems, simplifying installation.
• 10A Charge Current: Delivers efficient charging to your batteries, ensuring quick energy storage.
• 15A Automatic Load Disconnect: Protects batteries from over-discharge by disconnecting loads at a pre-set voltage.
• Programmable Battery Charge Algorithm: Allows customization for different battery types to enhance performance.
• Bluetooth Connectivity: Enables remote monitoring and control via smartphone or tablet using the VE.Direct Bluetooth Smart dongle.
• Battery Life Algorithm: Adjusts load disconnect levels to ensure batteries are fully charged regularly, extending battery lifespan.

Specifications

• Battery Voltage: 12/24V Auto Select
• Rated Charge Current: 10A
• Max PV Open Circuit Voltage: 75V
• Peak Efficiency: 98%
• Operating Temperature: -30°C to +60°C
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Weight: 0.5 kg
• Dimensions (H x W x D): 100 mm x 113 mm x 40 mm
