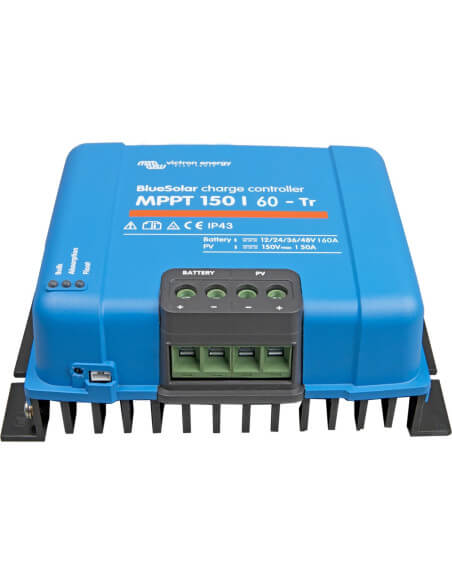

Victron Blue Solar MPPT 150/60 Charge Controller

The Victron Blue Solar MPPT 150/60 Charge Controller is an advanced solar charging solution designed for high efficiency and versatility. With its ultra-fast Maximum Power Point Tracking (MPPT) technology, it significantly enhances energy harvest, particularly in variable light conditions, making it ideal for both residential and commercial solar applications.

Features

• Ultra-Fast MPPT Technology: Improves energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers.
• Advanced Power Point Detection: Optimizes energy harvest even in partial shading conditions by locking onto the optimum maximum power point.
• High Conversion Efficiency: Achieves a maximum efficiency of over 98%, ensuring minimal energy loss.
• Flexible Charge Algorithm: Fully programmable with eight pre-programmed algorithms selectable via a rotary switch.
• Extensive Electronic Protection: Includes over-temperature protection, PV short circuit, and reverse polarity protections.
• Real-Time Data Monitoring: Compatible with Bluetooth for real-time data display options via smartphones or GX devices.

Specifications

• Battery Voltage: 12/24/48V Auto Select
• Rated Charge Current: 60A
• Maximum PV Voltage: 150V
• Nominal PV Power (12V): 860W
• Nominal PV Power (24V): 1720W
• Nominal PV Power (48V): 3440W
• Self-Consumption: 10mA
• Operating Temperature: -30 to +60 °C
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Weight: 3 kg
• Dimensions (H x W x D): 185 x 250 x 95 mm (TR models) / 215 x 250 x 95 mm (MC4 models)
