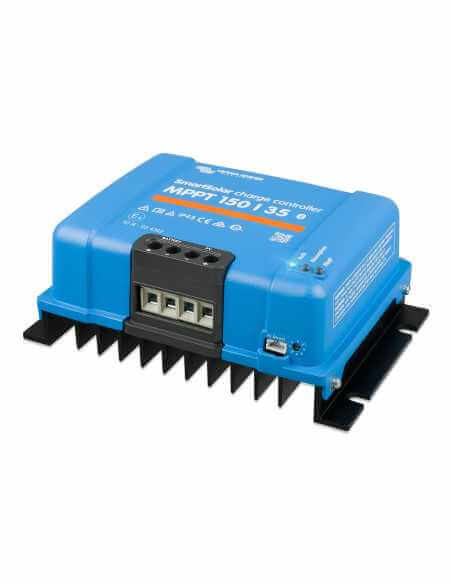

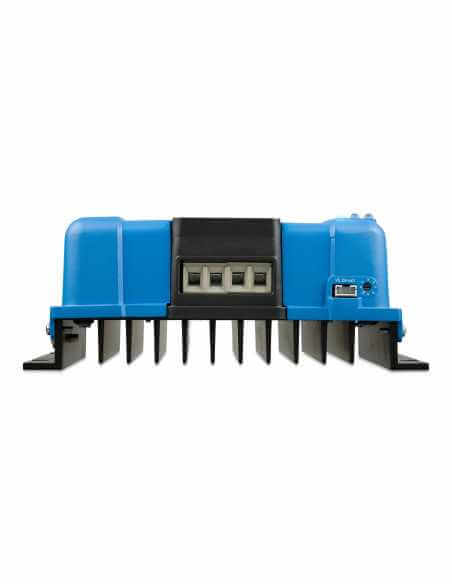

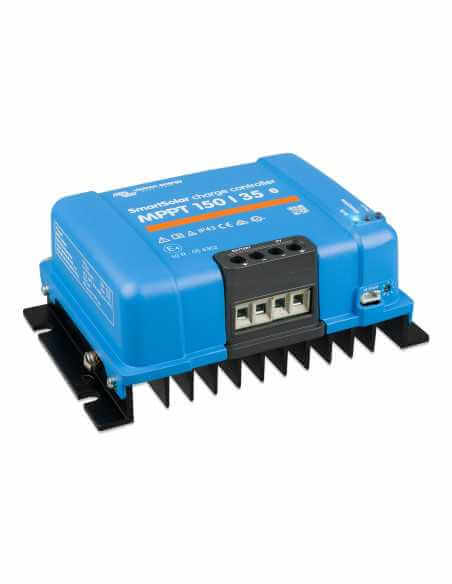

Victron Blue Solar MPPT 150/45 Charge Controller

The Victron Blue Solar MPPT 150/45 Charge Controller is designed to maximize energy harvest from solar panels, ensuring optimal charging efficiency and battery health. With advanced MPPT technology, it intelligently tracks the maximum power point, extending battery life while providing reliable performance even in challenging weather conditions.

Features

• Ultra Fast MPPT Technology: Increases energy harvest by up to 30% compared to PWM controllers, especially in partially clouded conditions.
• Outstanding Conversion Efficiency: Achieves maximum efficiency exceeding 98% without the need for a cooling fan.
• Flexible Charge Algorithm: Fully programmable with eight pre-set charging algorithms, adjustable via a rotary switch.
• Extensive Electronic Protection: Features over-temperature protection, PV short circuit protection, and reverse polarity protection.
• Real-time Data Display Options: Compatible with Color Control GX and Bluetooth-enabled devices for monitoring and control.
• Internal Temperature Sensor: Compensates for temperature variations to maintain optimal charging voltages.

Specifications

• Dimensions (h x w x d): 130 x 186 x 70 mm
• Weight: 1.25 kg
• Battery Voltage: 12 / 24 / 48V Auto Select
• Rated Charge Current: 45A
• Maximum PV Open Circuit Voltage: 150V
• Maximum PV Short Circuit Current: 50A
• Self-Consumption: 12V: 20mA, 24V: 15mA, 48V: 10mA
• Operating Temperature: -30 to +60°C (full rated output up to 40°C)
• Protection Category: IP43 (electronic components), IP22 (connection area)
