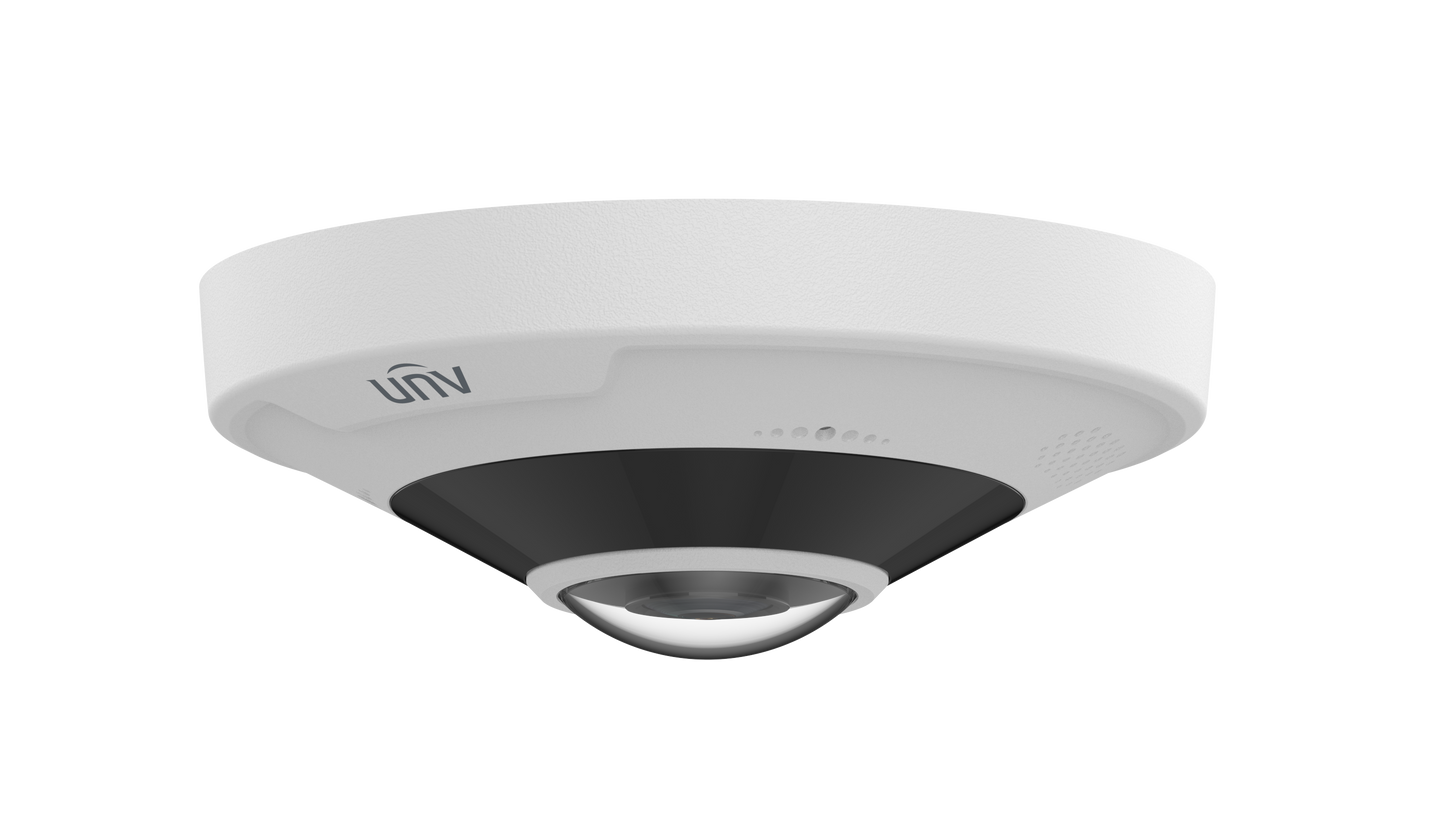

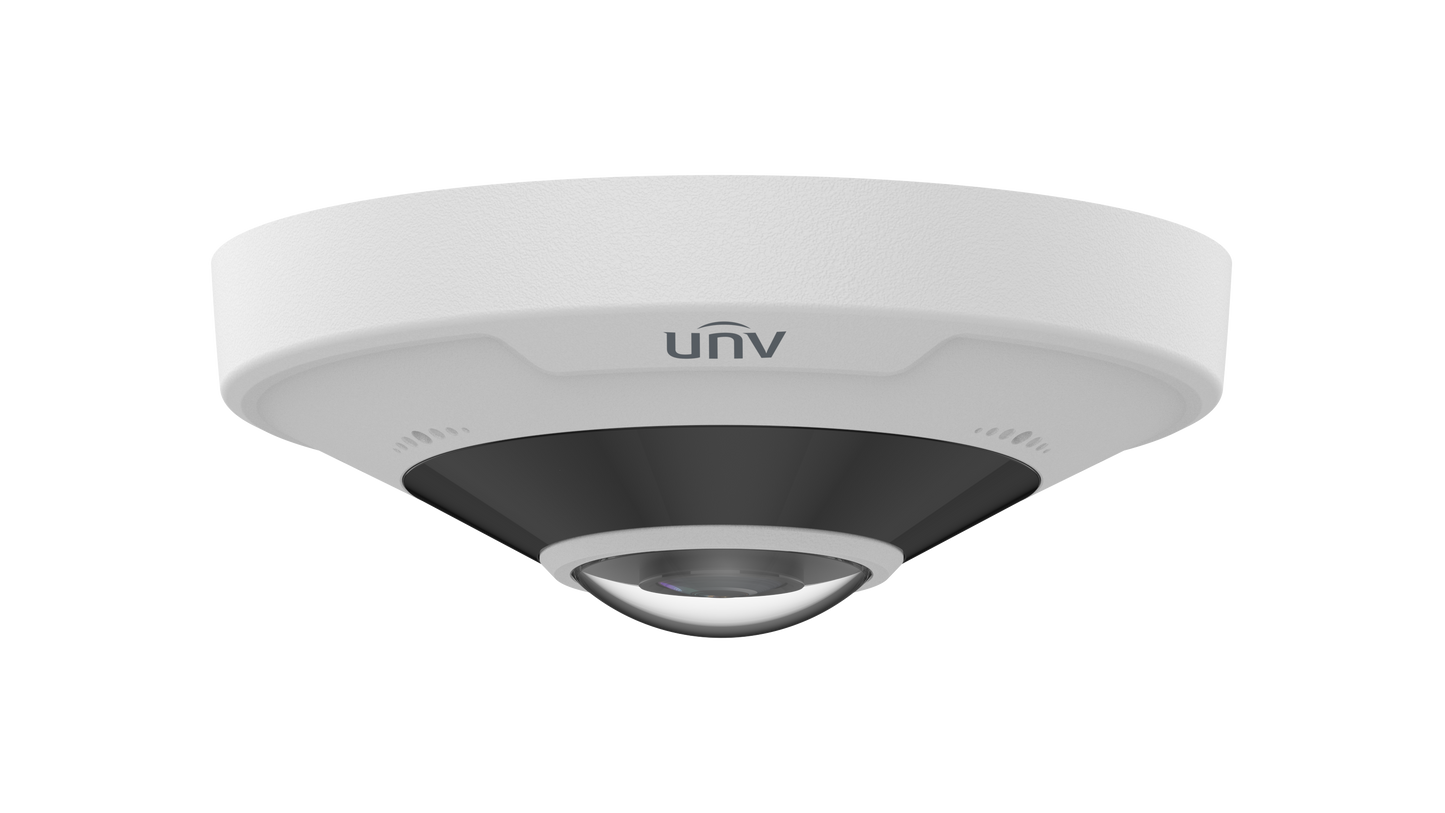

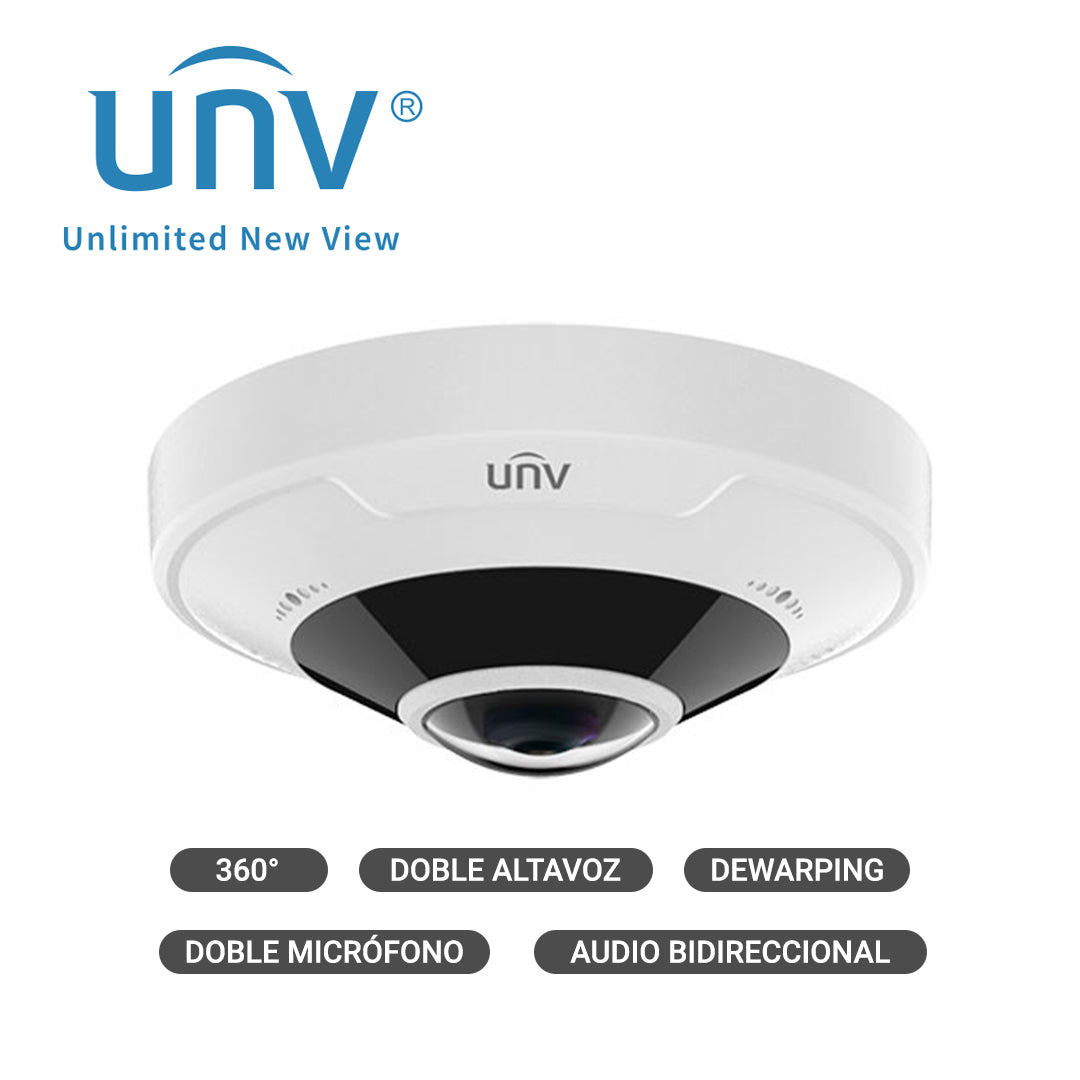

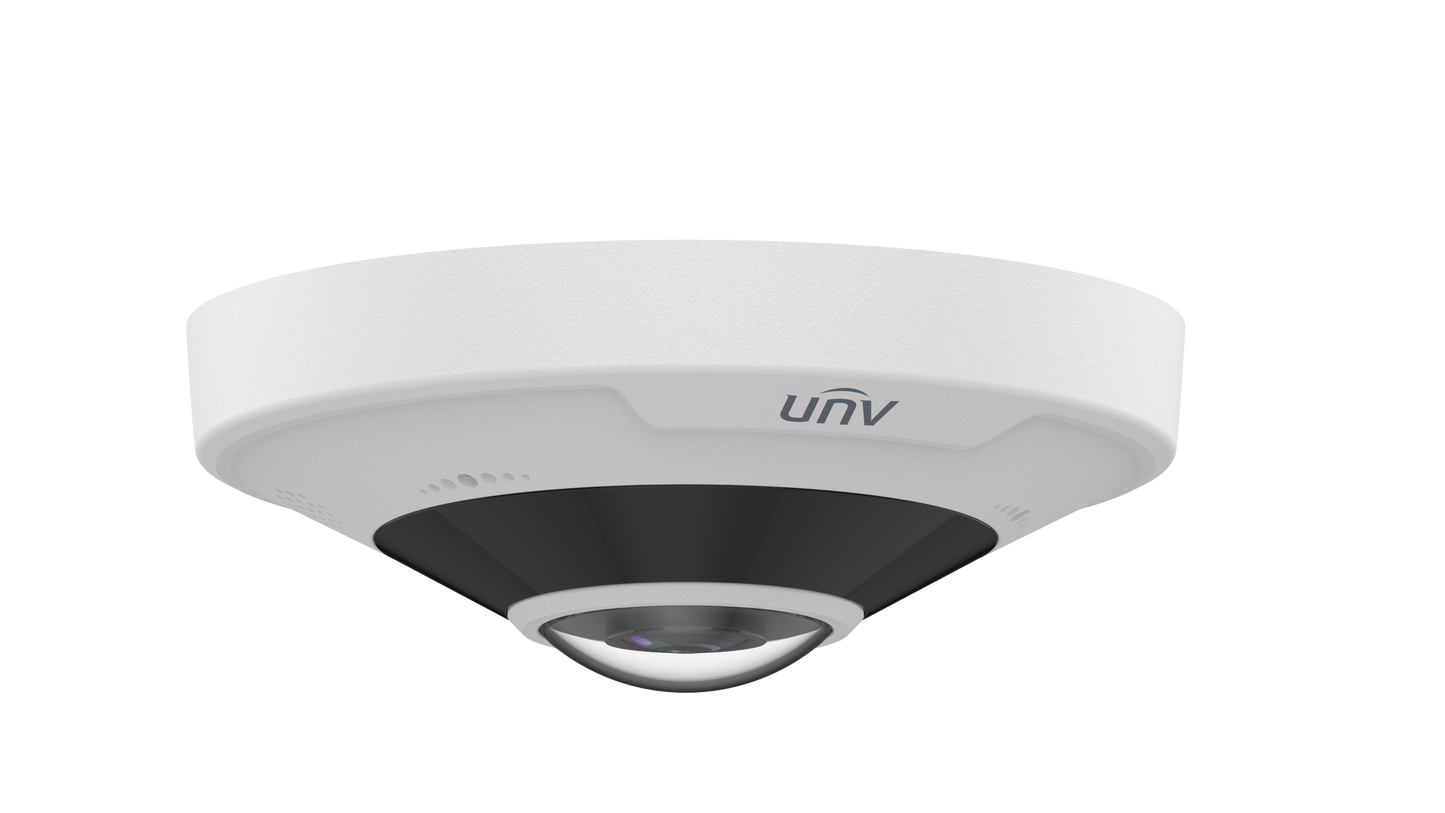

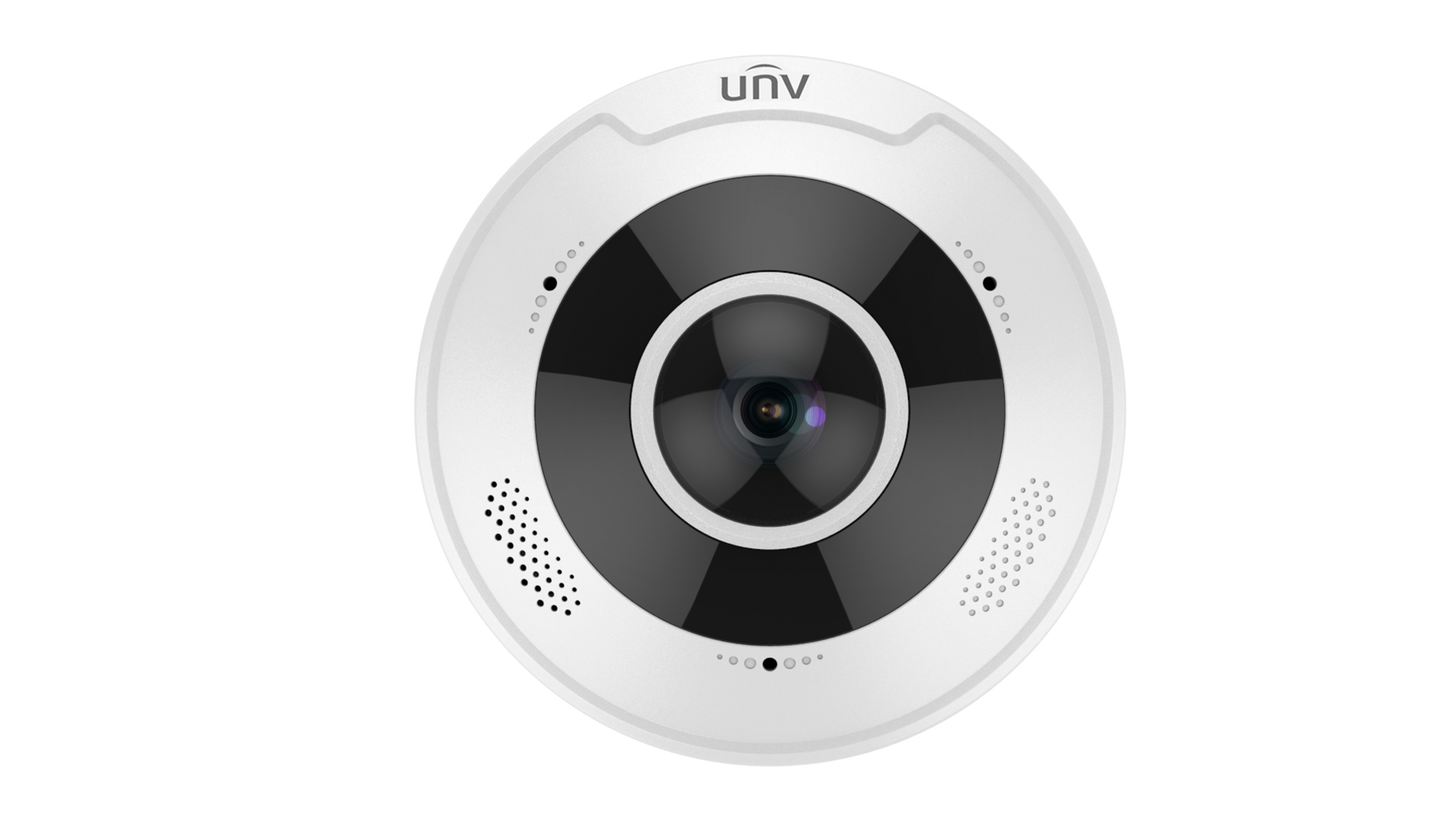

UNV Ultra H.265 12MP Vandal-Resistant Fisheye Dome

The UNV Ultra H.265 12MP Vandal-Resistant Fisheye Dome Camera offers exceptional surveillance capabilities with its high-quality imaging, robust design, and advanced features for comprehensive security monitoring.

Features

• High-Quality Imaging: Equipped with a 12MP 1/1.7” CMOS sensor, providing a maximum resolution of 4000x3000 pixels.
• Ultra-Wide Angle Lens: Features a 360° panoramic view, ensuring extensive coverage without blind spots.
• Advanced Video Compression: Supports Ultra265, H.265, H.264, and MJPEG formats, optimizing bandwidth and storage requirements.
• Infrared Illumination: Built-in infrared light provides up to 15m (49ft) IR distance for clear night vision.
• Multiple Decoding Modes: Offers both software and hardware decoding modes, facilitating interactive dynamic views.
• Heatmap Functionality: Utilizes deep learning algorithms to create intuitive color maps of moving objects in real-time.
• Two-Way Audio: Integrated microphone and speaker support two-way communication.
• Robust Design: IK10 vandal-resistant and IP67 rated for protection against dust and water.
• Storage Support: Compatible with micro SD cards up to 256GB for local storage.
• User-Friendly Management: Plug and play installation, compatible with ONVIF compliant systems.

Specifications

• Sensor: 1/1.7" CMOS, 12.0 megapixel
• Minimum Illumination: 0.03Lux (F2.0, AGC ON), 0Lux with IR
• Day/Night: IR-cut filter with auto switch (ICR)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• WDR: DWDR
• Field of View: 360°
• IR Range: Up to 15m (49ft)
• Video Compression: Ultra265, H.265, H.264, MJPEG
• Main Stream: 12MP(4000*3000)@20fps; 3000*3000@20fps; 2560*2560@25fps
• Sub Stream: 2000*1500@20fps; 2000*2000@25fps
• Audio Compression: G.711U, G.711A
• Power Supply: DC 12V±25%, PoE (IEEE 802.3af)
• Dimensions: Ø149 x 55mm
• Weight: 0.524kg
