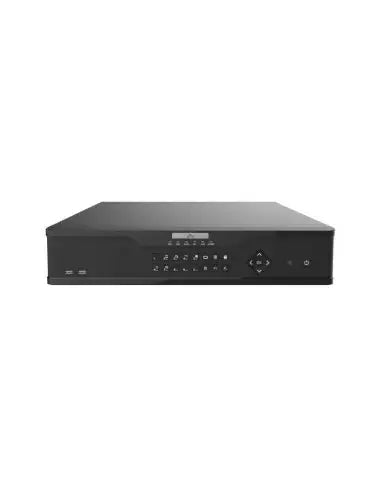

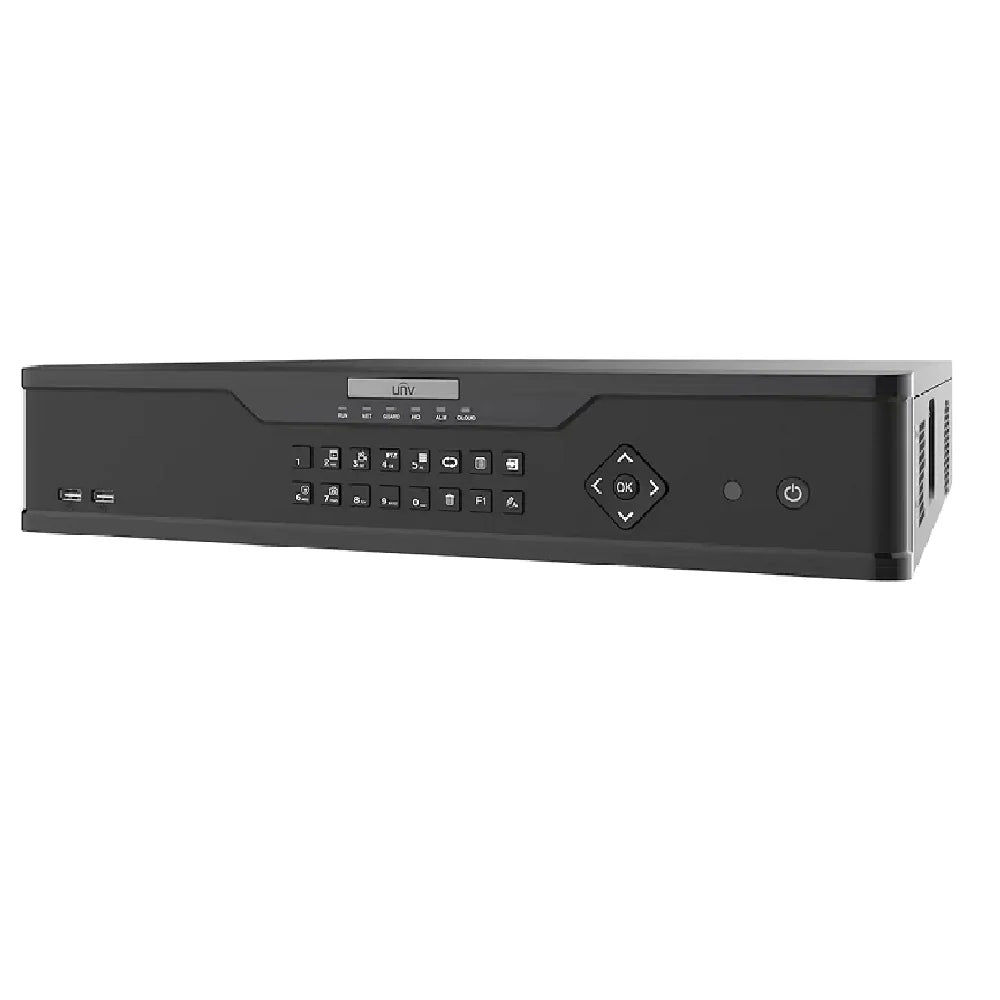

The UNV PRIME Series 64-Channel NVR is a cutting-edge network video recorder designed for large-scale surveillance operations. With support for Ultra H.265 video compression, this NVR offers exceptional video quality while optimizing storage and bandwidth. Featuring 8 HDD slots, it allows for extensive storage capacity, making it ideal for comprehensive surveillance needs.

Features

• 64-Channel Input: Supports up to 64 IP cameras for extensive monitoring.
• Ultra H.265 Compression: Reduces bandwidth and storage requirements while maintaining high video quality.
• 8 HDD Slots: Accommodates up to 8 SATA hard drives, each supporting up to 10TB, allowing for substantial video storage.
• RAID Support: Configurable RAID 0, 1, 5, 6, and 10 for enhanced data protection and redundancy.
• High Resolution Recording: Capable of recording video at resolutions up to 12 megapixels.

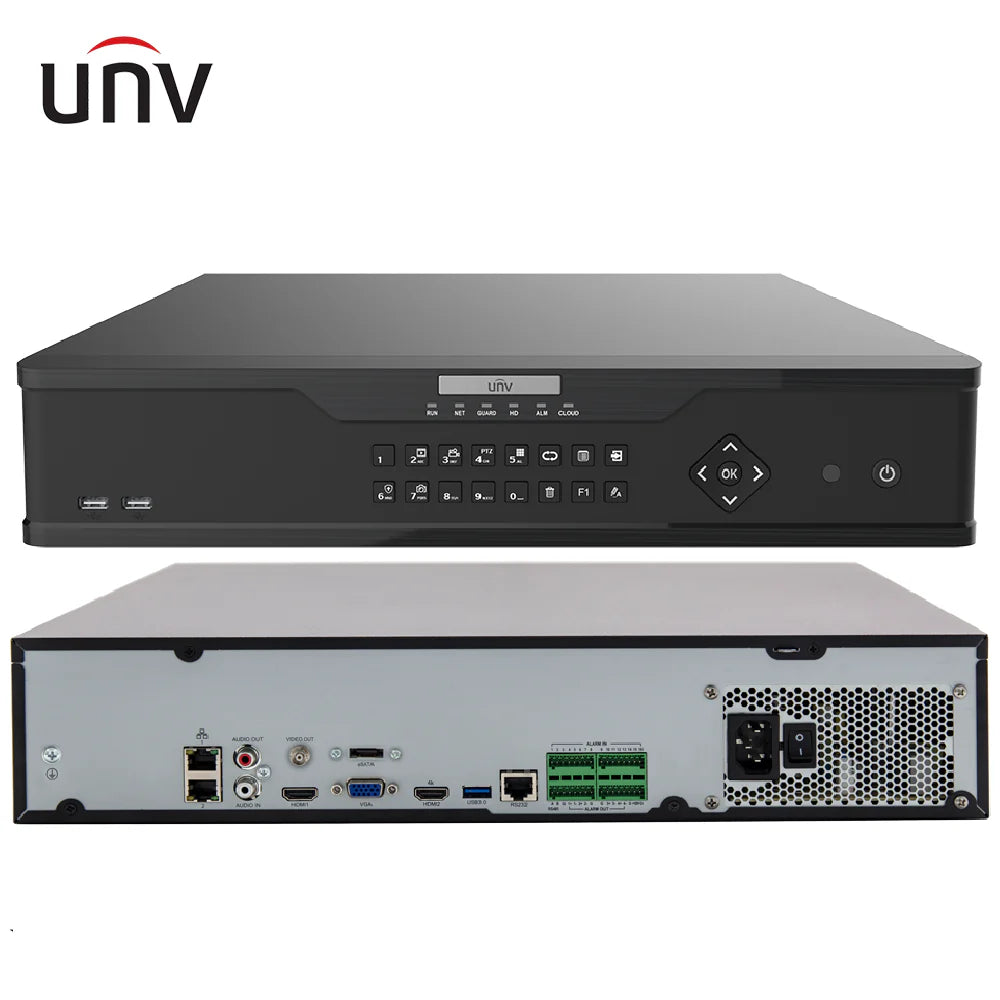

• Multiple Video Outputs: Supports dual HDMI outputs (up to 4K resolution) and one VGA output for flexible display options.
• Advanced Video Analytics: Features such as face detection, motion detection, and people counting enhance security monitoring.
• Network Redundancy: ANR technology improves storage reliability during network disconnections.

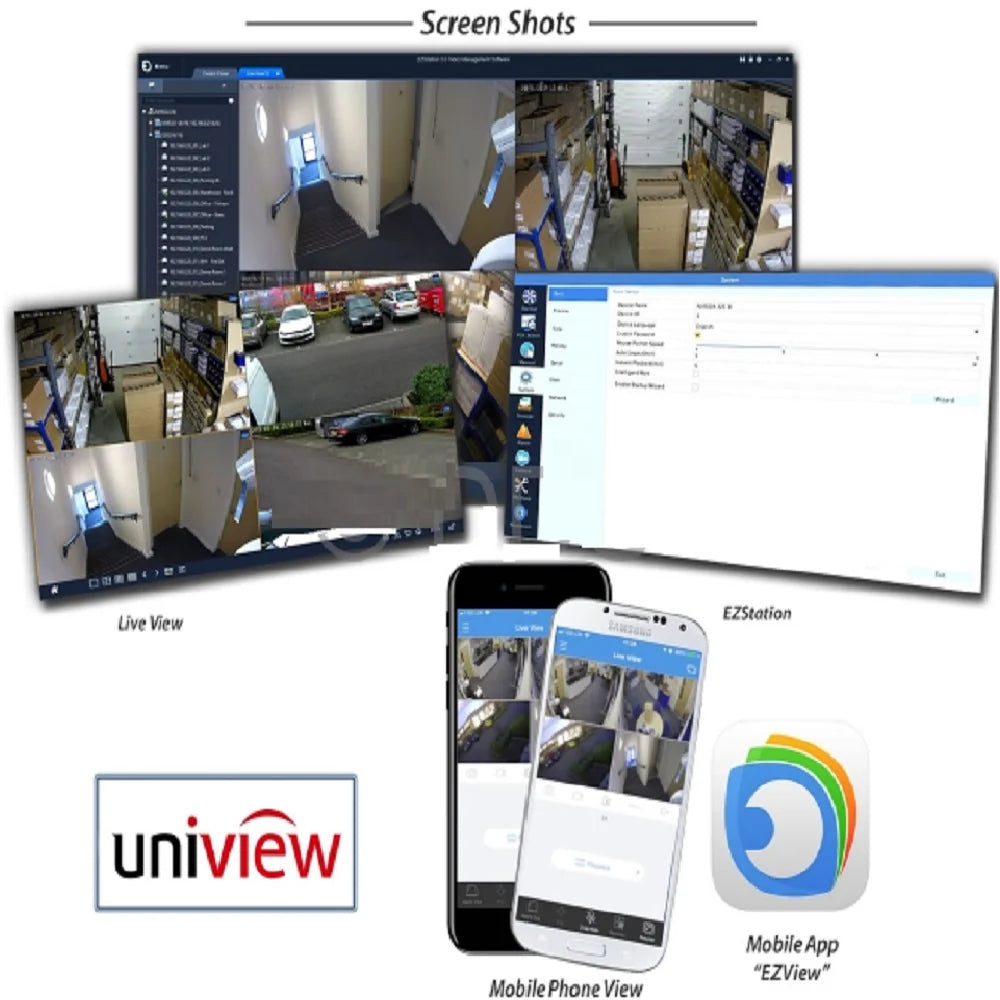

• User-Friendly Interface: Easy to use with various fisheye dewarping modes for live view and playback.
• Cloud Upgrade Support: Facilitates easy updates and enhancements via cloud technology.

Specifications

• Video Compression: Ultra H.265, H.265, H.264
• Recording Resolution: Up to 12 Megapixels
• Input Channels: 64
• HDD Capacity: Up to 10TB per HDD
• Supported RAID Levels: 0, 1, 5, 6, 10
• Video Outputs: 2 x HDMI (4K), 1 x VGA
• Audio Compression: G.711A, G.711U
• Operating Temperature: -10 °C to 55 °C
• Power Supply: AC 100 - 240 V
• Dimensions: 442mm x 426mm x 89mm
• Weight: ≤ 5.7 kg
