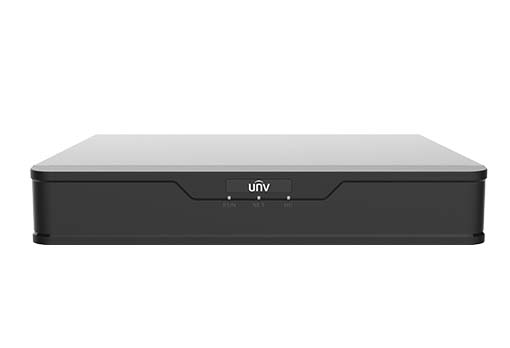

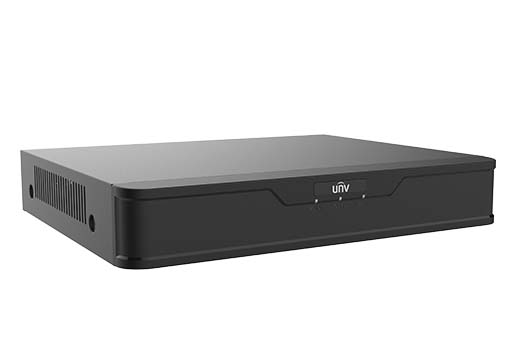

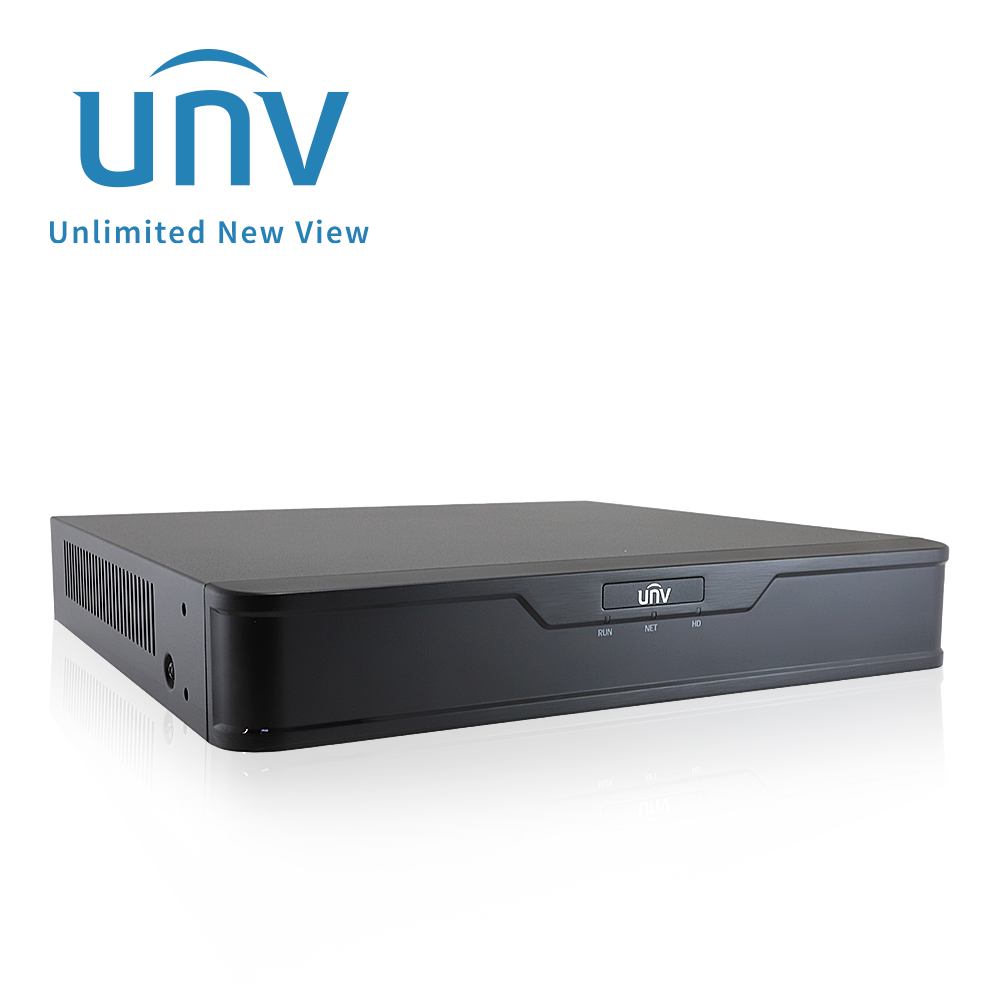

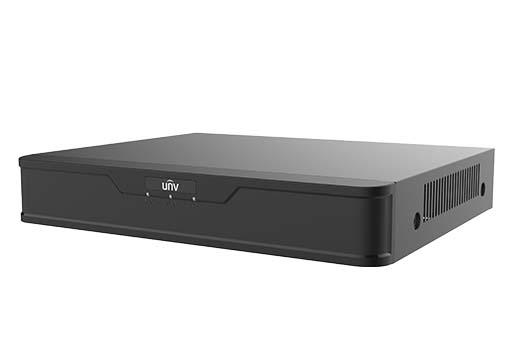

UNV H.265 Hybrid NVR - 8 Channel Analog XVR

The UNV H.265 Hybrid NVR - 8 Channel Analog XVR is a versatile and powerful network video recorder designed for seamless integration with various camera types. It supports advanced video compression technologies, ensuring high-quality footage while optimizing storage and bandwidth requirements.

Features

• Supports H.265/H.264 video formats: Ensures compatibility with a wide range of video sources for enhanced flexibility.
• Audio over coaxial cable support: Allows audio transmission through coaxial cables, specifically for TVI cameras.
• Adaptive access for multiple camera types: Compatible with TVI, AHD, CVI, CVBS, and IP cameras, providing versatile surveillance options.

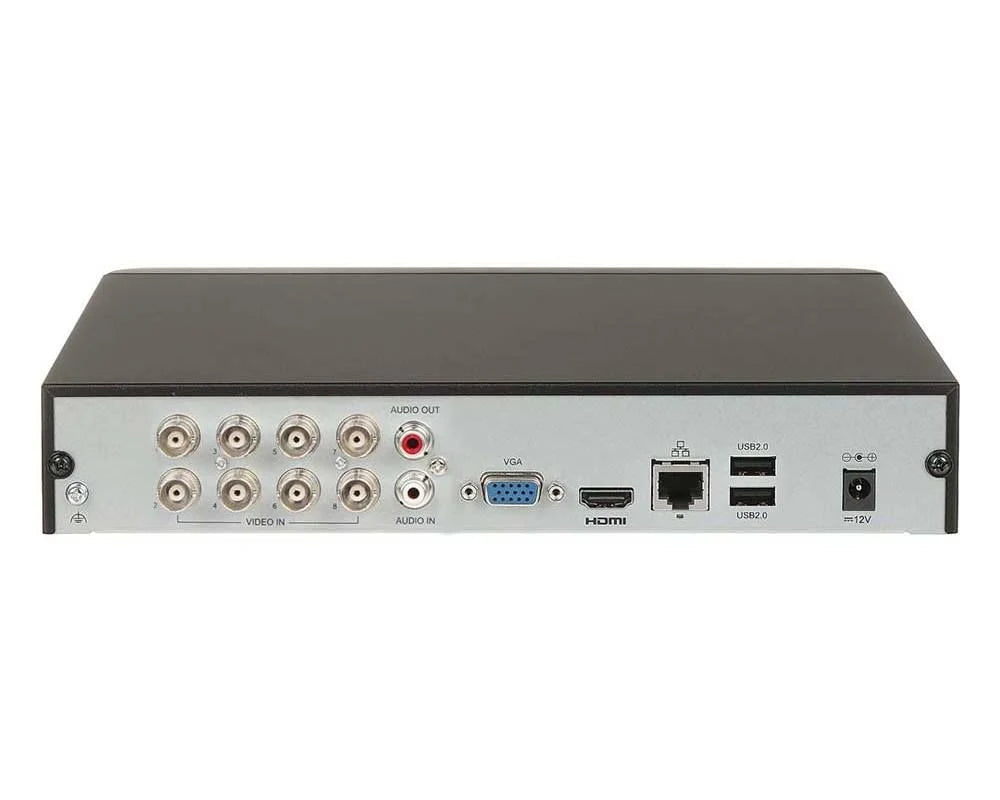

• 4/8-channel BNC input: Offers the ability to connect multiple analog cameras directly.
• HDMI and VGA output: Supports 1-ch HDMI and 1-ch VGA output up to 1920x1080 resolution for high-definition display.
• Long transmission distance: Capable of long-distance video transmission over coaxial cables, making it ideal for extensive installations.
• ONVIF and RTSP protocol support: Ensures compatibility with mainstream camera brands and systems, facilitating easy integration.
• Plug and Play functionality: Simplifies installation and setup, making it user-friendly.

Specifications

• Video Formats: H.265/H.264
• Audio Support: Audio over coaxial cable (only for TVI cameras)
• Camera Compatibility: TVI, AHD, CVI, CVBS, IP cameras
• BNC Input Channels: 4/8 channels
• HDMI Output: 1 channel, up to 1920x1080
• VGA Output: 1 channel, up to 1920x1080
• Protocols: ONVIF, RTSP
• Dimensions: 260mm x 226mm x 47mm
• Weight: ≤1.1 kg
• Power Supply: DC 12V/2A
• Operating Temperature: -10°C to +55°C
• Operating Humidity: ≤ 90% RH (non-condensing)
