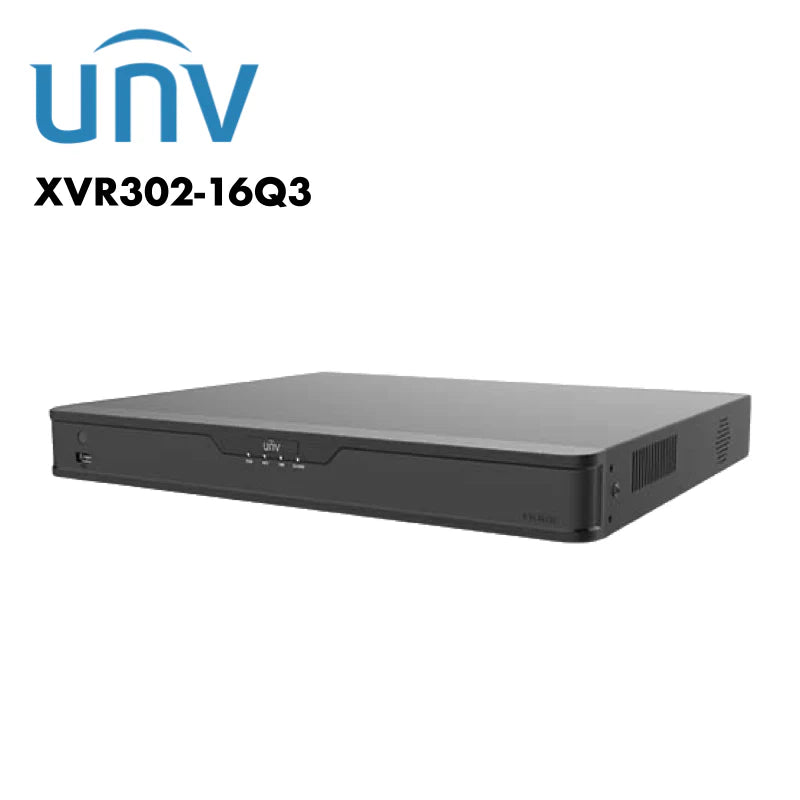

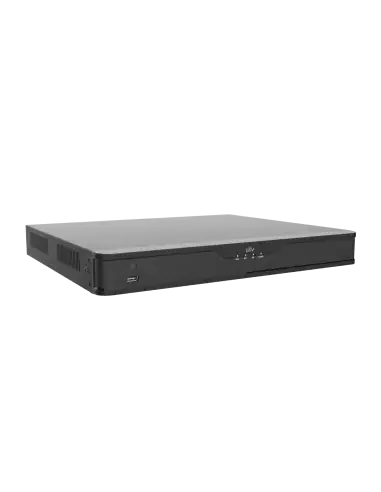

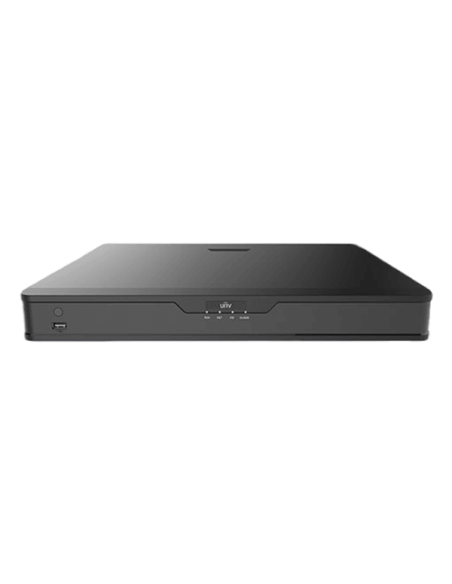

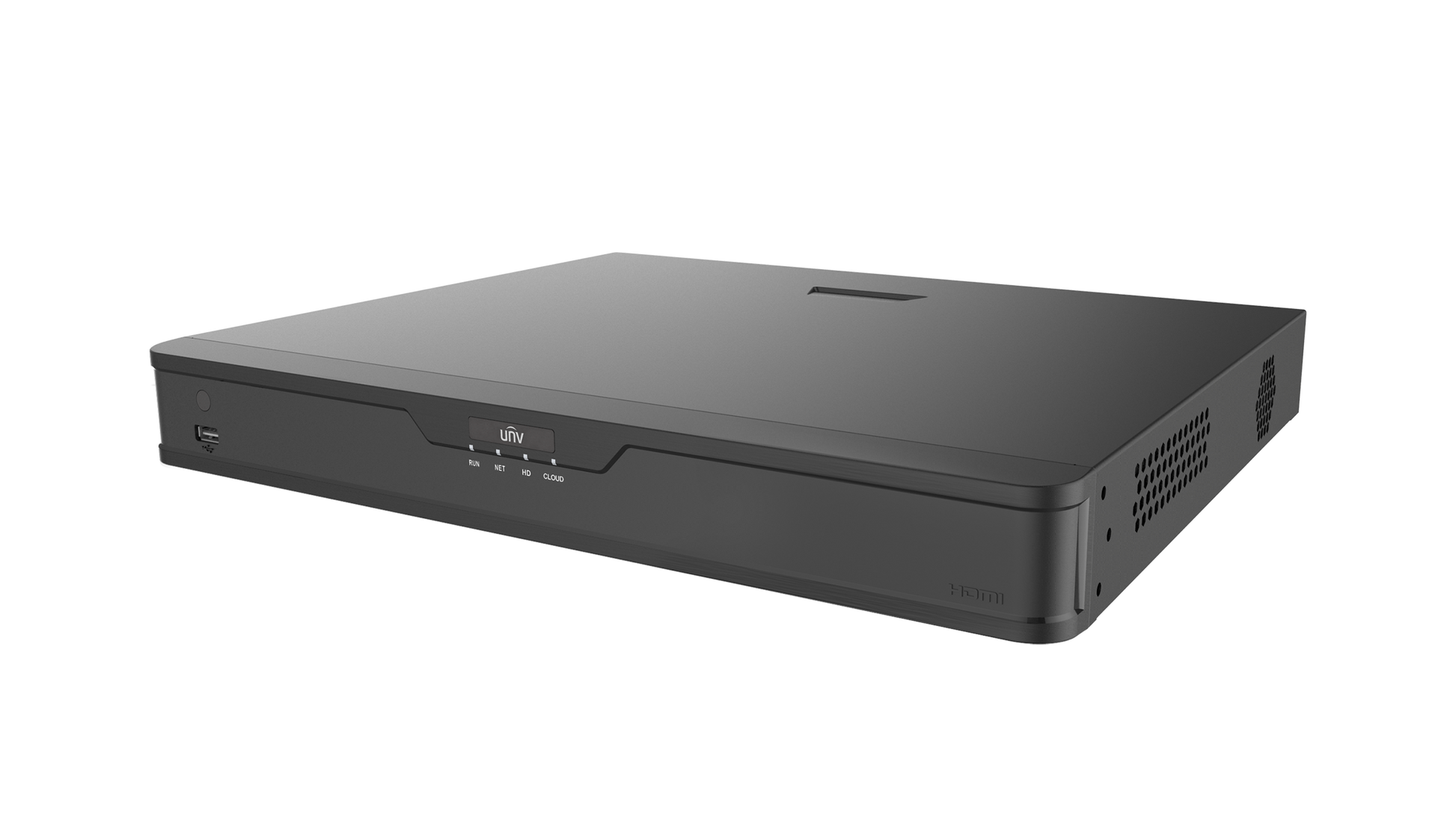

UNV H.265 Hybrid NVR - 16 Channel Analog XVR

The UNV H.265 Hybrid NVR is a versatile and powerful network video recorder designed to support a wide range of video formats and camera types. With its ability to handle up to 16 channels of analog and IP cameras, this NVR is ideal for both small and large scale surveillance applications, ensuring high-quality video recording and playback.

Features

• H.265/H.264 Support: Compatible with advanced video compression formats for efficient storage.
• Audio over Coaxial: Supports audio transmission over coaxial cable for TVI cameras.
• Multi-Format Compatibility: Works with TVI, AHD, CVI, CVBS, and IP cameras, allowing flexible system integration.
• 16-Channel BNC Input: Accommodates up to 16 analog cameras for comprehensive coverage.
• High-Resolution Outputs: Features 1-ch HDMI output, 1-ch VGA output at up to 4K resolution for stunning video display.
• Long Transmission Distance: Capable of long-distance transmission over coaxial cables, ideal for extensive installations.
• ONVIF and RTSP Protocols: Supports mainstream camera protocols for seamless integration with various devices.
• Simultaneous HDMI and VGA Output: Allows for multiple display options without compromising performance.

Specifications

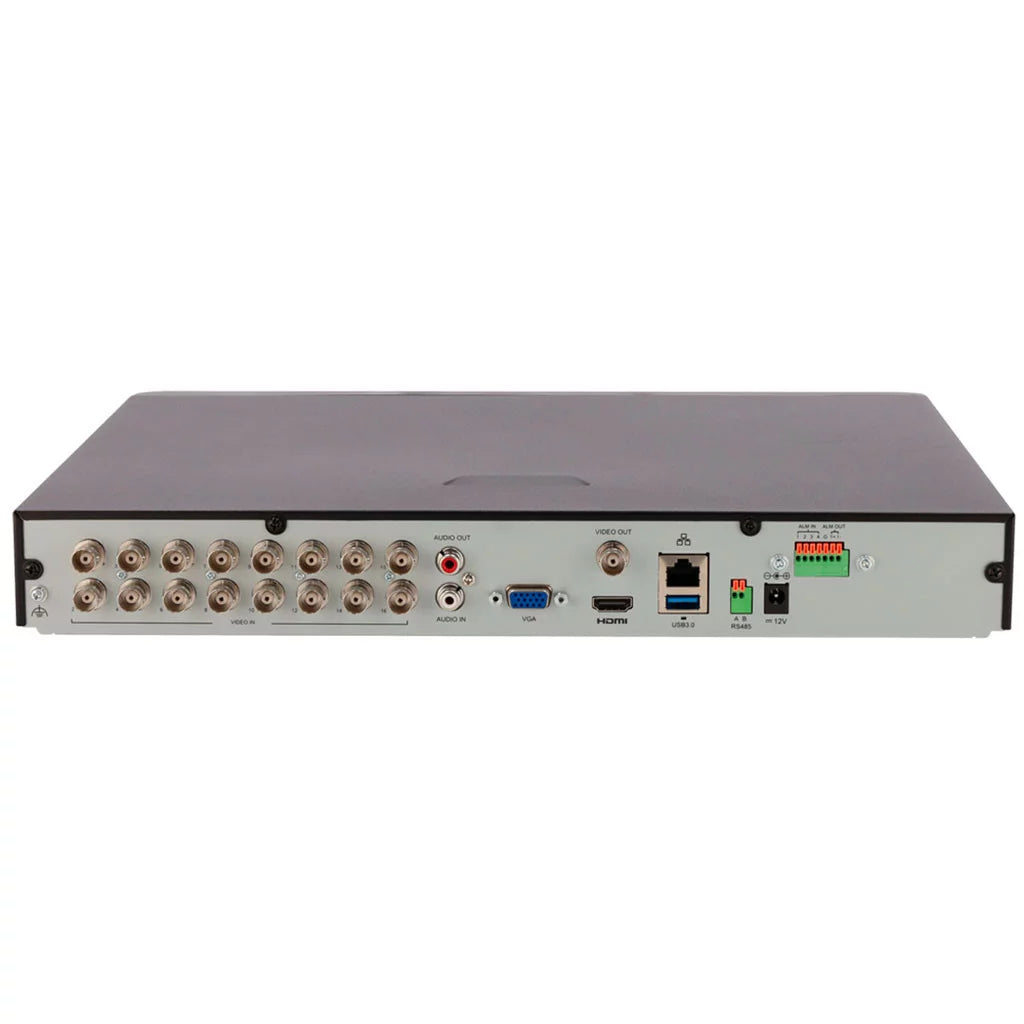

• Video Input: 16-channel BNC input, 8-channel IP video input
• Max IP Video Input: 24 channels
• Resolution: Supports up to 8MP for various camera types
• Output Resolution: HDMI up to 4K (3840 x 2160), VGA up to 1920 x 1080
• Audio Input: 1-channel RCA audio input
• Audio Output: 1-channel RCA audio output
• Incoming Bandwidth: 80 Mbps (up to 112 Mbps after analog channel conversion)
• Outgoing Bandwidth: 160 Mbps
• Storage: 2 SATA interfaces, up to 8TB each
• Power Supply: DC 12V/3A
• Dimensions: 380mm x 326mm x 53mm
• Weight: ≤2.0 Kg (4.4 lb)
• Operating Temperature: -10°C to +55°C
• Operating Humidity: ≤ 90% RH (non-condensing)
• Certification: CE, FCC, UL, RoHS, WEEE
