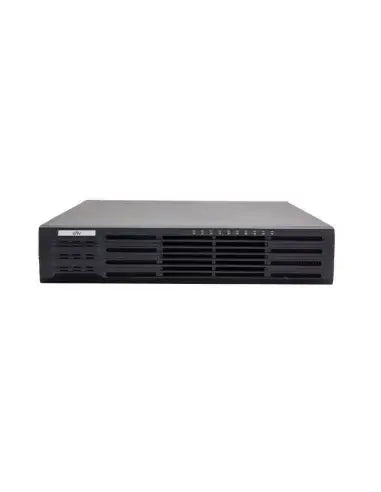

UNV H.265 64-Channel NVR - 8 HDD Slots, PRIME Series

The UNV H.265 64-Channel NVR is a cutting-edge network video recorder designed for high-performance surveillance systems. With support for Ultra 265, H.265, and H.264 video formats, this NVR is capable of handling up to 64 channels and offers an impressive array of features to ensure comprehensive security coverage.

Features

• 64-Channel Input: Supports both 32 and 64-channel configurations for extensive surveillance.
• High Resolution Recording: Capable of recording up to 12 Megapixels for detailed video quality.
• Multiple Video Outputs: Features 2 HDMI outputs (one supporting up to 4K resolution), 1 VGA, and 1 CVBS output for versatile display options.
• Third-Party Camera Compatibility: Supports ONVIF conformance (Profile S, G, T), allowing integration with various third-party IP cameras.
• RAID Support: Configurable RAID options (0, 1, 5, 6, 10) for enhanced data protection and storage flexibility.
• Hot Swap HDDs: Supports HDD hot swapping with 8 SATA HDD slots, each capable of holding up to 10TB, facilitating easy maintenance.
• Fisheye Dewarping: Offers various fisheye dewarping modes for live view and playback, enhancing viewing angles.
• N+1 Hot Spare: Provides additional reliability and redundancy in case of HDD failure.
• Advanced Network Reliability: ANR technology enhances storage reliability during network disconnections.
• Cloud Upgrade Support: Enables easy updates and enhancements through cloud capabilities.

Specifications

• Video Formats Supported: Ultra 265, H.265, H.264
• Max Recording Resolution: 12 Megapixels
• HDMI Output: 2 channels (up to 4K resolution)
• VGA Output: 1 channel
• CVBS Output: 1 channel
• Number of HDD Slots: 8 SATA HDDs
• Max HDD Capacity: 10TB per HDD
• RAID Levels Supported: 0, 1, 5, 6, 10
• Power Output: 12V
• Operating Temperature: -10 °C to 55 °C
• Dimensions: 442mm x 426mm x 89mm
• Weight: ≤ 5.7 kg
