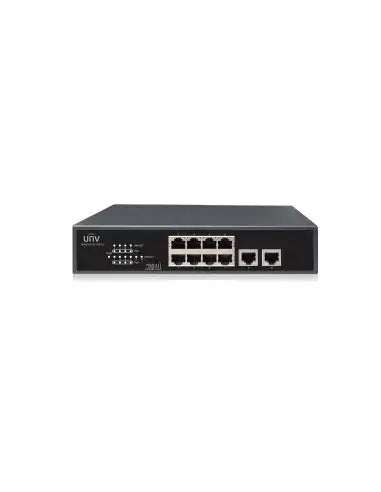

UNV 8-Port PoE Switch with 2 Uplink Ports

The UNV 8-Port PoE Switch is designed for versatility and efficiency, offering multiple working modes including Normal, Secure, and Surveillance. With robust features like port traffic control and a total power budget of 120W, this switch is perfect for businesses looking to enhance their network capabilities while ensuring security and reliability.

Features

• Multiple Working Modes: Choose between Normal, Secure, and Surveillance modes to meet diverse business needs.
• High Power Output: Each port provides up to 30W of power with a total system budget of 120W.
• Uplink Capabilities: Includes 2 non-powered 10/100 uplink ports for enhanced connectivity.
• Traffic Management: Supports port traffic control for improved network management.
• Enhanced Security: In Secure Mode, downlink ports can only communicate with uplink ports, ensuring controlled access.
• Long Distance Transmission: Allows for transmission distances of up to 820 feet (250m) in Surveillance Mode.
• Buffer Optimization: Features buffer optimization for enhanced performance.
• Durable Construction: Constructed with all-metal housing for safety and reliability.

Specifications

• Ports: 10×100Mbps network ports (RJ45), including 8 PoE ports
• Switching Capacity: 2Gbps
• Packet Buffer: 2Mbit
• MAC Address Table: 4K
• Power Supply: AC: 100-240V, 50/60Hz
• Max PoE Power: Max capacity: 120W, Max capacity for single port: 30W
• Operating Temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F)
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 90% (non-condensing)
• Dimensions (W×D×H): 220 x 150 x 44mm
• Weight: <1.22 kg
