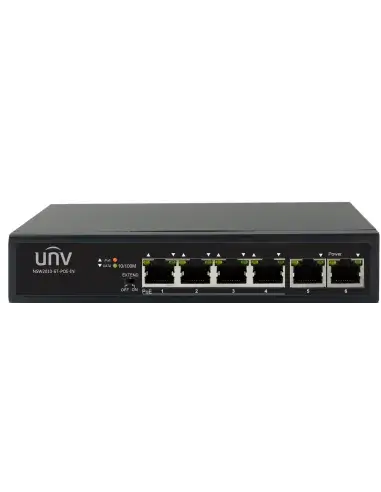

UNV 4-Port PoE Switch with 250m Support

The UNV 4-Port PoE Switch is designed for efficient network management and surveillance applications. With its multiple working modes, including Normal, Secure, and Surveillance, it meets various business needs while ensuring reliable power and data transmission over extended distances.

Features

• Multiple Working Modes: Switch between Normal, Secure, and Surveillance modes to suit your operational requirements.
• Port Traffic Control: Manage and monitor the traffic on each port for enhanced network performance.
• Extended Transmission Distance: Achieve up to 250 meters in Surveillance mode, making it ideal for expansive installations.
• Secure Mode Support: In secure mode, downlink ports can only communicate with uplink ports, enhancing network security.
• Buffer Optimization: Ensures efficient data handling and minimizes latency.
• Durable Metal Housing: Built with all-metal housing for enhanced durability and reliability.

Specifications

• Ports Type: 6×100Mbps network ports (RJ45), including 4 PoE ports
• Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
• Switching Capacity: 1.2Gbps
• Forwarding Performance: 0.90Mpps
• Packet Buffer: 768K bit
• MAC Address Table: 2K
• Weight: <0.6 kg
• Power Supply: AC: 100-240 V, 50/60 Hz
• Dimensions: 160mm x 93mm x 32mm (6.3"×3.7"×1.3")
• Max PoE Power: Max capacity: 65W, Max capacity for single port: 30W
• Operating Temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F)
• Operating Humidity: 10%～90% (non-condensing)
• Storage Humidity: 5%～90% (non-condensing)
