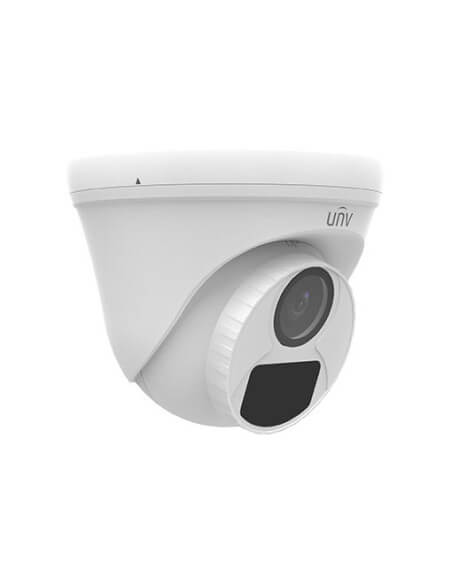

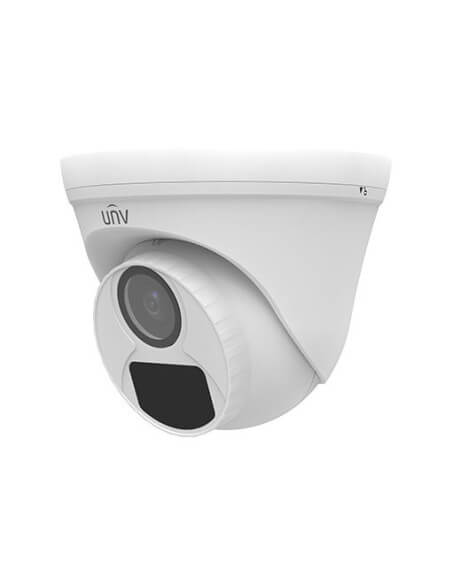

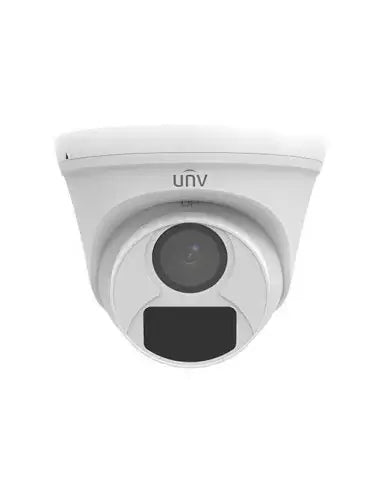

UNV 2MP HD Mini Turret Camera - Fixed IR

The UNV 2MP HD Mini Turret Camera is designed for high-quality surveillance with its advanced 1/3-inch CMOS sensor, offering reliable performance day and night. With its robust features, it ensures exceptional image clarity and adaptability for various security applications.

Features

• 2MP High-Quality Image: Delivers clear and detailed video footage.
• Multiple Format Support: Compatible with TVI, AHD, CVI, and CVBS for versatile installation options.
• IR Cut Filter: Provides color images during the day and switches to black and white at night for optimal visibility.
• Smart IR Technology: Ensures clear night vision with an IR illuminator effective up to 20 meters.
• Weatherproof Design: IP67 rated, making it suitable for outdoor use in various weather conditions.
• Wide Operating Temperature: Functions reliably in temperatures ranging from -30°C to 60°C.
• User-Friendly OSD Menu: Simplifies camera configuration and settings adjustment.
• Compact Design: Easy to mount and integrate into existing security systems.

Specifications

• Sensor Pixel: 2MP
• Sensor Size: 1/3 inch CMOS
• Minimum Illumination: 0.02 lux (F2.0, AGC ON), 0 lux (IR on)
• Lens Options: 2.8mm or 4.0mm
• Angle of View (H/V/D): 90.5°/49.6°/109.5° (2.8mm), 80.2°/40.7°/90.5° (4.0mm)
• Resolution: 1080P (1920x1080) and 720P (1280x720)
• Frame Rate: Up to 30fps at 1080P
• Power Supply: DC 12V (±25%)
• Power Consumption: Maximum 2.88W
• Dimensions: Φ118mm x 96mm (diameter x height)
• Weight: 182g
