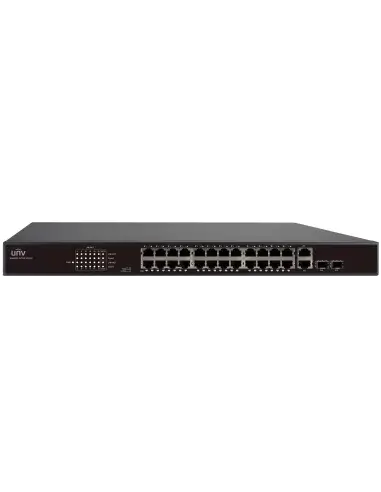

UNV 24-Port 10/100 PoE Switch with EXTEND Mode

The UNV 24-Port 10/100 PoE Switch is designed for modern business needs, offering multiple working modes including Normal, Secure, and Surveillance. With its robust features and reliable performance, it is ideal for powering and managing your network devices efficiently.

Features

• Multiple Working Modes: Supports Normal, Secure, and Surveillance modes to cater to varying business needs.
• Extended Transmission Distance: In Surveillance mode, the switch supports transmission distances of up to 250 meters.
• Port Traffic Control: Efficiently manage and control network traffic across all ports.
• Secure Mode: Ensures that downlink ports can only communicate with uplink ports for enhanced security.
• Buffer Optimization: Supports buffer optimization for improved data handling.
• Durable Metal Housing: Constructed with all metal housing for enhanced durability and reliability.

Specifications

• Model: NSW2010-24T2GC-POE-IN
• Ports: 24×100Mbps PoE ports (RJ45) + 2×1000Mbps Combo ports
• Switching Capacity: 8.8Gbps
• Forwarding Performance: 6.55Mpps
• Packet Buffer: 4Mbit
• MAC Address Table: 16K
• Power Supply: AC 100-240V, 50/60Hz
• Maximum PoE Power: 370W (Max capacity for single port: 30W)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Dimensions (W×D×H): 440mm x 207mm x 45mm
• Weight: <4.2kg
