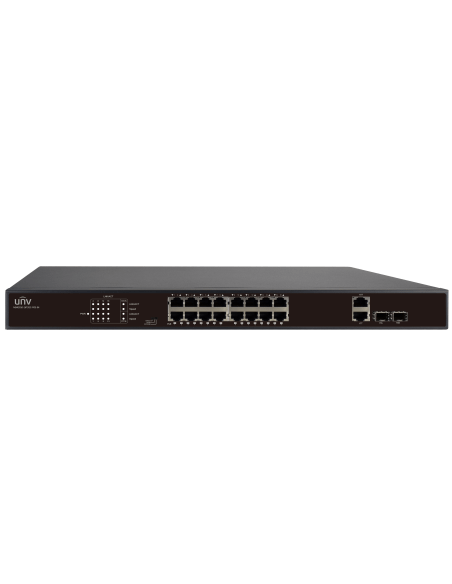

UNV 16-Port PoE Switch with EXTEND Mode

The UNV 16-Port PoE Switch with EXTEND Mode is designed to meet the demands of modern surveillance and networking needs. It offers multiple working modes, robust power over Ethernet capabilities, and a reliable metal housing, making it an ideal choice for businesses looking to enhance their network infrastructure.

Features

• Multiple Working Modes: Choose between Normal, Secure, and Surveillance modes to suit your business needs.
• Extended Transmission Distance: In Surveillance mode, it supports up to 250 meters of transmission distance, ensuring flexibility in installation.
• Traffic Control Support: The switch supports port traffic control, enhancing network management.
• Secure Mode: In Secure mode, all downlink ports can communicate only with uplink ports, adding an extra layer of security.
• Buffer Optimization: The switch includes support for buffer optimization, improving performance during peak usage.
• Durable Metal Housing: The all-metal housing ensures safety and reliability, suitable for various environments.

Specifications

• Ports: 16×100Mbps PoE ports (RJ45) + 2×1000Mbps Combo ports
• Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
• Switching Capacity: 7.2Gbps
• Packet Buffer: 4M bit
• Forwarding Performance: 5.36Mpps
• MAC Address Table: 16K
• Max PoE Power: Max capacity: 250W, Max capacity for single port: 30W
• Power Supply: AC: 100-240 V, 50/60 Hz
• Weight: <4.2 kg
• Cooling Fans: 2
• Mean Time Between Failure (MTBF): >50000 hours
• Dimensions (W×D×H): 440mm x 207mm x 45mm
• Operating Temperature: 0 °C ~ 40 °C
• Operating Humidity: 10%～90% (non-condensing)
