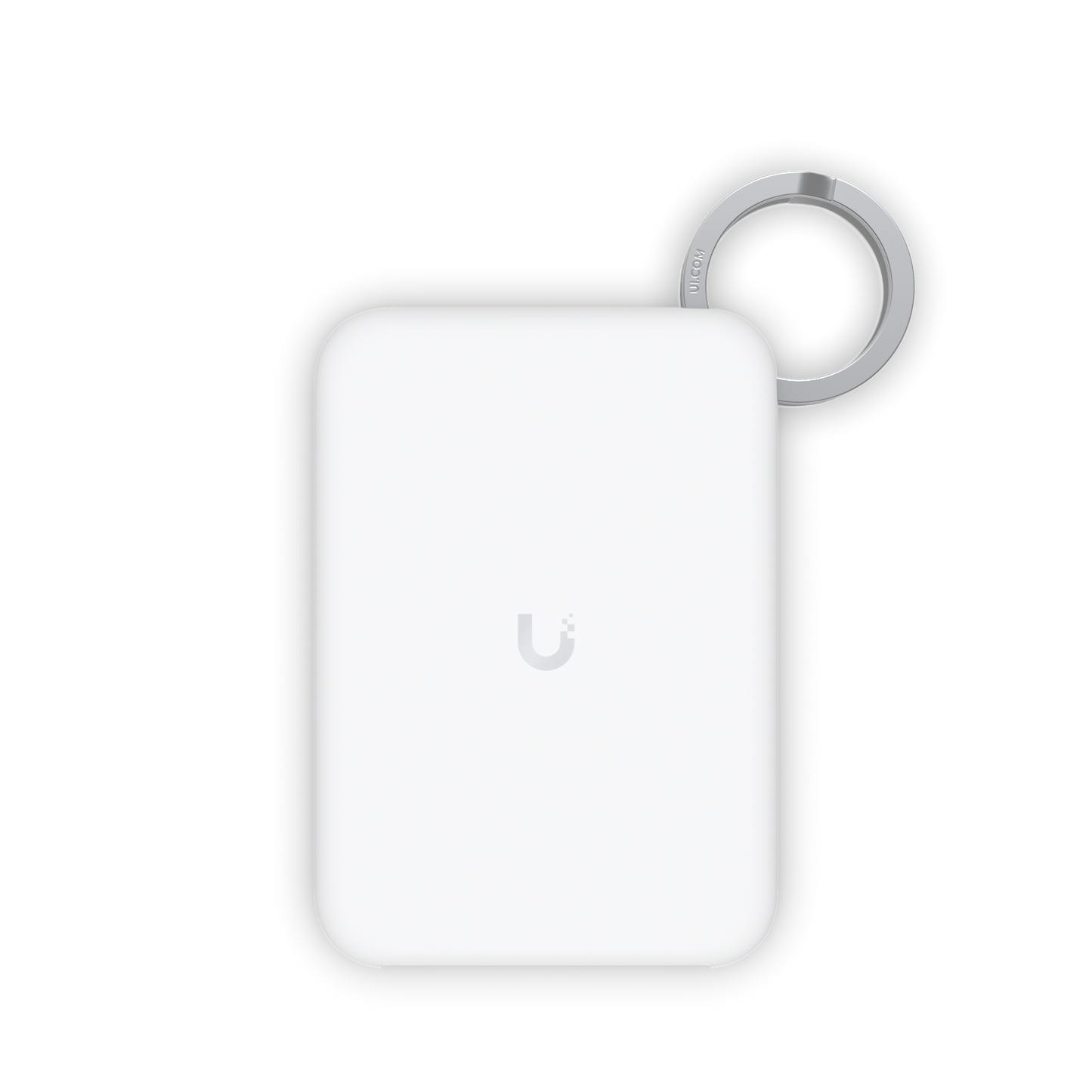

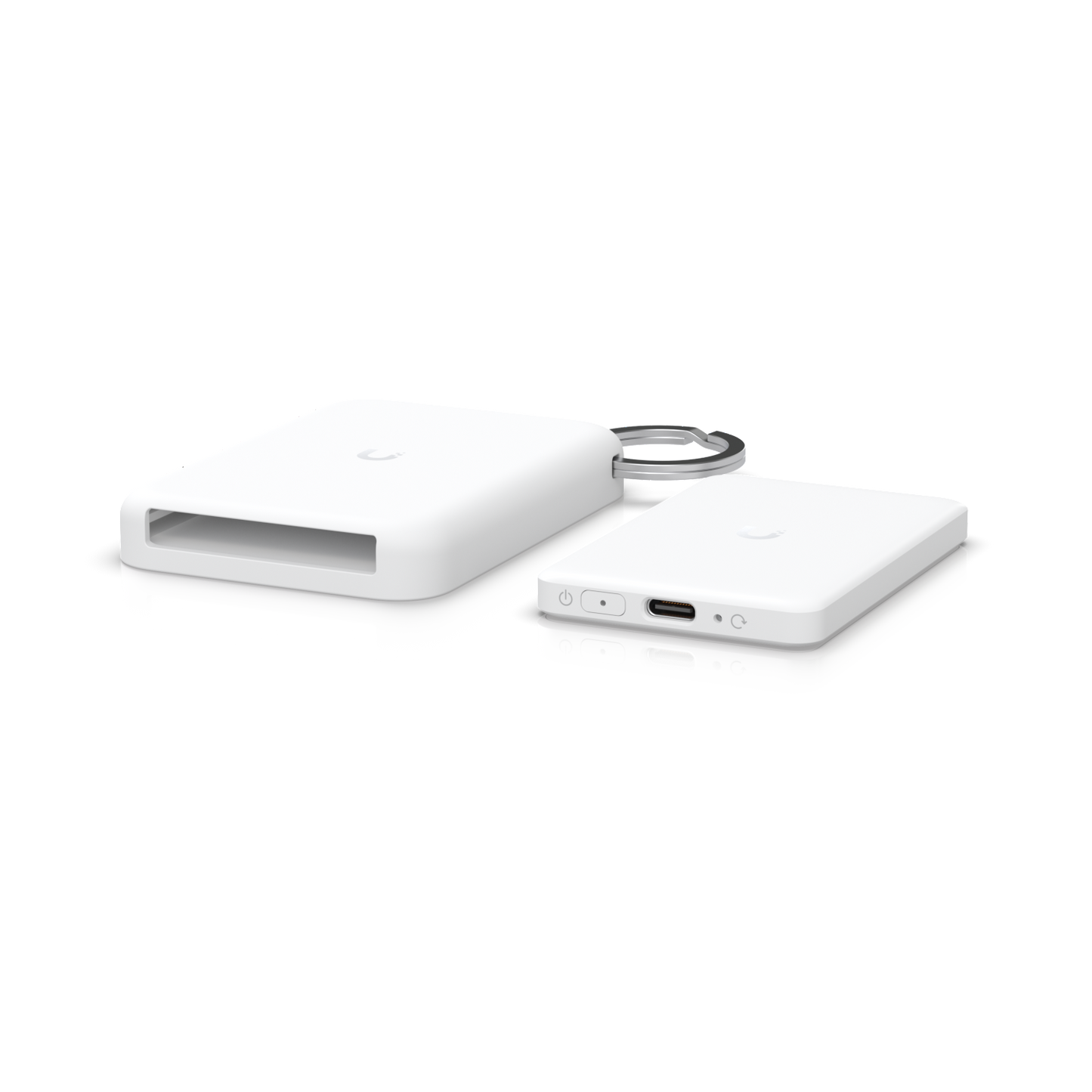

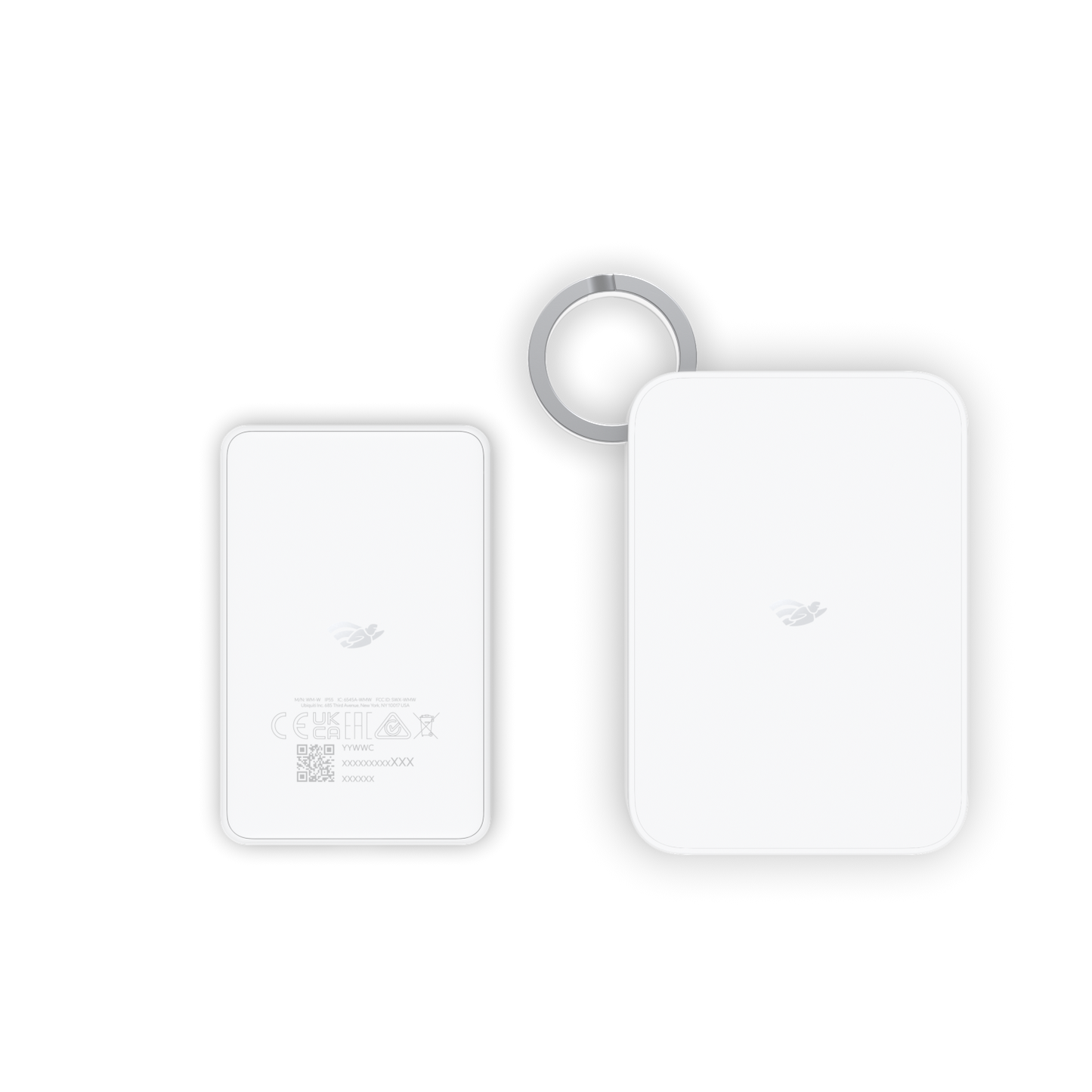

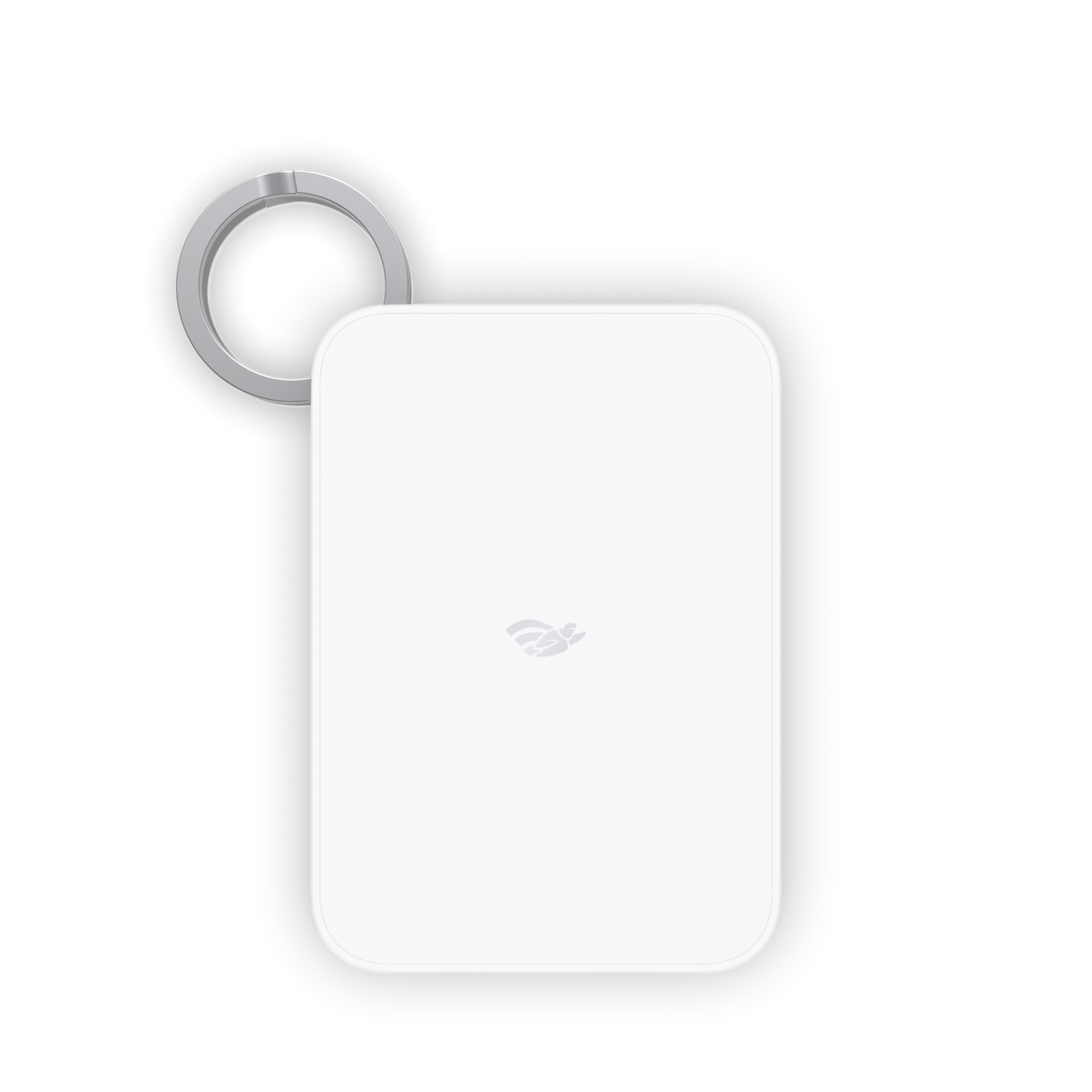

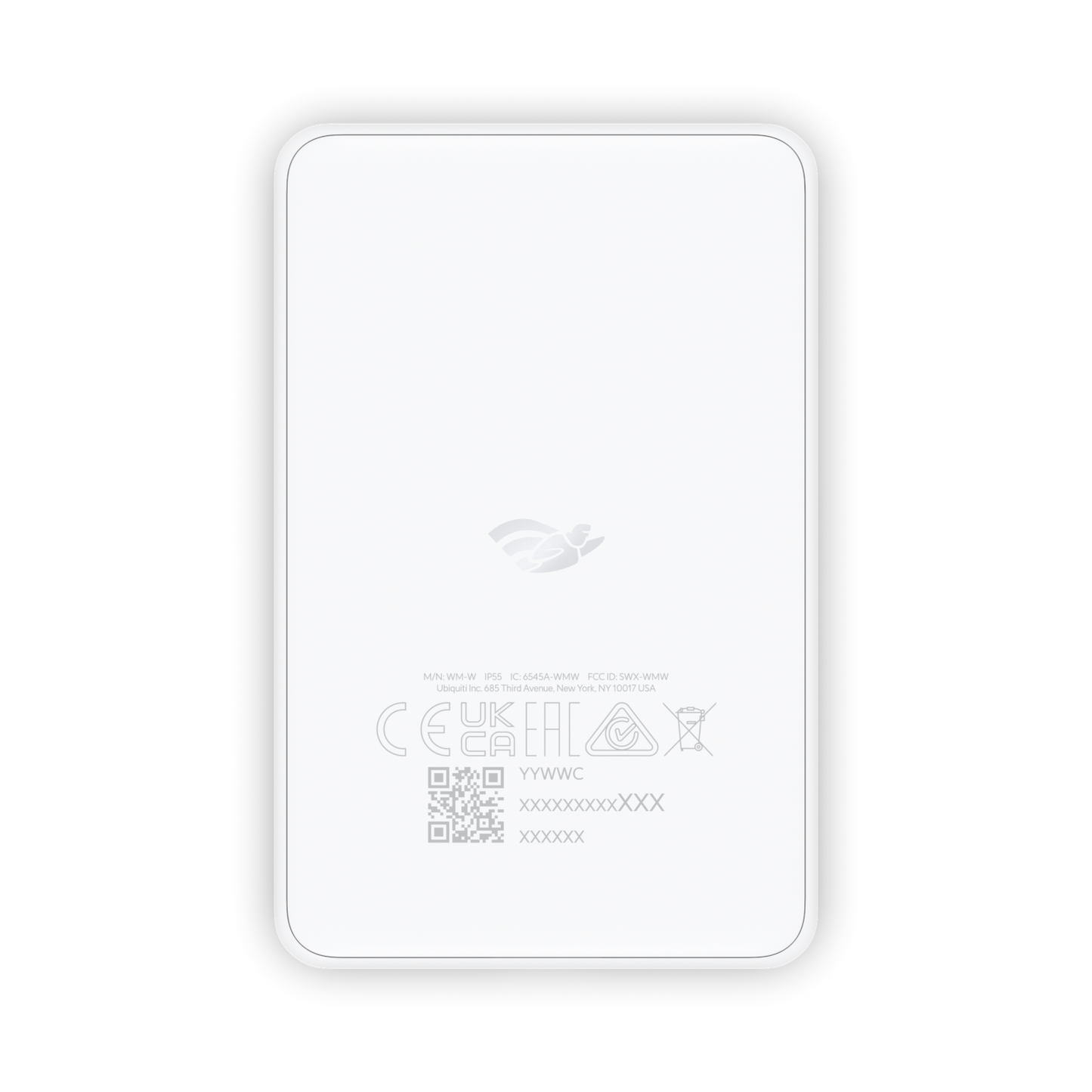

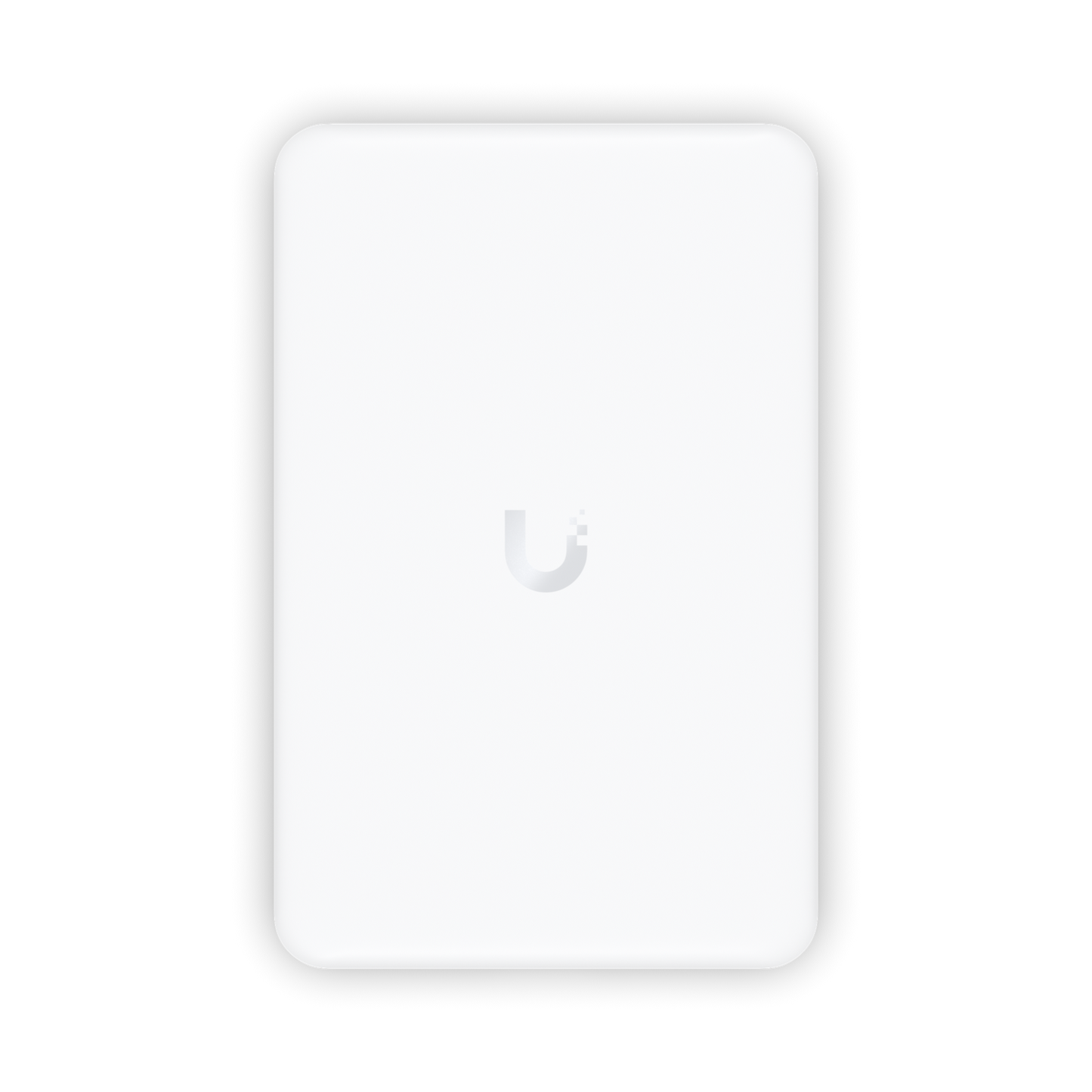

Ubiquiti UniFi WiFiMan Wizard | WM-W

The Ubiquiti UniFi WiFiMan Wizard is a portable spectrum analyzer designed to work seamlessly with the WiFiMan mobile app for both iOS and Android devices. This innovative tool enables users to visualize and optimize their wireless networks, ensuring optimal performance and connectivity.

Features

• Floor Plan Wireless Heat Map: Visualize your Wi-Fi coverage and identify dead zones in your area.
• 2.4 GHz and 5 GHz Unlicensed Band Scanning: Comprehensive scanning capabilities for both frequency bands to assess network performance.
• 240 Minutes Continuous Scanning Battery Life: Extended operational time for thorough analysis without interruptions.
• BLE Smartphone Pairing: Connects easily with smartphones via Bluetooth Low Energy for enhanced usability.

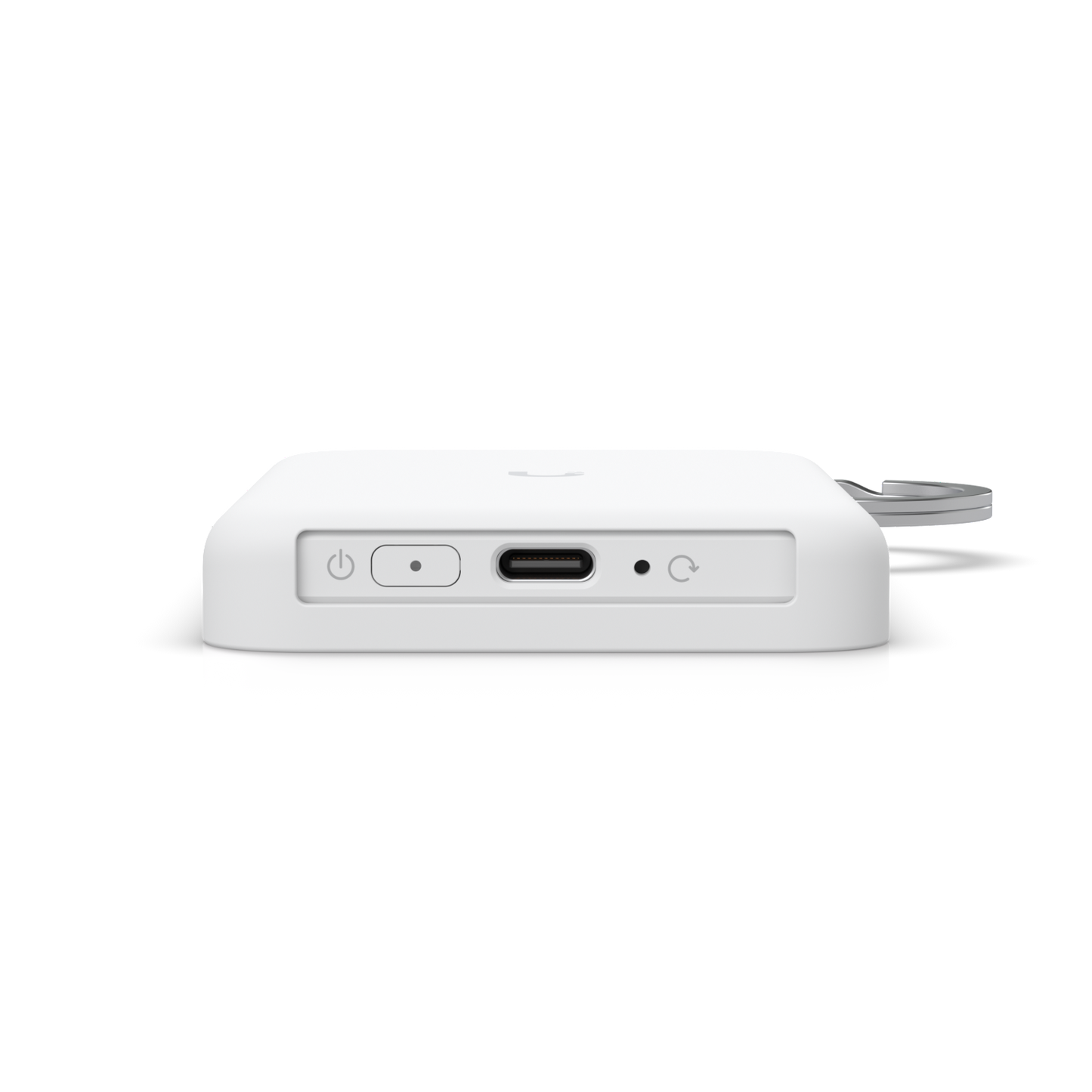

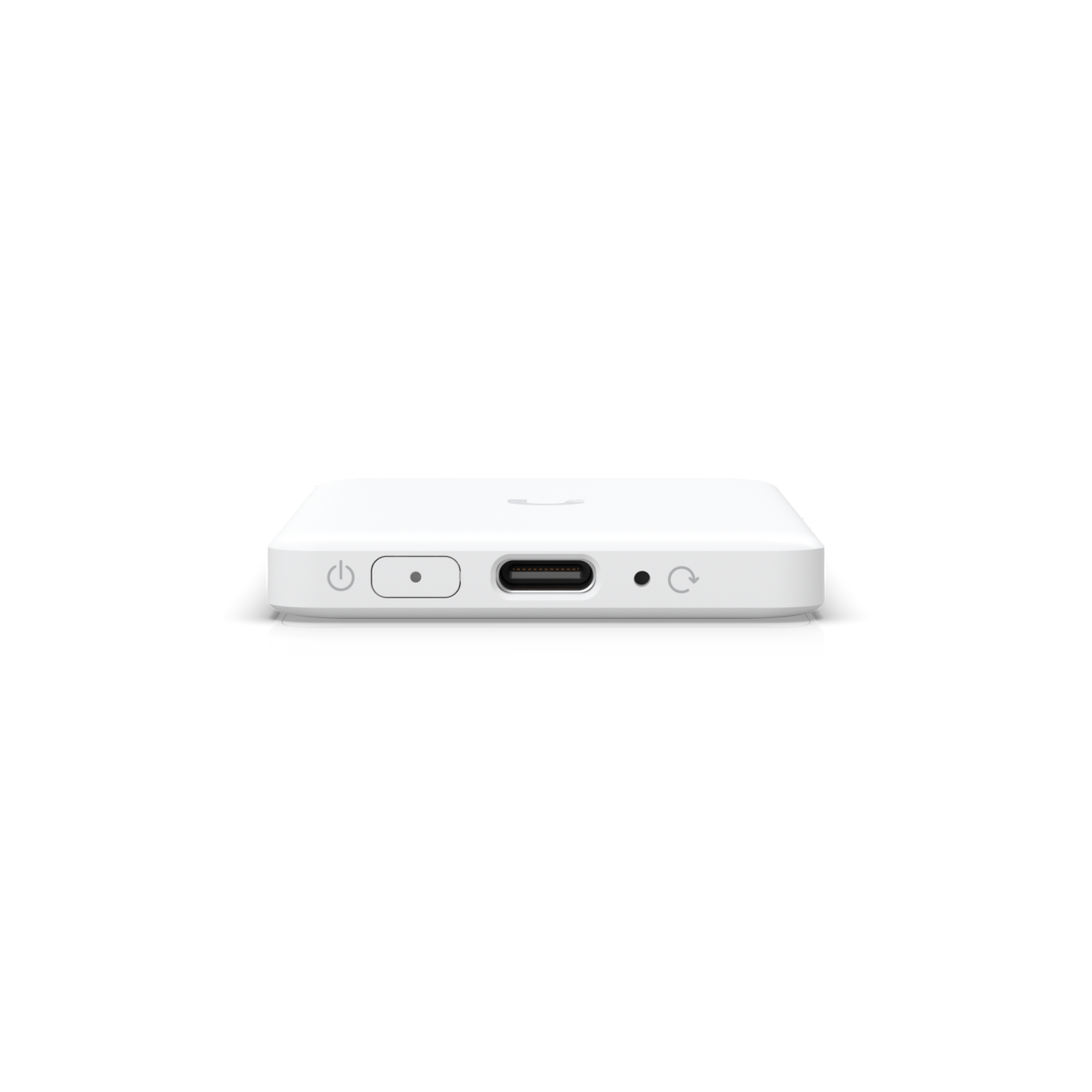

• USB-C Charging Port: Convenient charging options with modern USB-C compatibility.
• iPhone MagSafe Attachable Support: Offers compatibility with iPhone MagSafe cases for easy attachment and portability.

Specifications

• Dimensions: 78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3 inches)
• Weight: 32 g (1.1 oz)
• Enclosure Material: Plastic
• Weatherproofing: IP55 rated for protection against dust and water
• Power Method: Rechargeable Li-ion battery, 3.7V DC, 300mAh
• Max Power Consumption: 32.4mW
• Charger Voltage: USB-C, 5V DC/1A
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Operating Humidity: 10 to 90% non-condensing
• Frequency Range: 2.4 to 2.5 GHz and 5.15 to 5.85 GHz
• Amplitude Range: -96 dBm to 0 dBm
• Amplitude Resolution: 1 dBm
• Management Application: Compatible with UniFi WiFiMan iOS™ and Android™ apps
