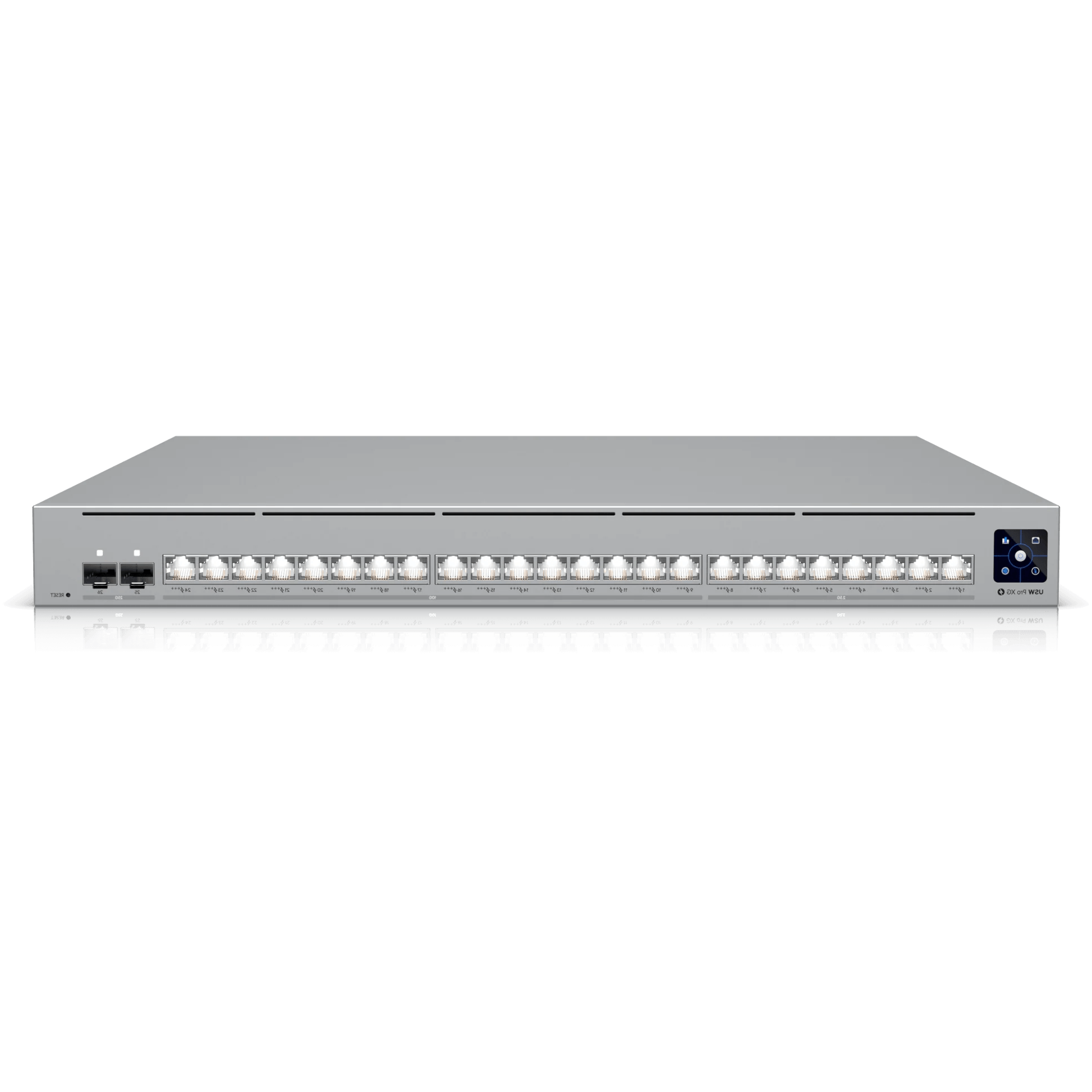

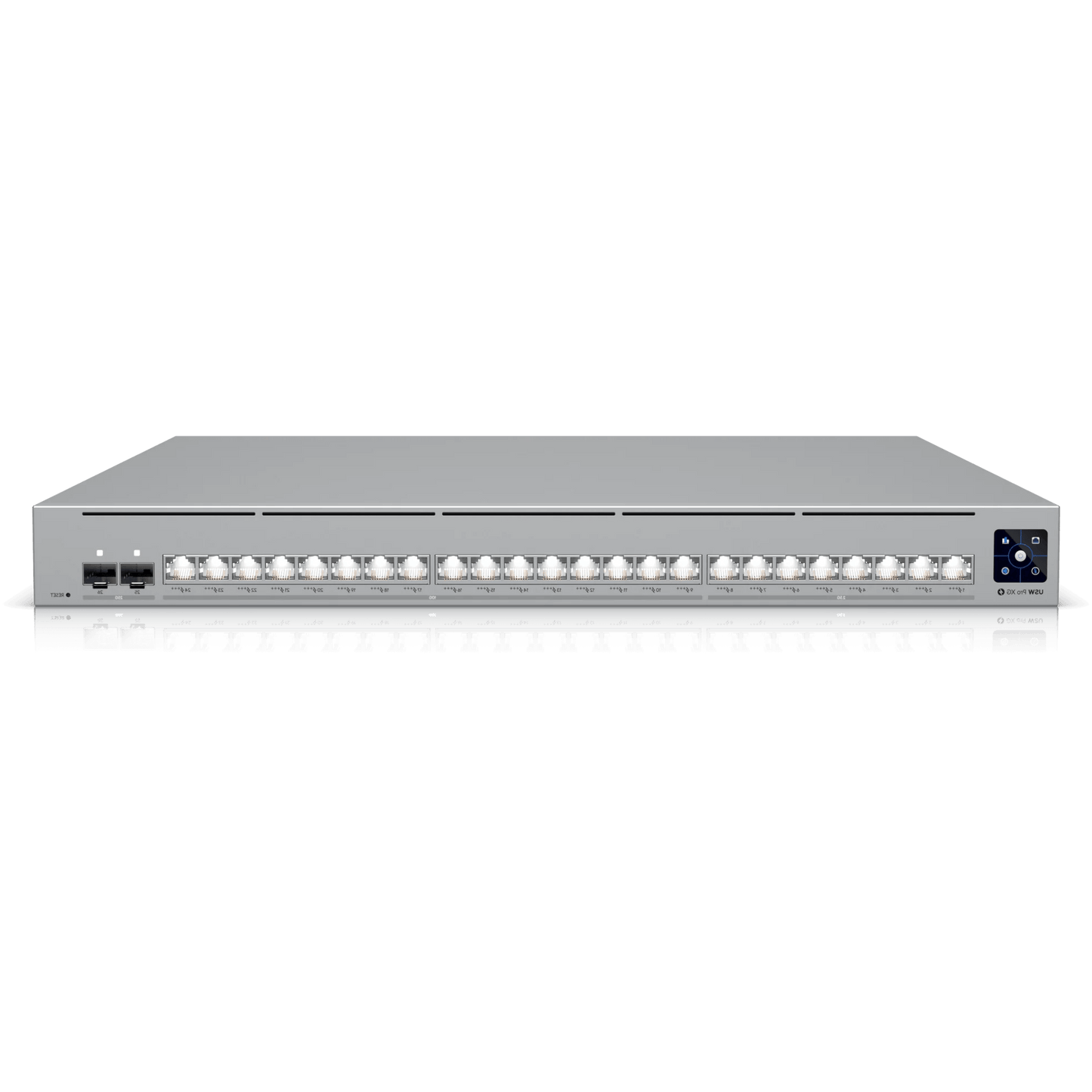

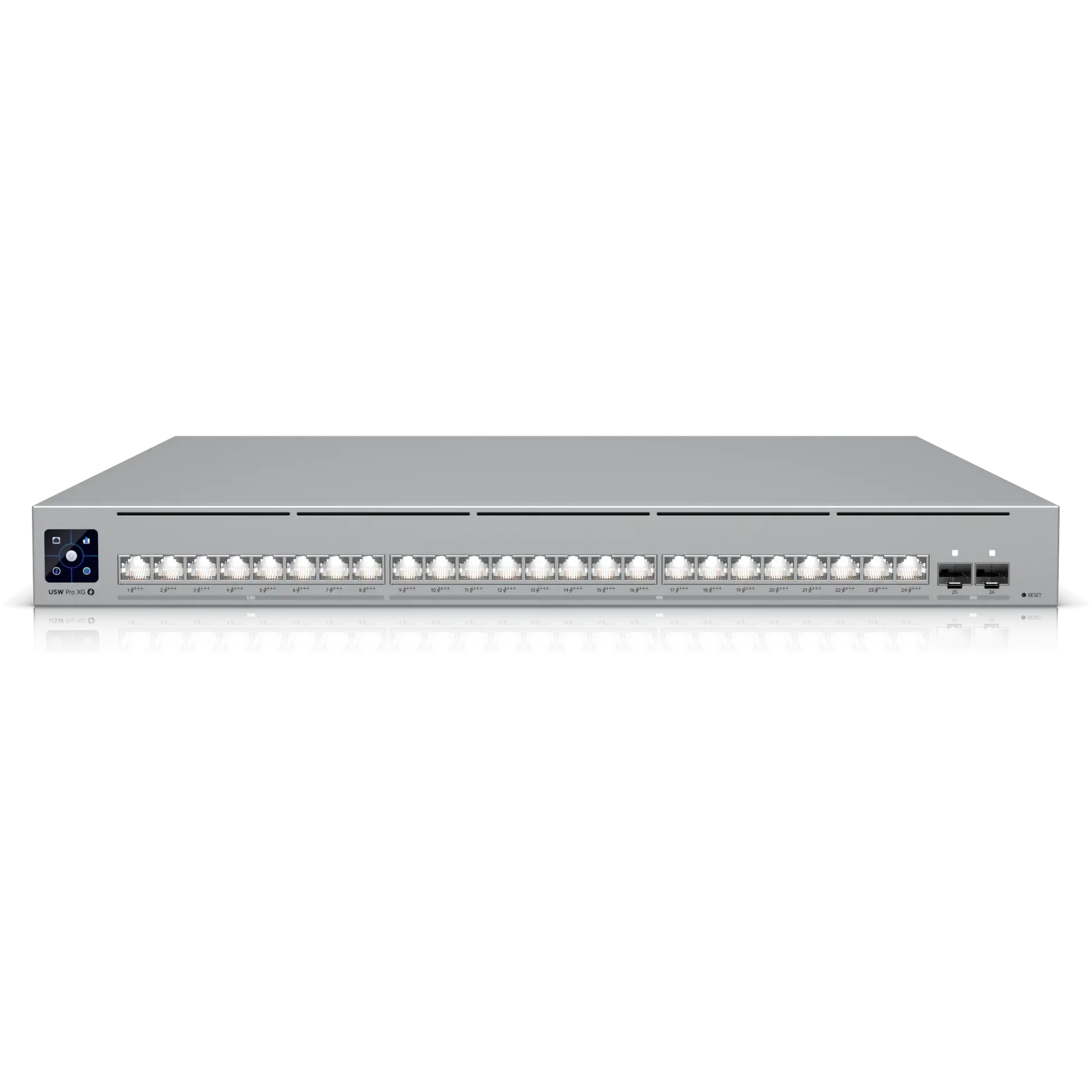

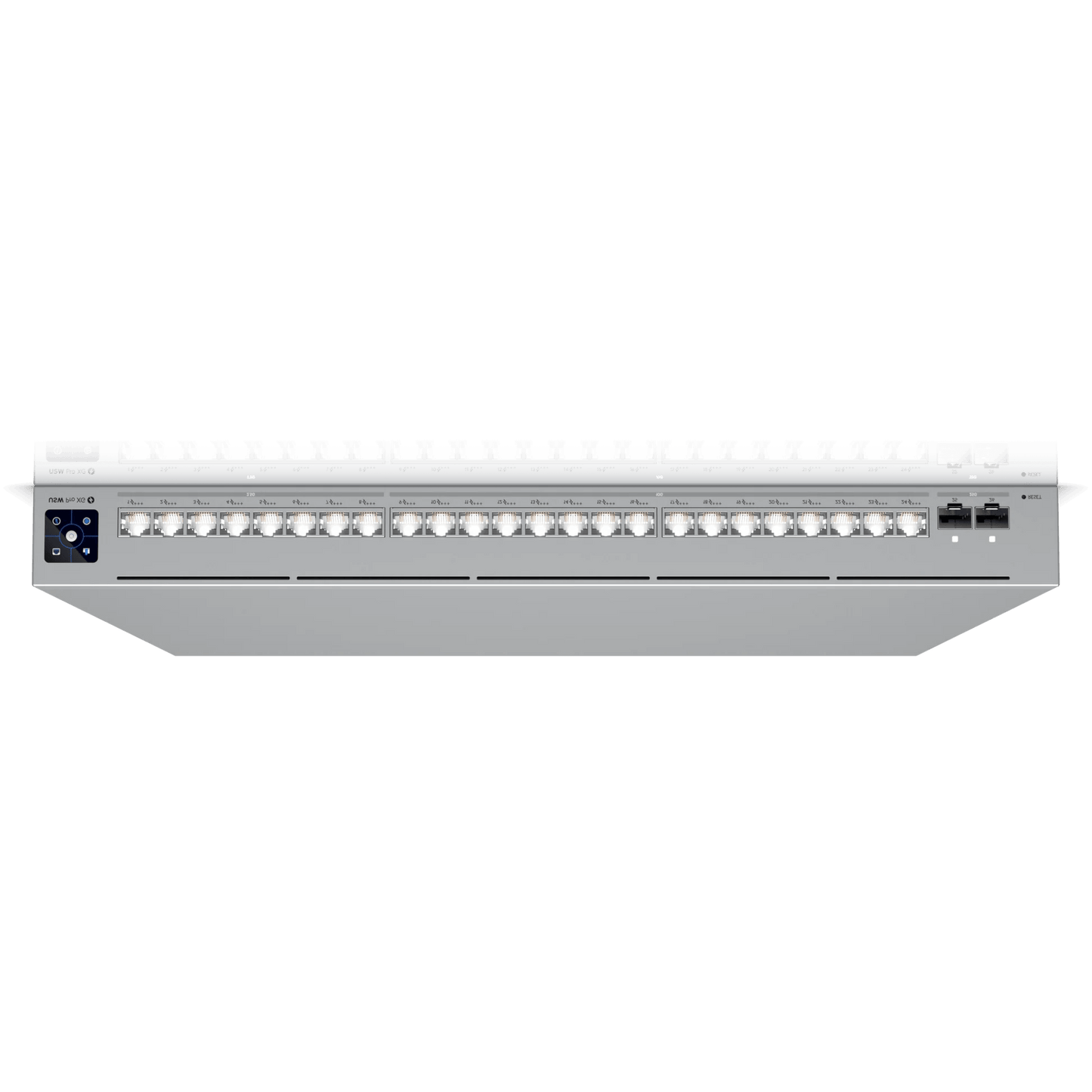

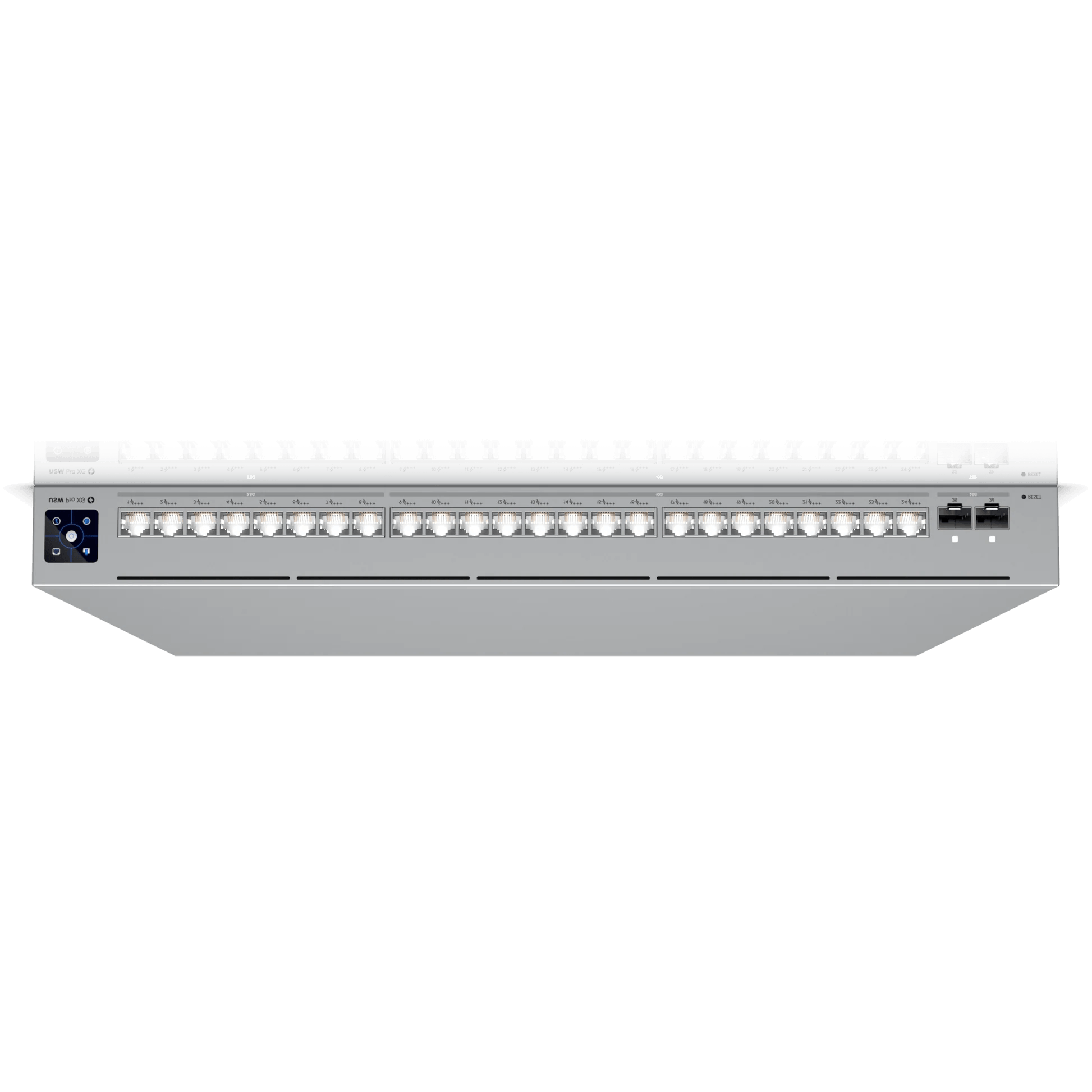

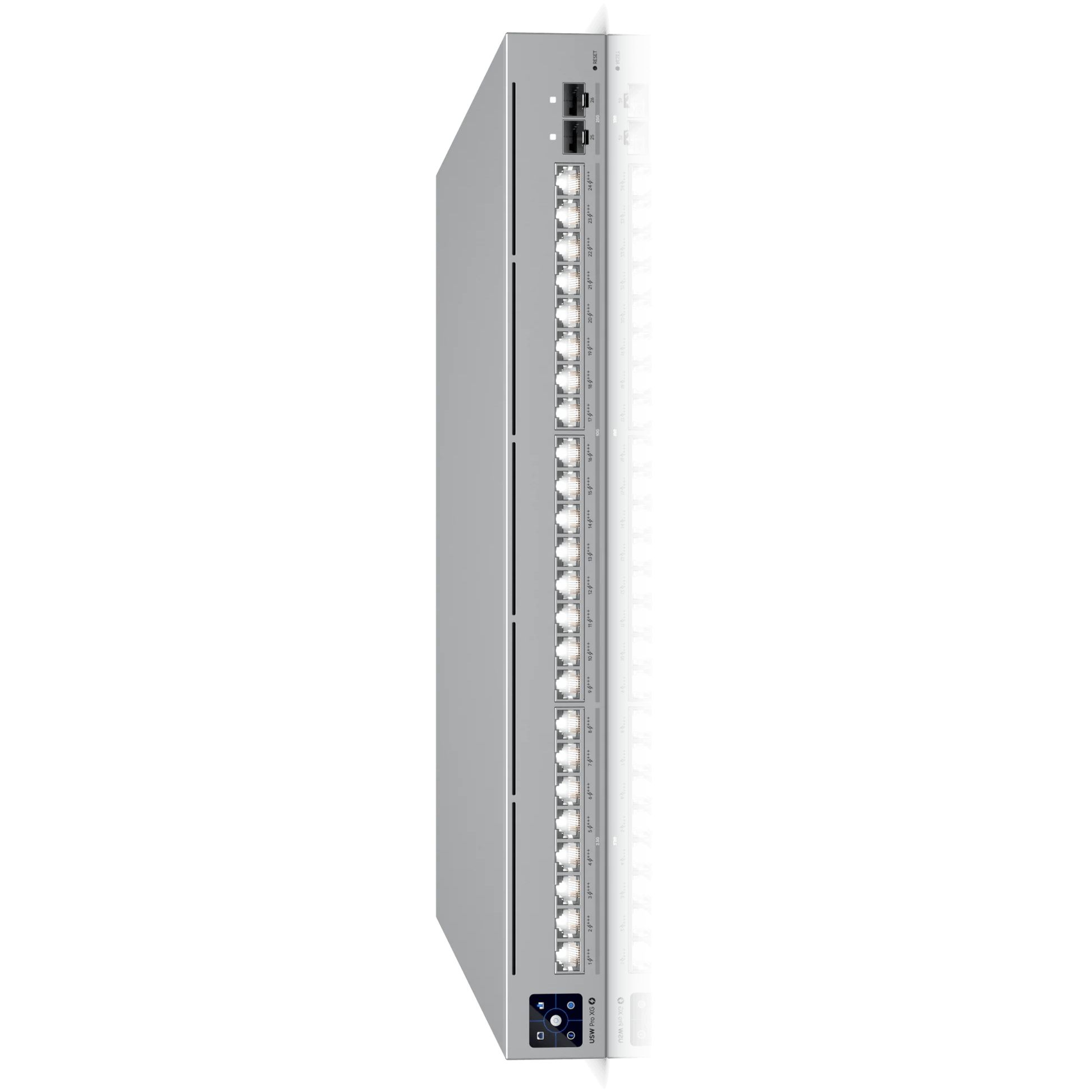

Ubiquiti UniFi Pro XG Switch 16 x 10Gbps 8 x 2.5Gbps PoE+++ 2SFP28 720W | USW-Pro-XG-24-PoE

The Ubiquiti UniFi Pro XG 24 PoE (USW-Pro-XG-24-PoE) is a professional-grade, 24-port Layer 3 managed switch designed to meet the demands of high-performance networking environments. It features 16 10G RJ45 Ethernet PoE++ ports, 8 2.5G RJ45 Ethernet PoE++ ports, and 2 25G SFP28 ports, providing versatile connectivity options for various devices. With a total PoE budget of 720W, it can power multiple PoE-compatible devices, such as advanced IP security cameras and access points. The switch offers a switching capacity of 460 Gbps and a forwarding rate of 342 Mpps, ensuring smooth and reliable data transfers. Additional features include a 1.3-inch touchscreen for monitoring and management, Etherlighting™ technology for illuminated port indicators, and dual power input for redundancy.

Features

• 16 x 10G RJ45 Ethernet PoE++ ports
• 8 x 2.5G RJ45 Ethernet PoE++ ports
• 2 x 25G SFP28 ports
• Total PoE budget of 720W
• Switching capacity of 460 Gbps
• Forwarding rate of 342 Mpps
• 1.3-inch touchscreen for monitoring and management
• Etherlighting™ technology for illuminated port indicators
• Dual power input for redundancy
• Advanced Layer 3 features, including DHCP Server, DHCP Relay, Inter-VLAN Routing, and Static Routing
• Layer 2 features such as LACP Port Aggregation, STP & RSTP, QoS (DSCP), and IGMP Snooping

Specifications

• Switching Capacity: 460 Gbps
• Total Non-Blocking Throughput: 230 Gbps
• Forwarding Rate: 342 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 128,000
• L3 Table Size: ARP Entries: 128,000; IPv4 Routes: 256,000
• Packet Buffer Size: 8 MB
• Access Lists: IPv4: 256; MAC: 256
• Max. Power Consumption: 150W
• Power Method: Universal input, 100–240V AC, 50/60 Hz; USP RPS DC input
• Power Supply: AC/DC, internal, 200W
• Supported Voltage Range: 100–240V AC
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 482.6 mm (19") four-post racks; post depths ranging from 600 to 1,066 mm (23.6–42")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ±30kV, contact: ±20kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™: Yes
• LEDs: RPS
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06464-25-08356
• Software Application Requirements: UniFi Network Version 9.0.114 and later
