Ubiquiti UniFi Pro XG Switch 10 x 10Gbps PoE+++ 2SFP+ 400W | USW-Pro-XG-10-PoE

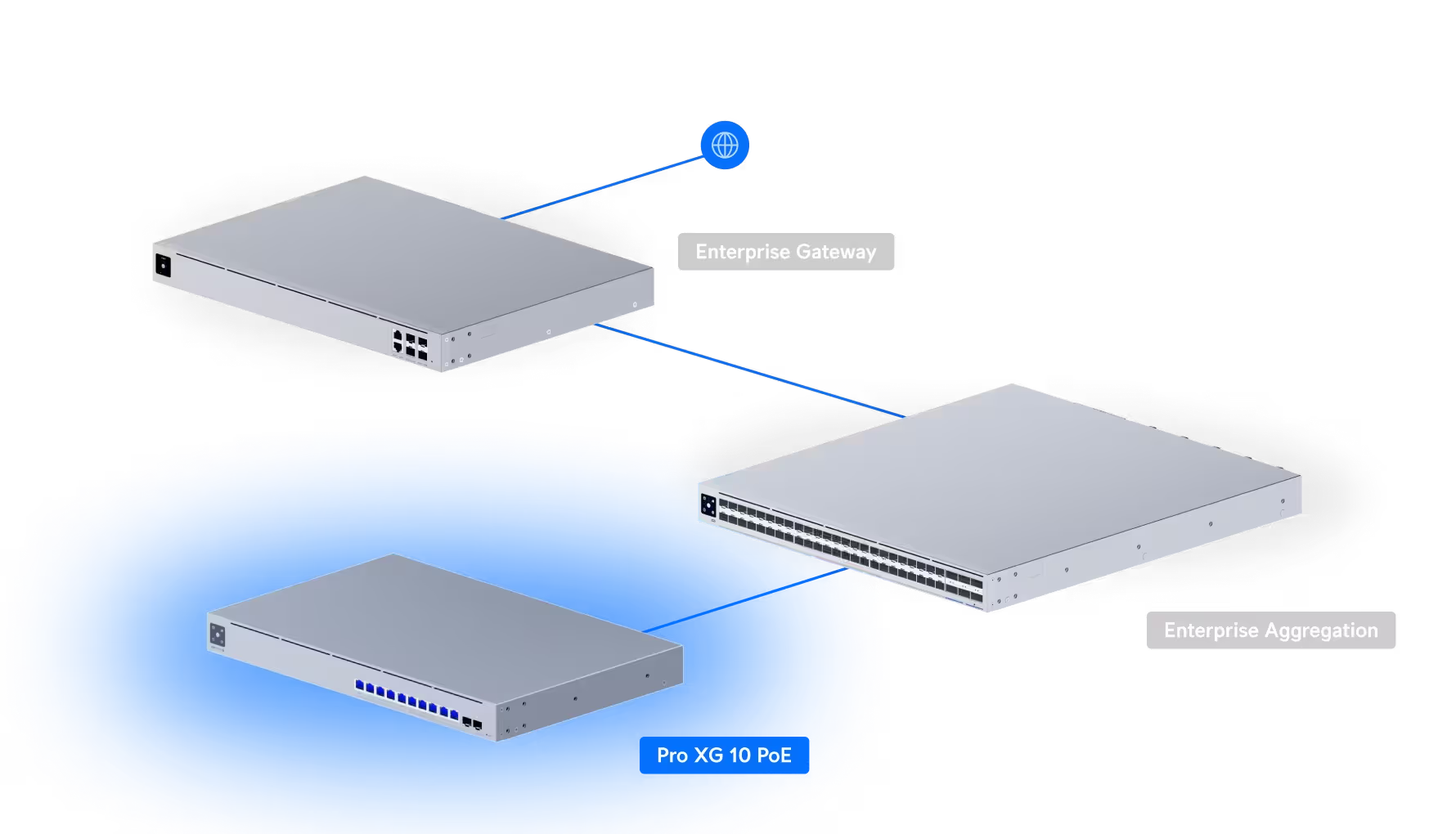

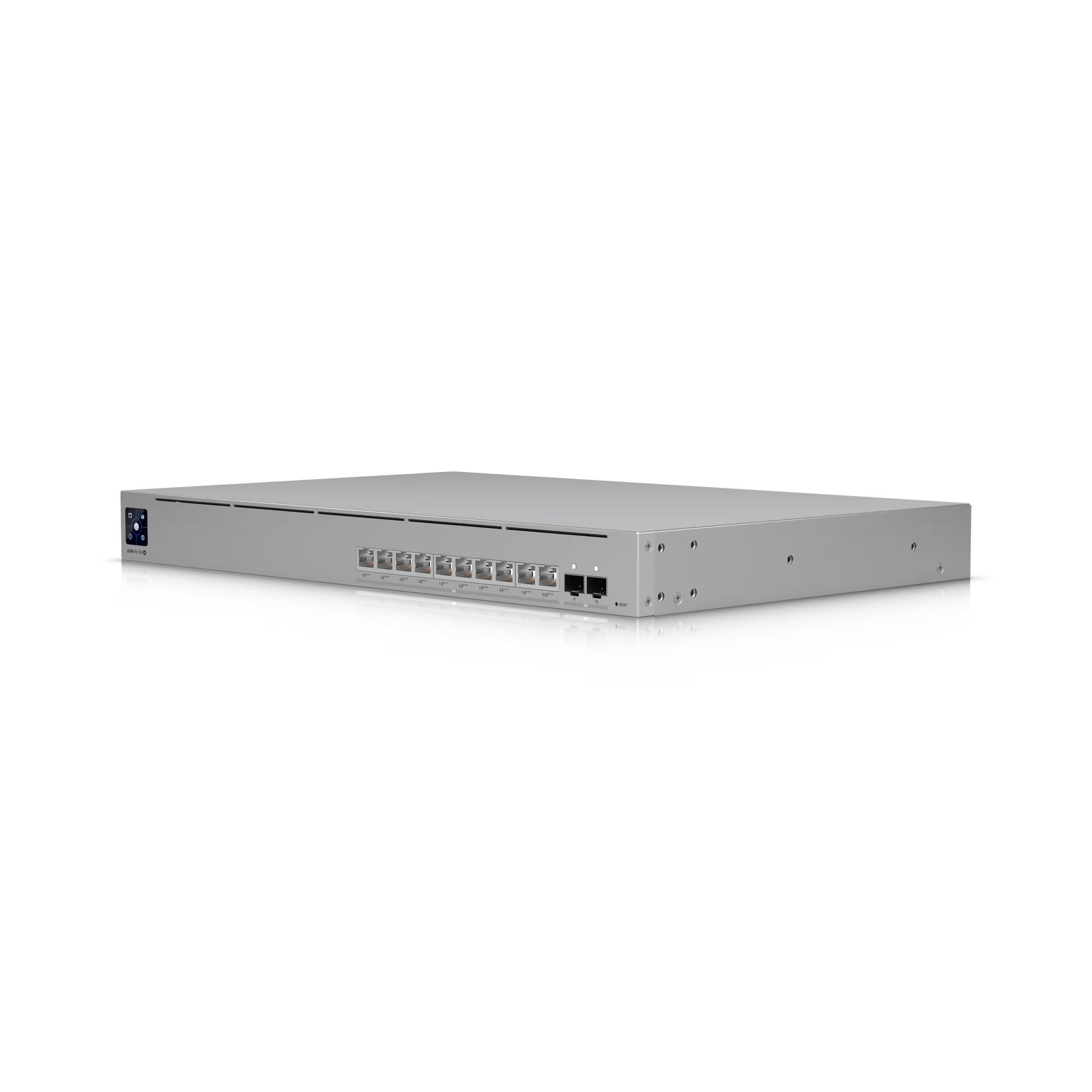

The Ubiquiti UniFi Pro XG 10 PoE (USW-Pro-XG-10-PoE) is a professional-grade, 1U rack-mountable Layer 3 switch designed for high-performance networks. With ten 10 GbE RJ45 ports and two 10G SFP+ ports, it provides a total non-blocking throughput of 120 Gbps and a switching capacity of 240 Gbps. Ideal for enterprise networks and advanced IP surveillance systems, it features PoE+++ capabilities, delivering up to 90W per port with a total budget of 400W. The Etherlighting™ technology enhances usability, illuminating port locations and speeds for easier management.

Features

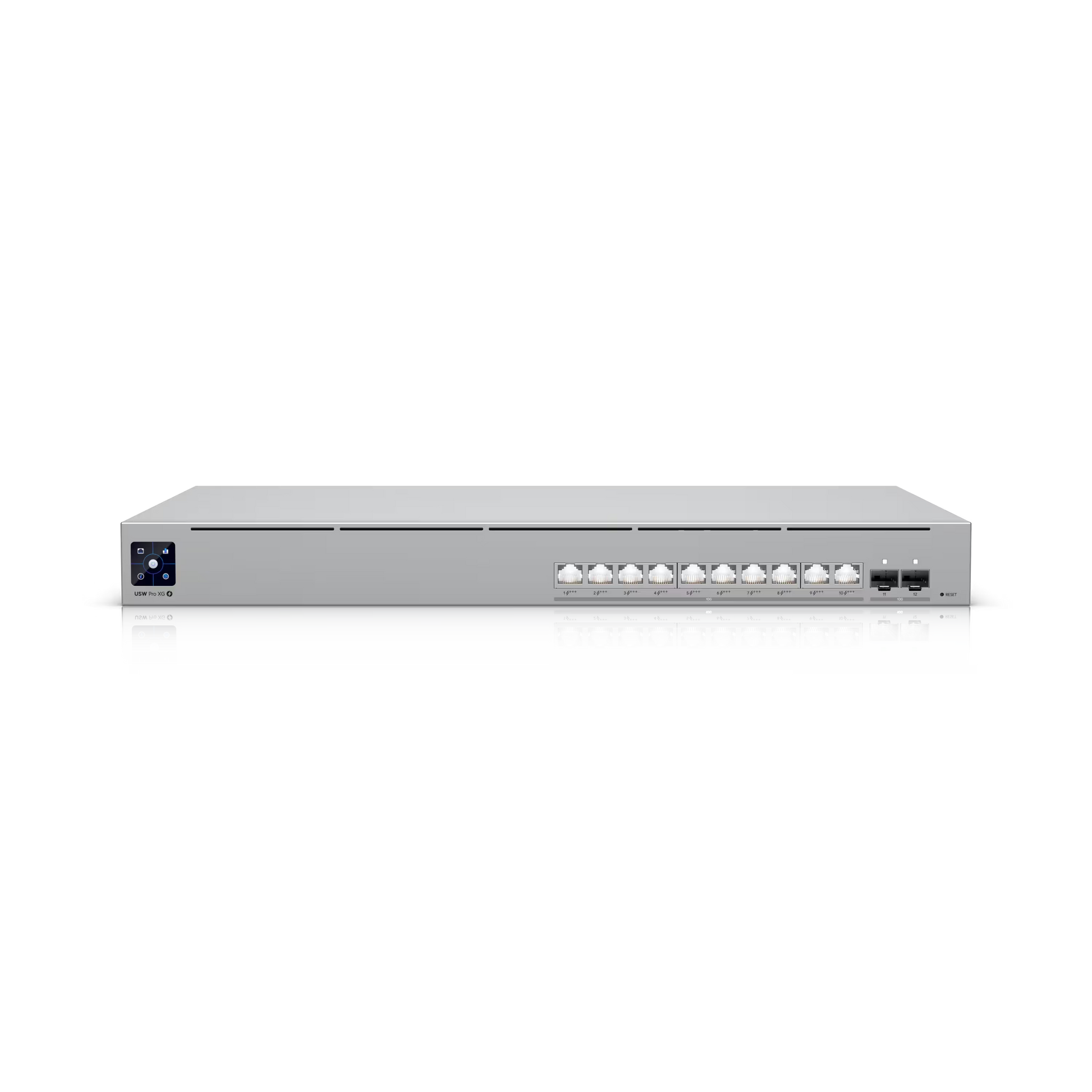

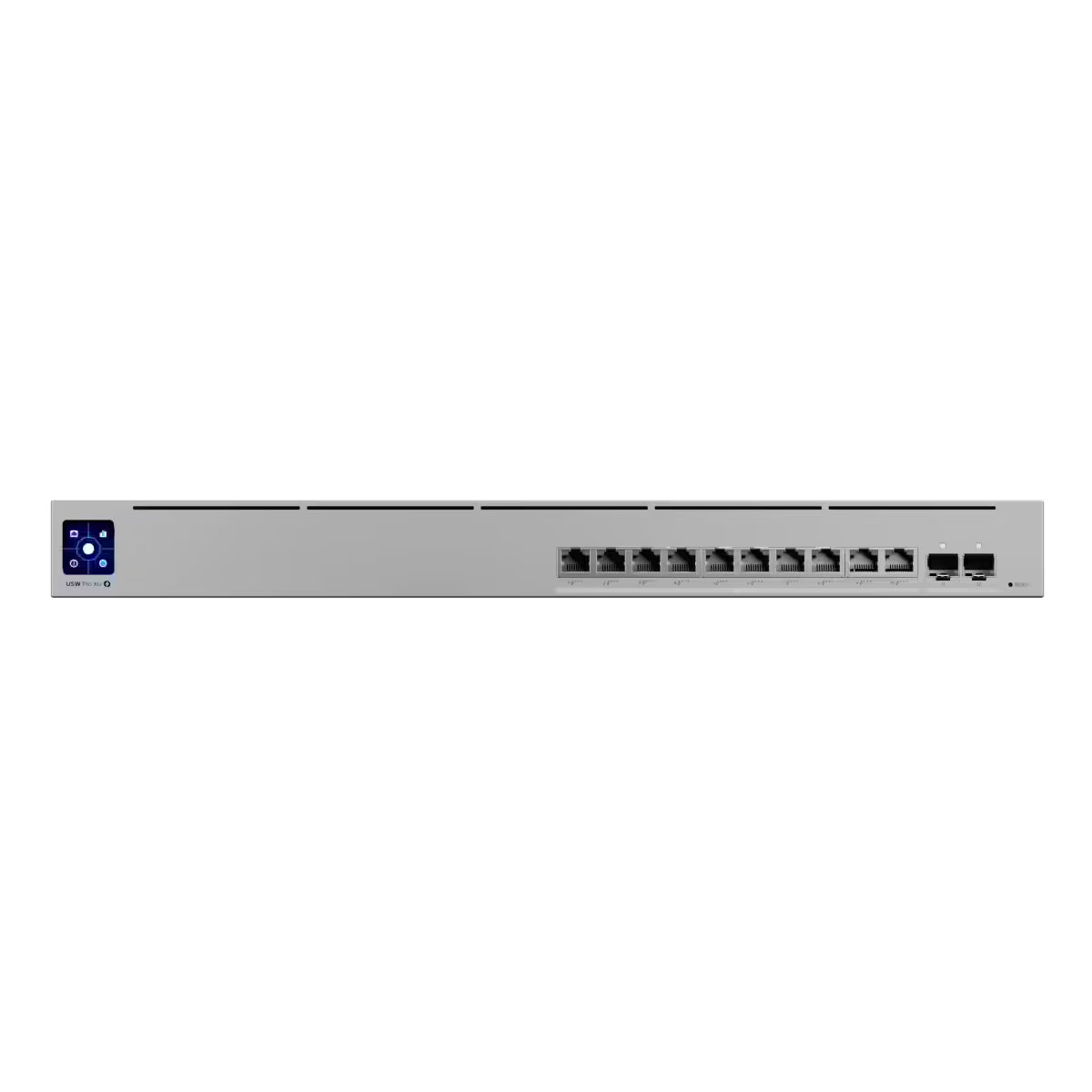

• High-Speed Connectivity: Ten 10 GbE RJ45 ports supporting multiple speeds (10G/5G/2.5G/1G/100M) and two 10G SFP+ ports for fiber uplinks.
• PoE+++ Support: Each RJ45 port delivers up to 90W of power, with a total PoE budget of 400W.
• Layer 3 Functionality: Supports DHCP Server, DHCP Relay, Inter-VLAN Routing, and Static Routing.
• Etherlighting™ Technology: Illuminated ports indicate port location, speed/link status, and VLAN assignments.
• Advanced Layer 2 Features: Includes LACP Port Aggregation, STP & RSTP, QoS (DSCP), IGMP Snooping, 802.1X Control, and more.
• Redundancy and Reliability: Supports DC power backup via UniFi SmartPower RPS (USP RPS).
• User-Friendly Management: 1.3" touchscreen display for real-time monitoring and configuration.
• Robust Build: Constructed with SGCC steel for durability.

Specifications

• Switching Capacity: 240 Gbps
• Total Non-Blocking Throughput: 120 Gbps
• Forwarding Rate: 179 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000 entries
• Packet Buffer Size: 2 MB
• Power Supply: Internal AC/DC, 550W
• Max. Power Consumption: 65W (excluding PoE output), 520W (including PoE output)
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC, Anatel: 05660-25-08356
