Ubiquiti UniFi Pro Max Switch 48 with 32 Gigabit 16x 2.5Gbps 4SFP+ | USW-Pro-Max-48

The Ubiquiti UniFi Pro Max Switch 48 (USW-Pro-Max-48) is a high-performance, 48-port Layer 3 managed switch designed for enterprise networks requiring advanced routing capabilities and high-speed connectivity. Featuring 16 2.5 GbE RJ45 ports, 32 1 GbE RJ45 ports, and 4 10G SFP+ ports, it provides versatile options for connecting a variety of devices. The switch's Etherlighting™ technology offers visual feedback on port status, simplifying network diagnostics and management. With a switching capacity of 224 Gbps and support for advanced Layer 3 features, the USW-Pro-Max-48 is ideal for large offices, data centers, and campus networks that require robust and scalable networking solutions.

Features

• 48 RJ45 ports: 32 × 1G, 16 × 2.5G
• 4 × 10G SFP+ uplinks
• Switching capacity: 224 Gbps
• Total throughput: 112 Gbps
• Forwarding rate: 167 Mpps

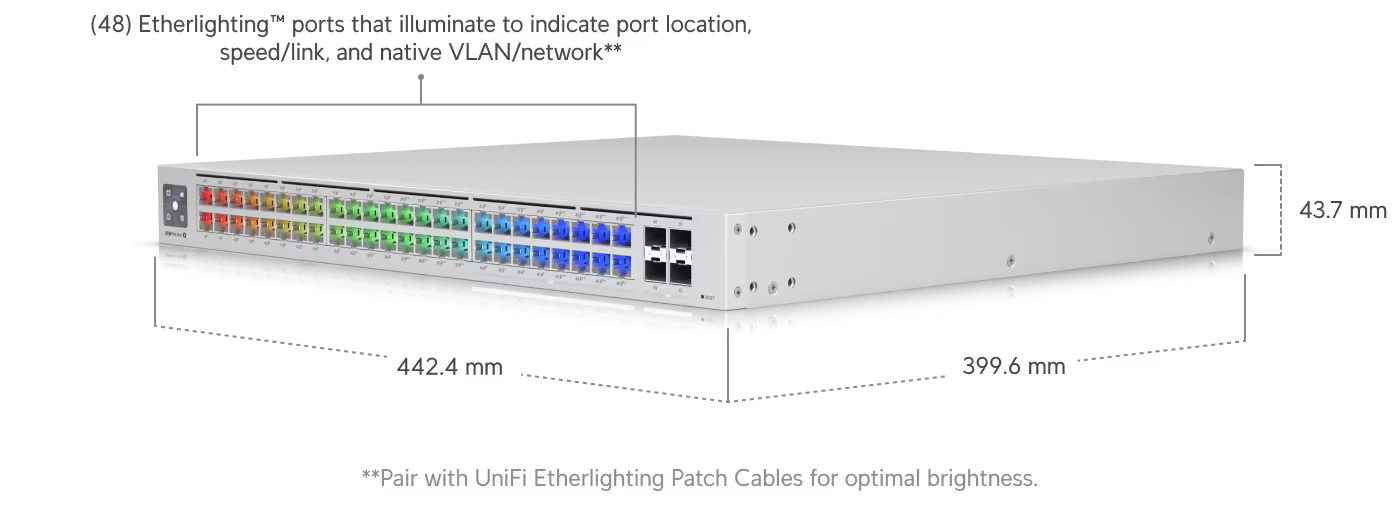

• Etherlighting™ visual port feedback
• Layer 3 routing with static, VLAN, and DHCP features
• Redundant DC power via USP RPS
• 1.3" touchscreen for local system display

Specifications

• Networking Interfaces: 32 × 1G RJ45 ports, 16 × 2.5G RJ45 ports, 4 × 10G SFP+ ports
• Performance: Switching Capacity: 224 Gbps, Non-Blocking Throughput: 112 Gbps, Forwarding Rate: 167 Mpps
• Layer 3 Features: Static Routing, Inter-VLAN Routing, DHCP Server/Relay
• Management: Managed via UniFi Network Application (version 8.0.24 and later)

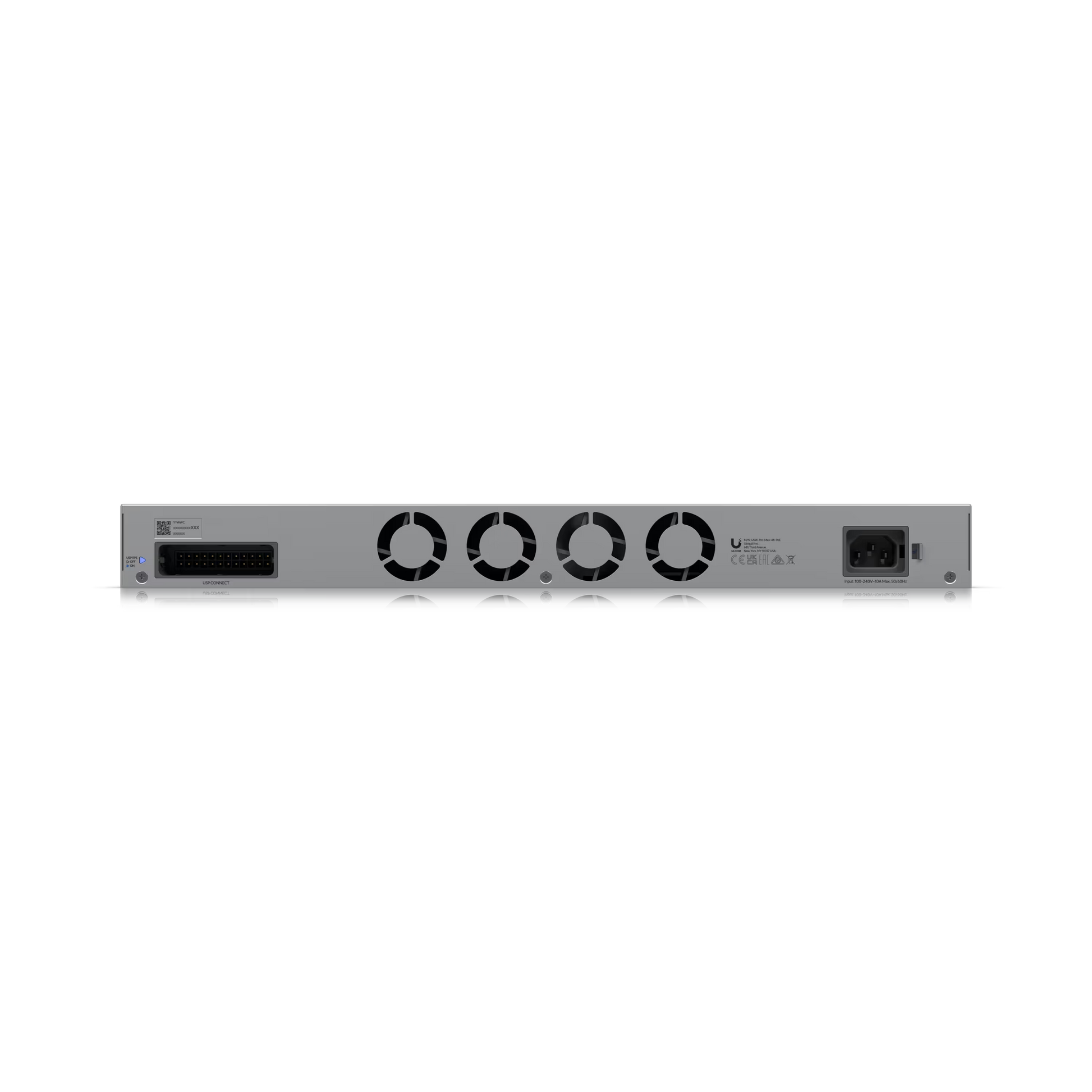

• Power: Internal AC/DC Power Supply: 100W, Redundant Power: Supported via USP RPS DC input
• Environmental: Operating Temperature: -5 to 40°C (23 to 104°F), Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC, NDAA Compliant
