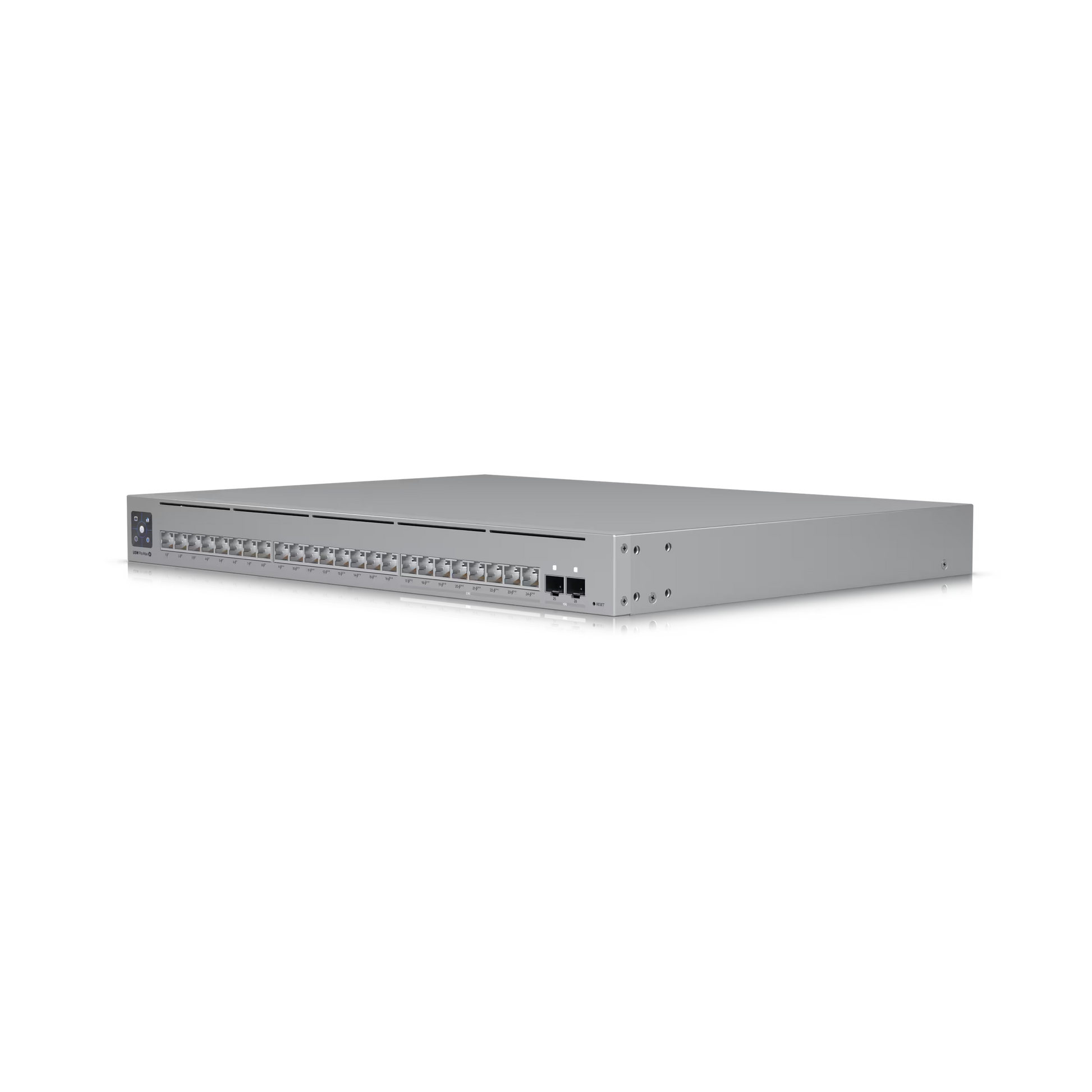

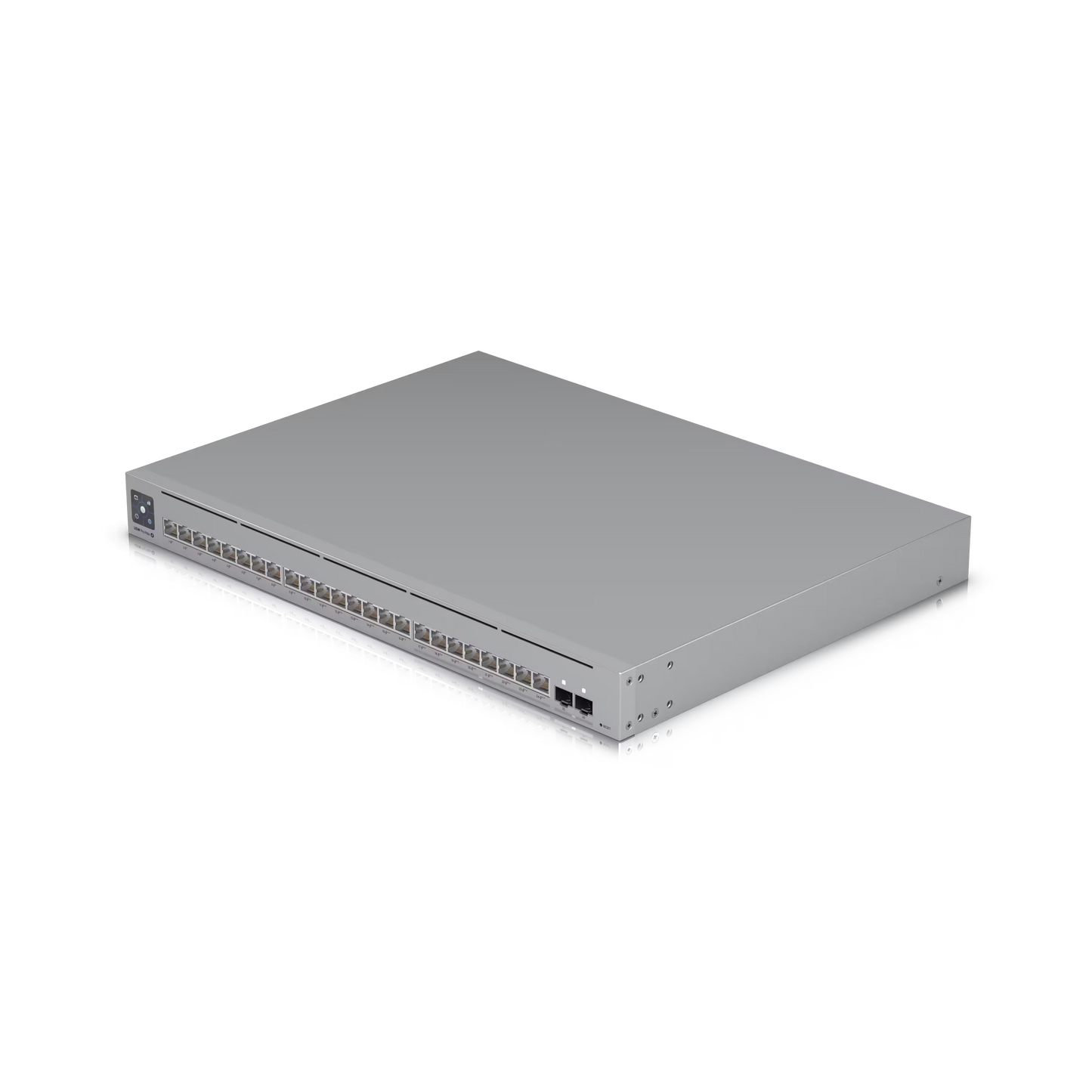

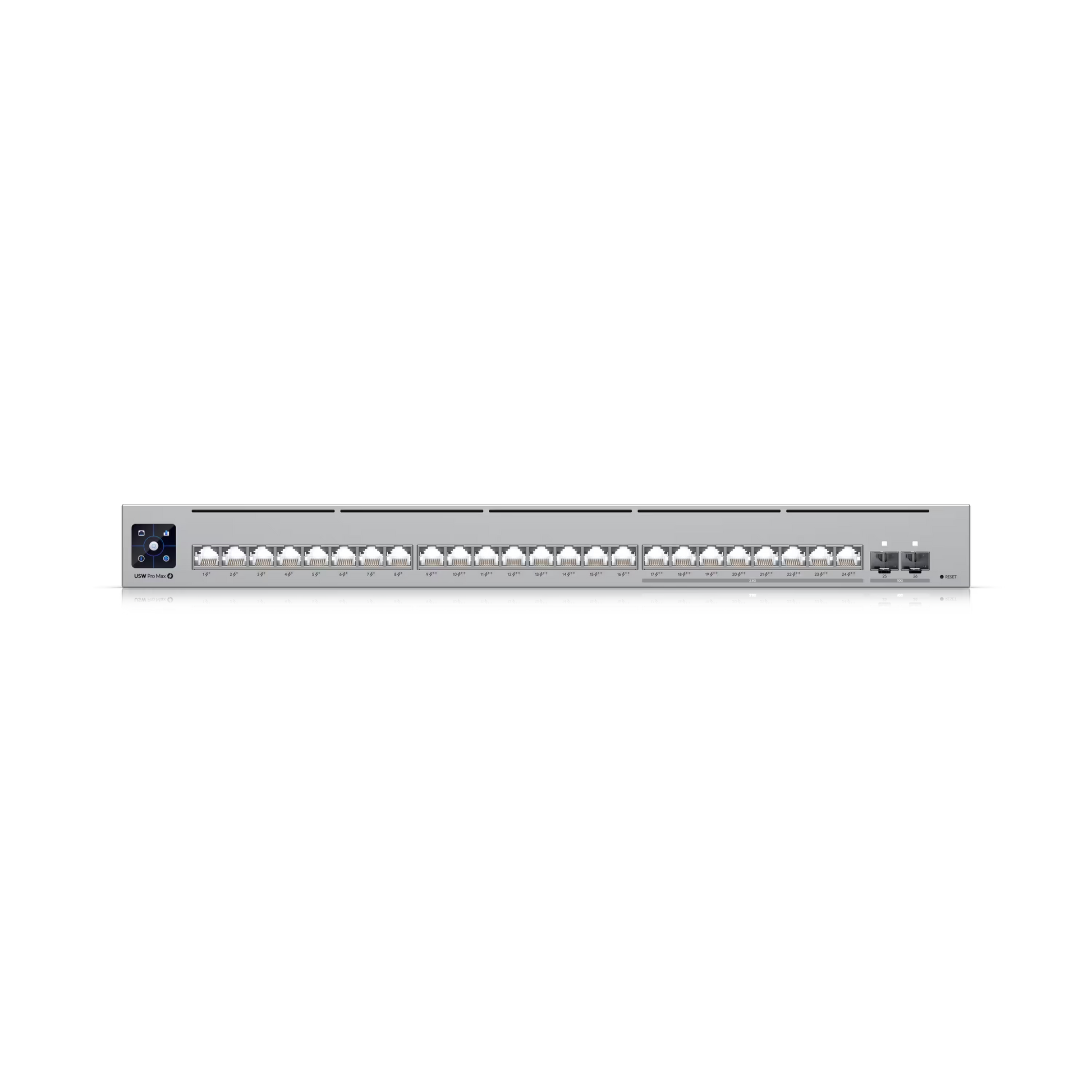

Ubiquiti UniFi Pro Max Switch 24 with 16PoE 8x 2.5Gbps PoE++ 400W | USW-Pro-Max-24-POE

The Ubiquiti UniFi Pro Max Switch 24 PoE (USW-Pro-Max-24-PoE) is a powerful 24-port, Layer 3 managed network switch designed for high-performance networking. It features advanced Power over Ethernet (PoE) capabilities, supporting a total PoE power budget of 400W. With a combination of 2.5 GbE and Gigabit Ethernet ports, this switch is ideal for powering devices such as IP cameras and access points. Its Etherlighting™ technology offers visual indicators for port status, enhancing network management and troubleshooting. The switch is equipped with a 1.3" touchscreen display for system monitoring and supports advanced networking features including VLANs, QoS, and IGMP snooping, making it perfect for medium to large-scale network deployments.

Features

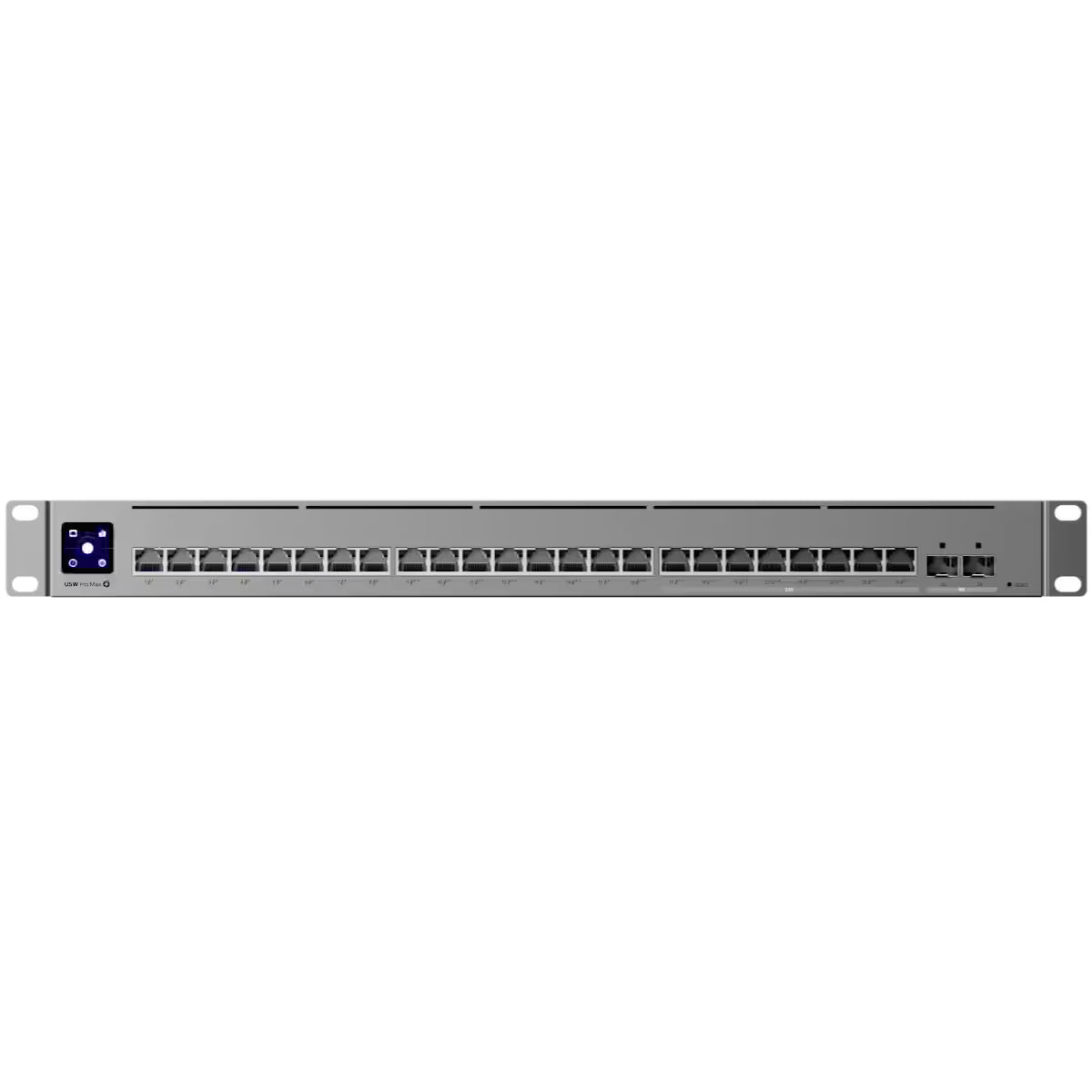

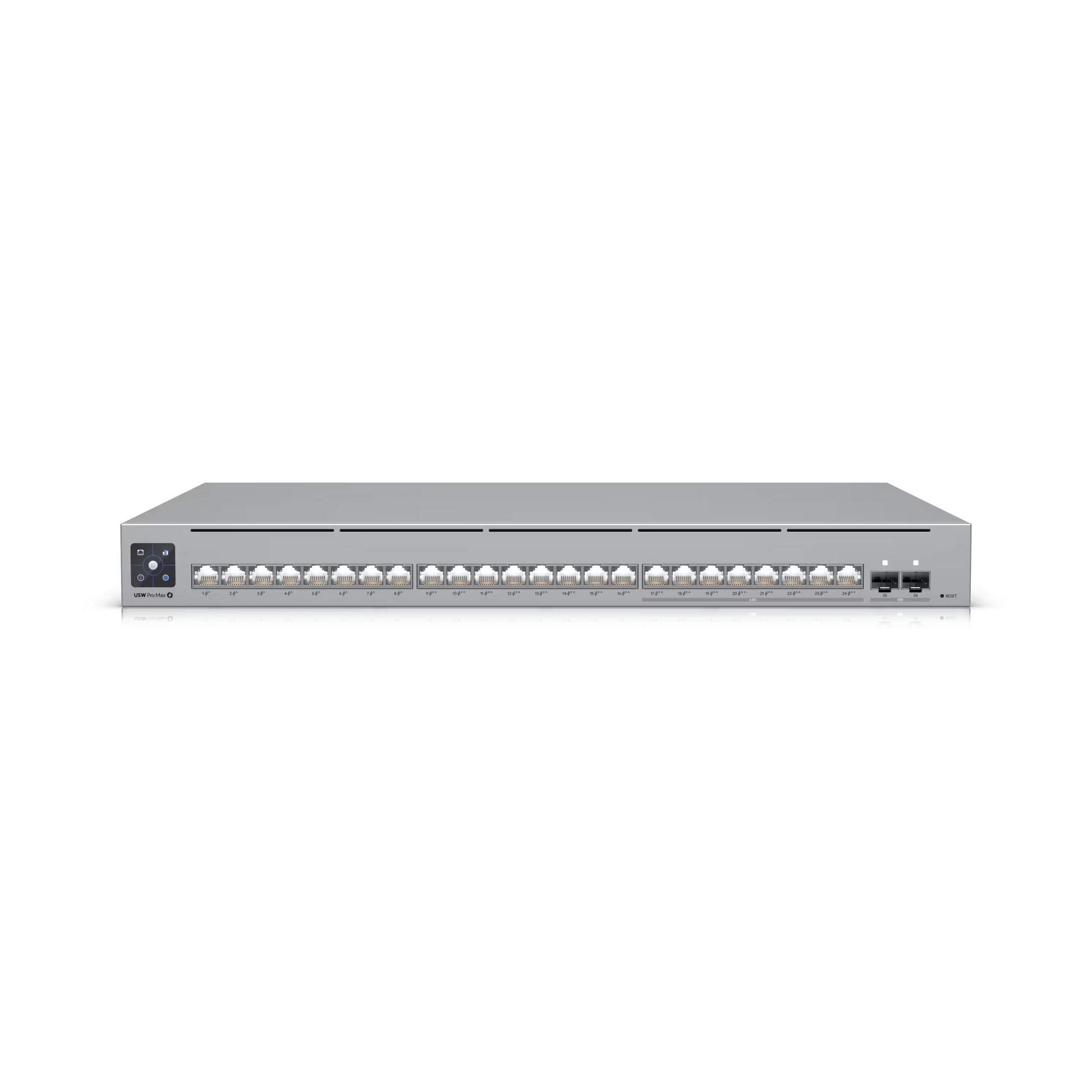

• 24 Ethernet ports: 8 x 2.5 GbE PoE++ (60W), 8 x Gigabit Ethernet PoE++ (60W), 8 x Gigabit Ethernet PoE+ (30W)
• 2 x 10G SFP+ ports for high-speed uplinks
• Total PoE availability of 400W
• Layer 3 switching capabilities

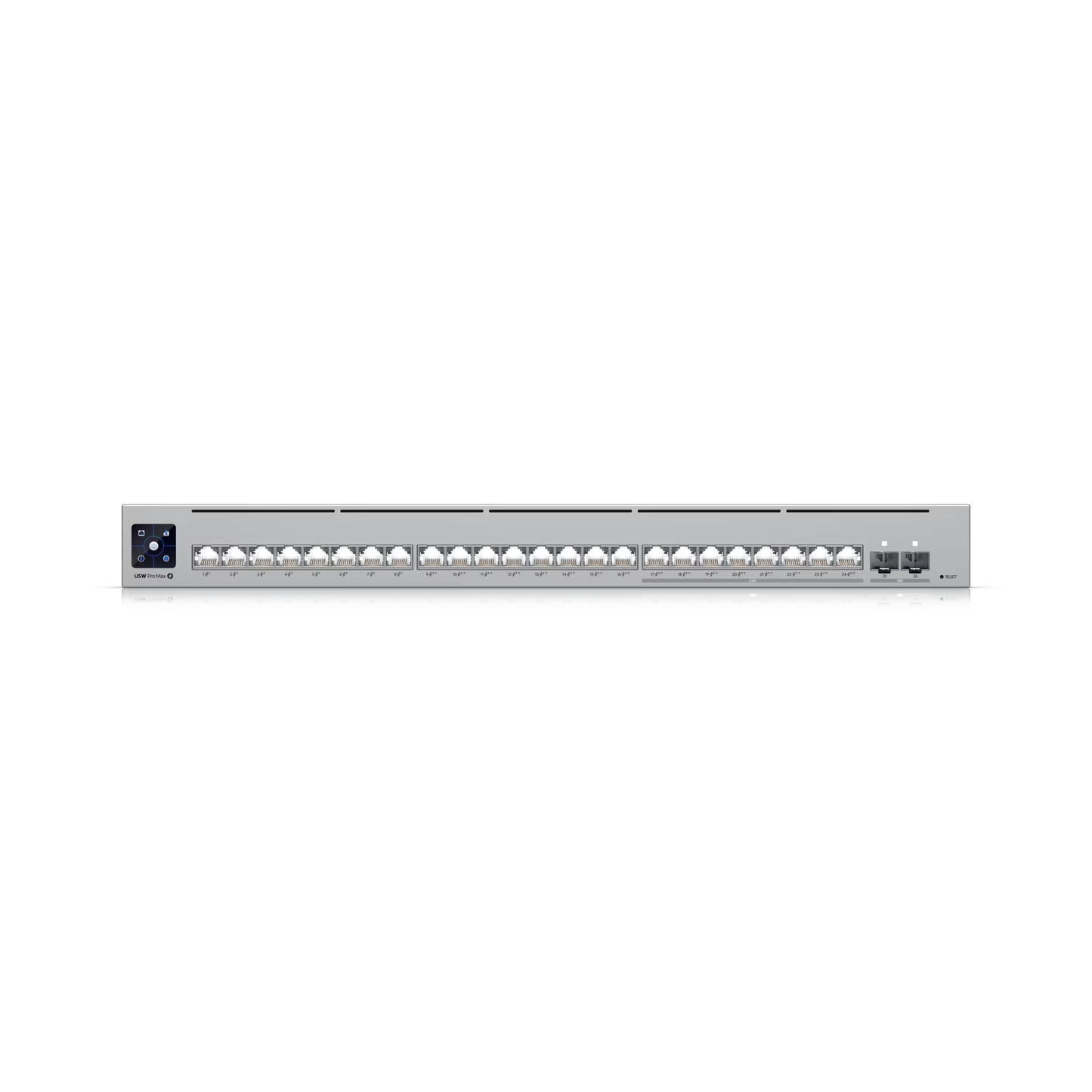

• Etherlighting™ technology for visual port status indicators
• 1.3" touchscreen display for system monitoring
• Support for advanced networking features including VLANs, QoS, and IGMP snooping
• Redundant power support with DC power backup input
• Managed via UniFi Network application

Specifications

• Switching Capacity: 112 Gbps
• Non-Blocking Throughput: 56 Gbps
• Forwarding Rate: 83 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000 entries
• Layer 3 Table Size: ARP Entries: 6,000, IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
• Access Lists: IPv4: 128, MAC: 128
• Power Consumption: 50W (excluding PoE output), 450W (including PoE output)

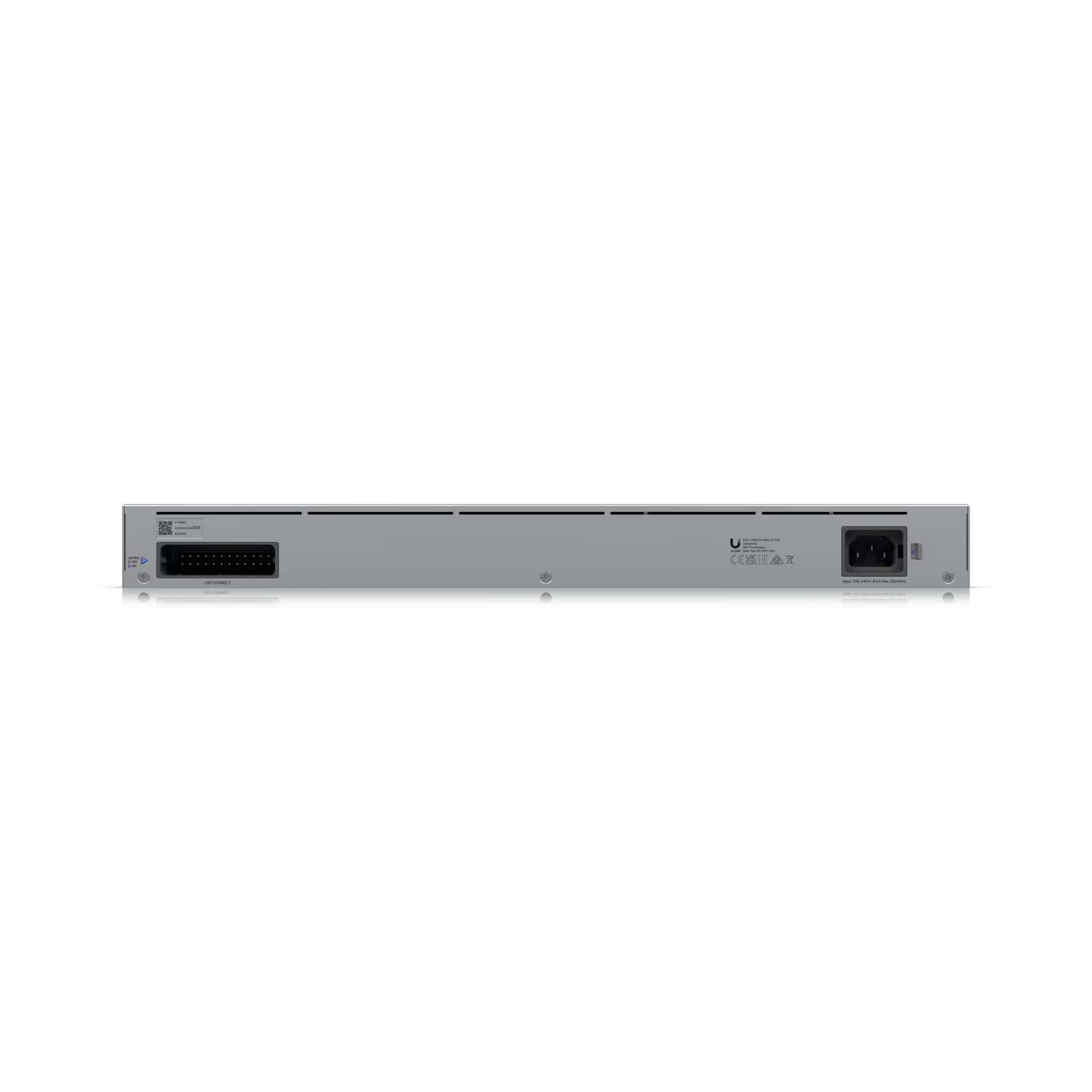

• Power Supply: Internal AC/DC, 550W
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 119 BTU/hr (excluding PoE output)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400–1200 mm (15.7–47.2")
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC, Anatel: 06374-24-08356
• Software Application Requirements: UniFi Network Version 8.0.24 and later
