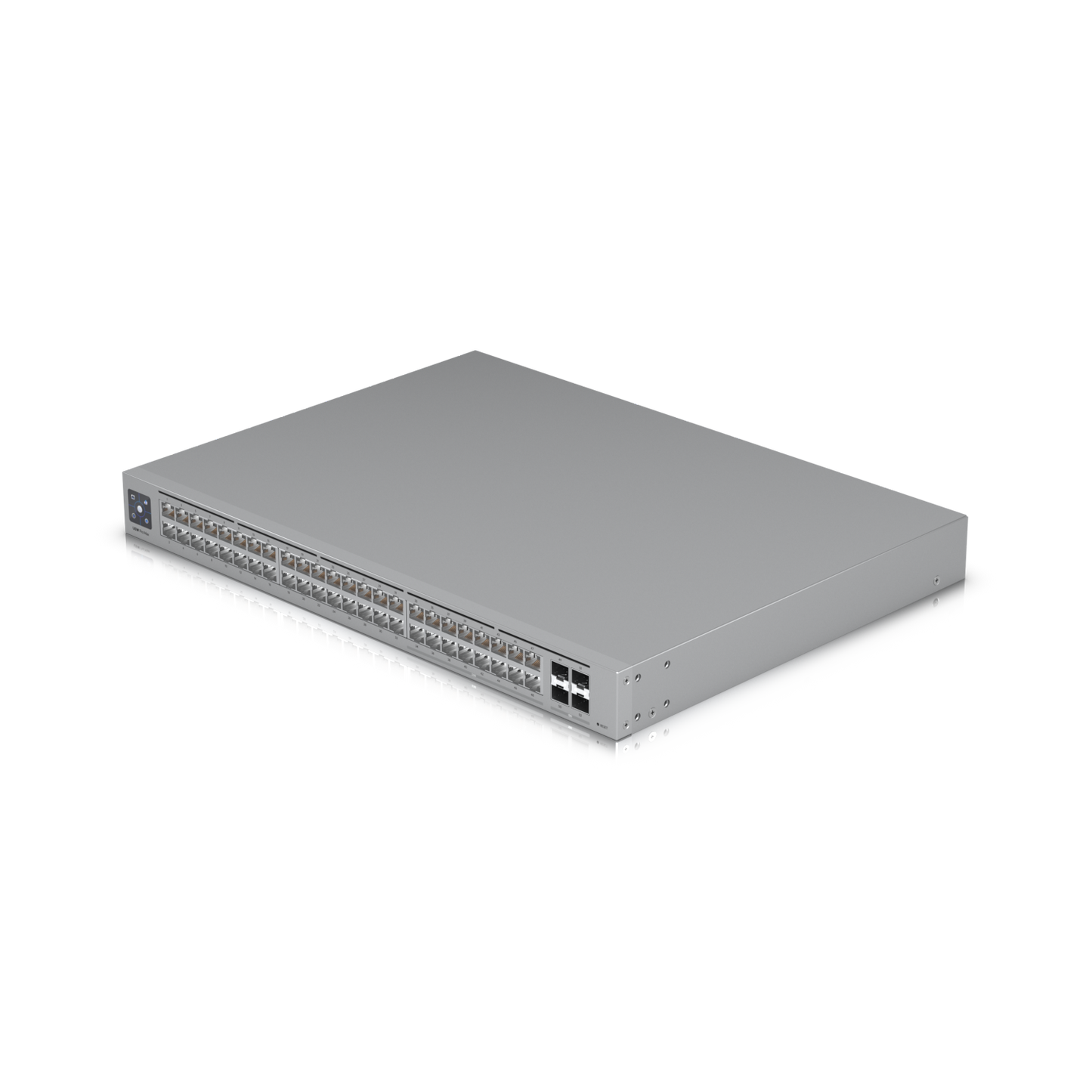

Ubiquiti UniFi Pro Max 48-Port Etherlighting Switch | USW-Pro-Max-48

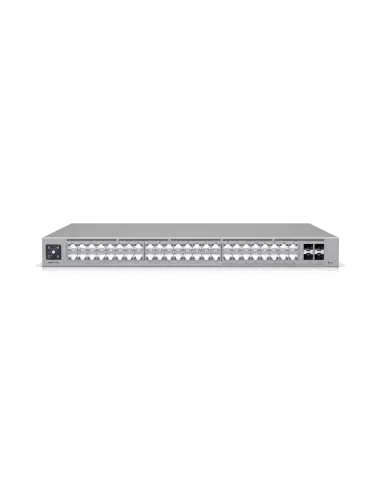

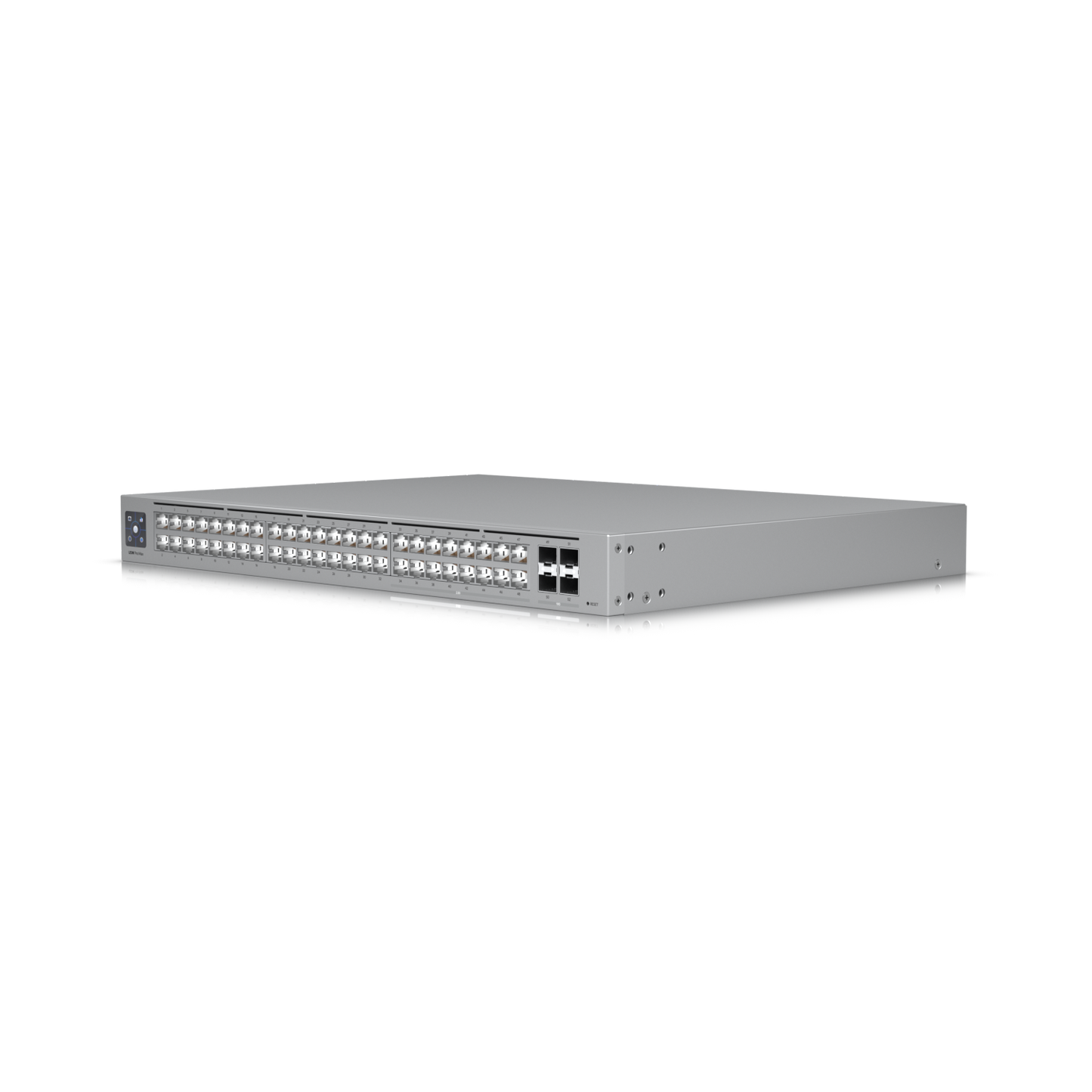

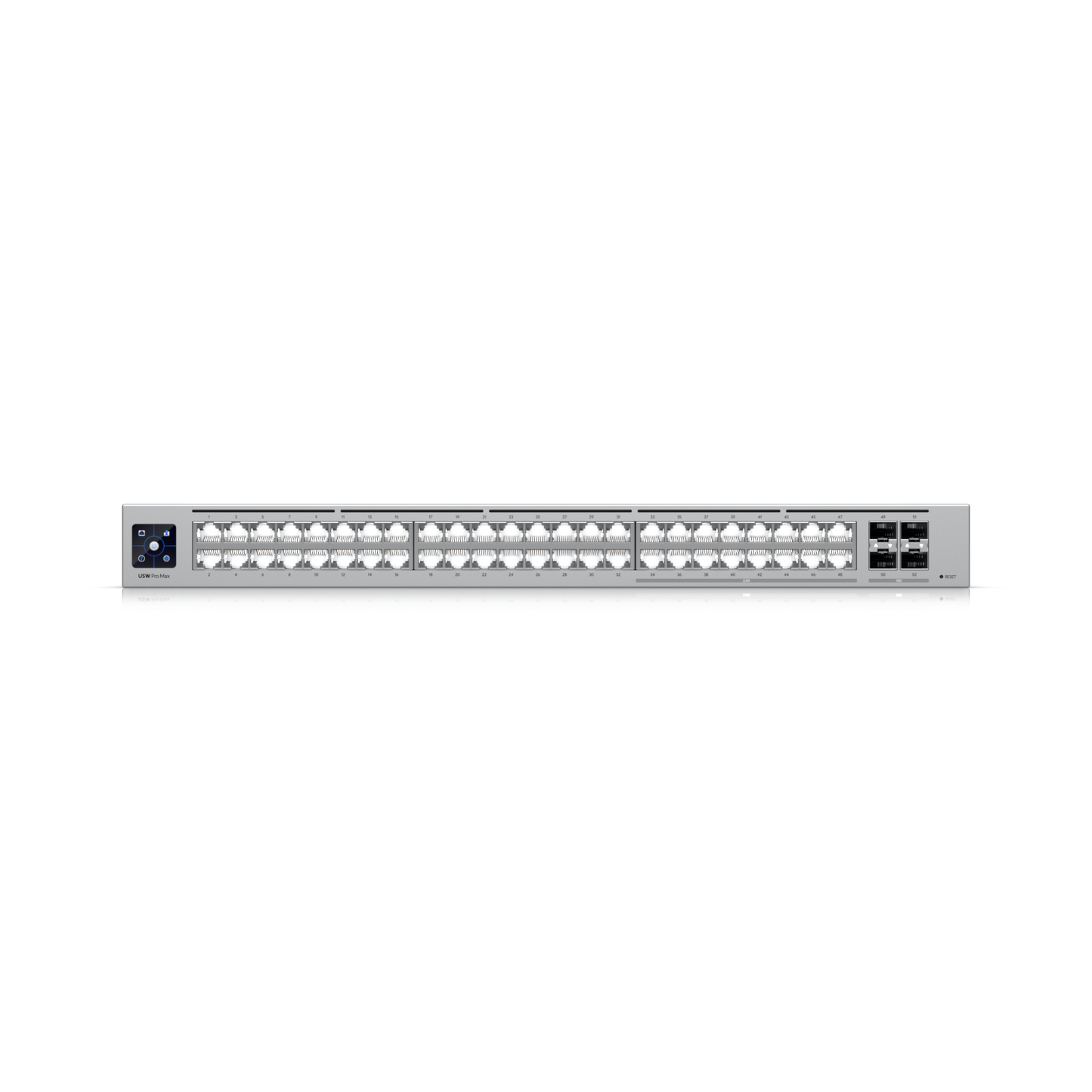

The Ubiquiti UniFi Pro Max 48-Port Etherlighting Switch is a high-performance Layer 3 switch designed for modern networking needs. With 48 ports, including 16 2.5 GbE RJ45 ports and 32 GbE RJ45 ports, it offers exceptional throughput and versatility for enterprise and ISP environments. The Etherlighting™ feature enhances cable management by illuminating ports to indicate their status, making it easier to identify connections and troubleshoot issues.

Features

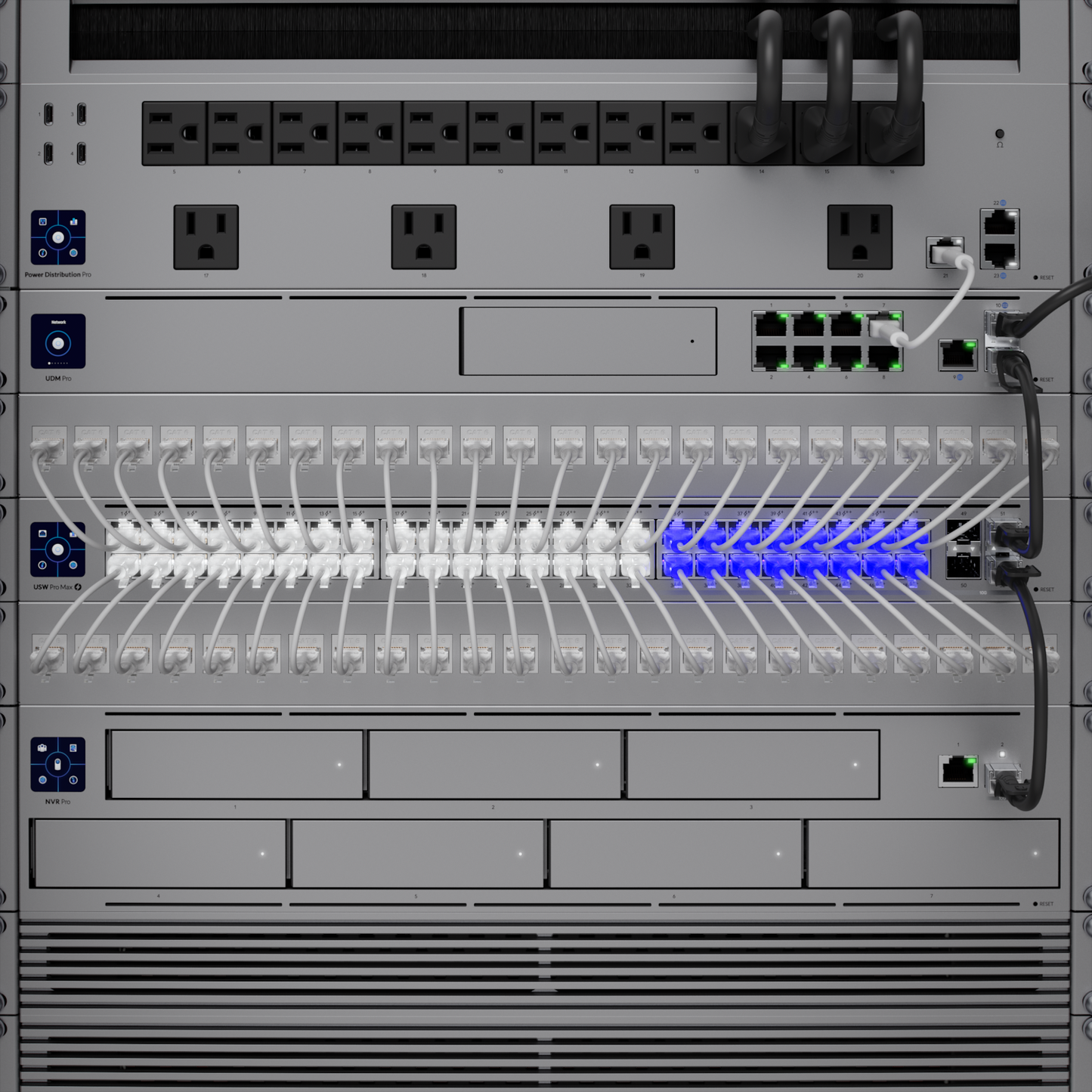

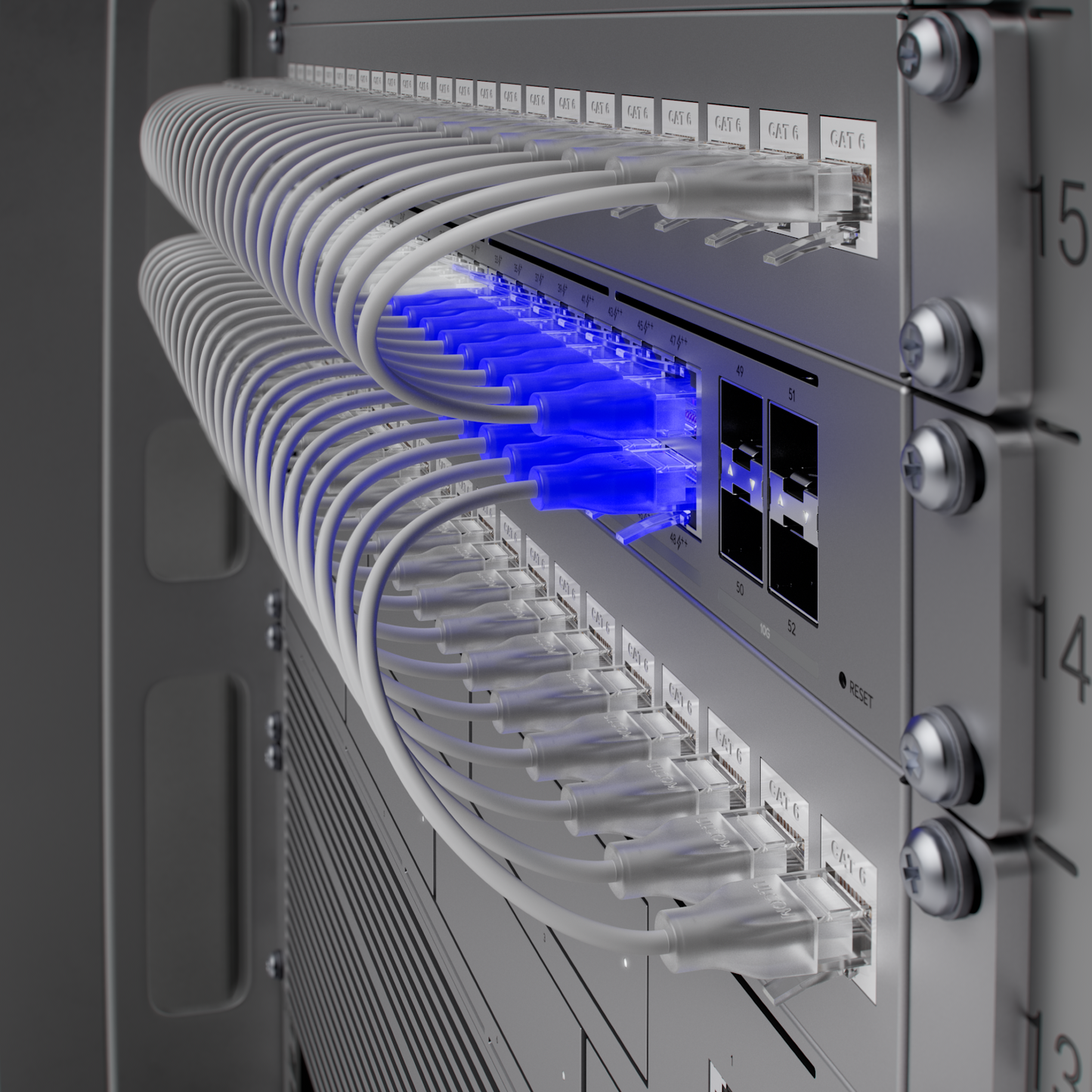

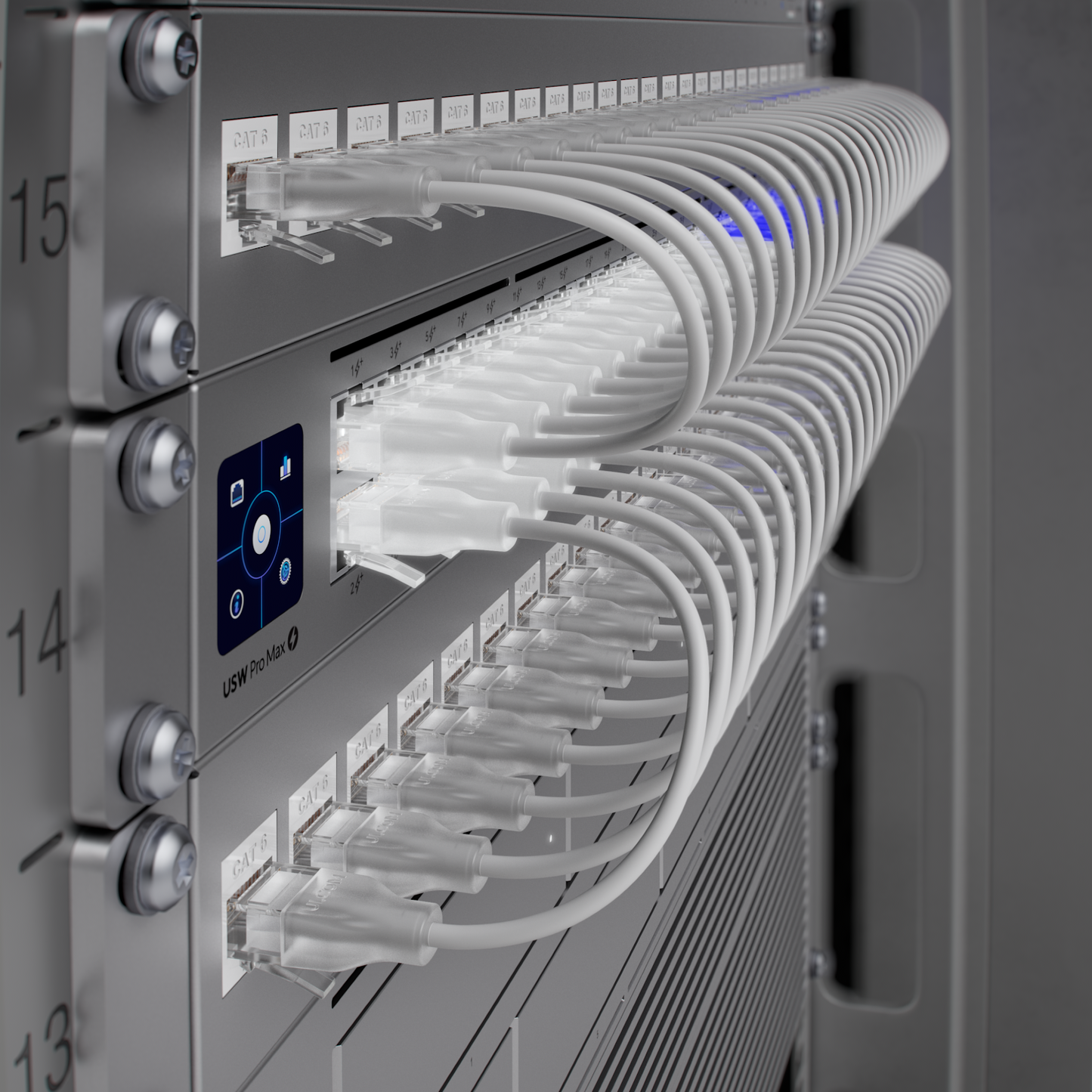

• Etherlighting™ Ports: Illuminate to indicate port location, speed/link, and native VLAN/network.
• High Port Density: 48 ports including 16 2.5 GbE RJ45 ports and 32 GbE RJ45 ports for extensive connectivity.
• 10G SFP+ Ports: Four 10G SFP+ ports for high-speed uplinks.
• DC Power Backup Ready: Ensures network reliability during power outages.
• Managed with UniFi Network: Requires UniFi Network version 8.0.24 and later for optimal performance.

Specifications

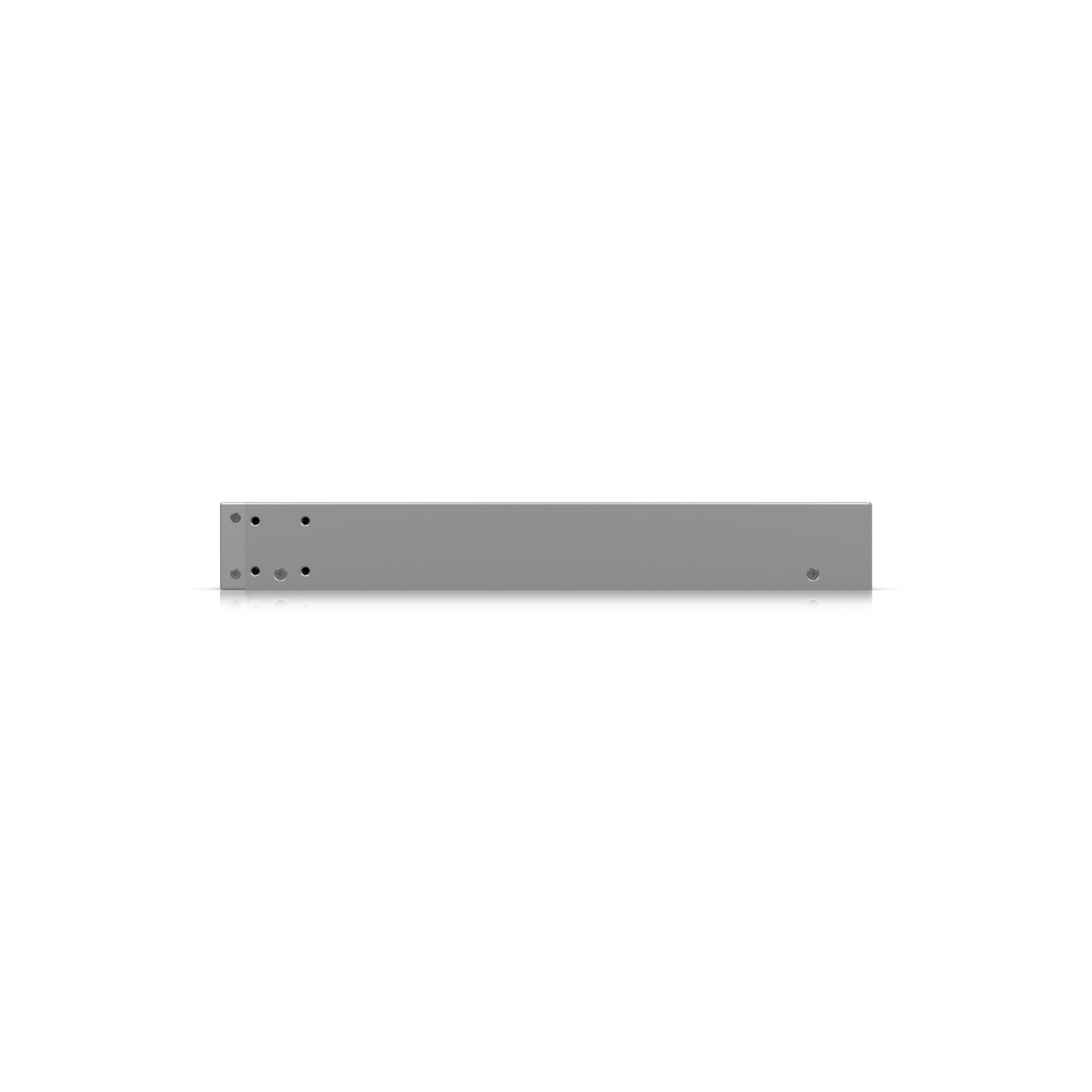

• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 inches)
• Weight: 4.8 kg (10.6 lb) without mounting brackets; 4.9 kg (10.8 lb) with mounting brackets
• Total Non-Blocking Throughput: 112 Gbps
• Switching Capacity: 224 Gbps
• Forwarding Rate: 166.656 Mpps

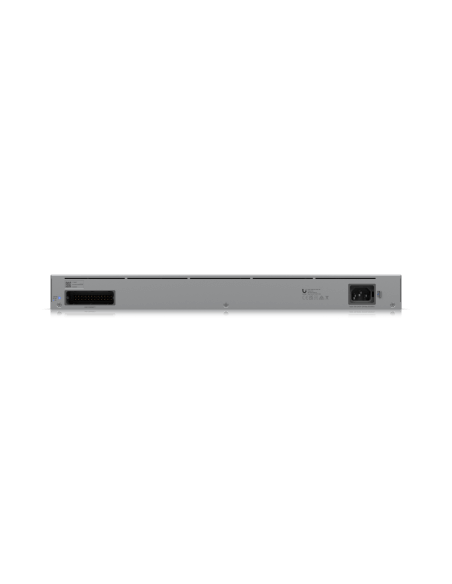

• Power Supply: AC/DC, internal, 100W
• Supported Voltage Range: 100—240V AC
• Max Power Consumption: 100W
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC
