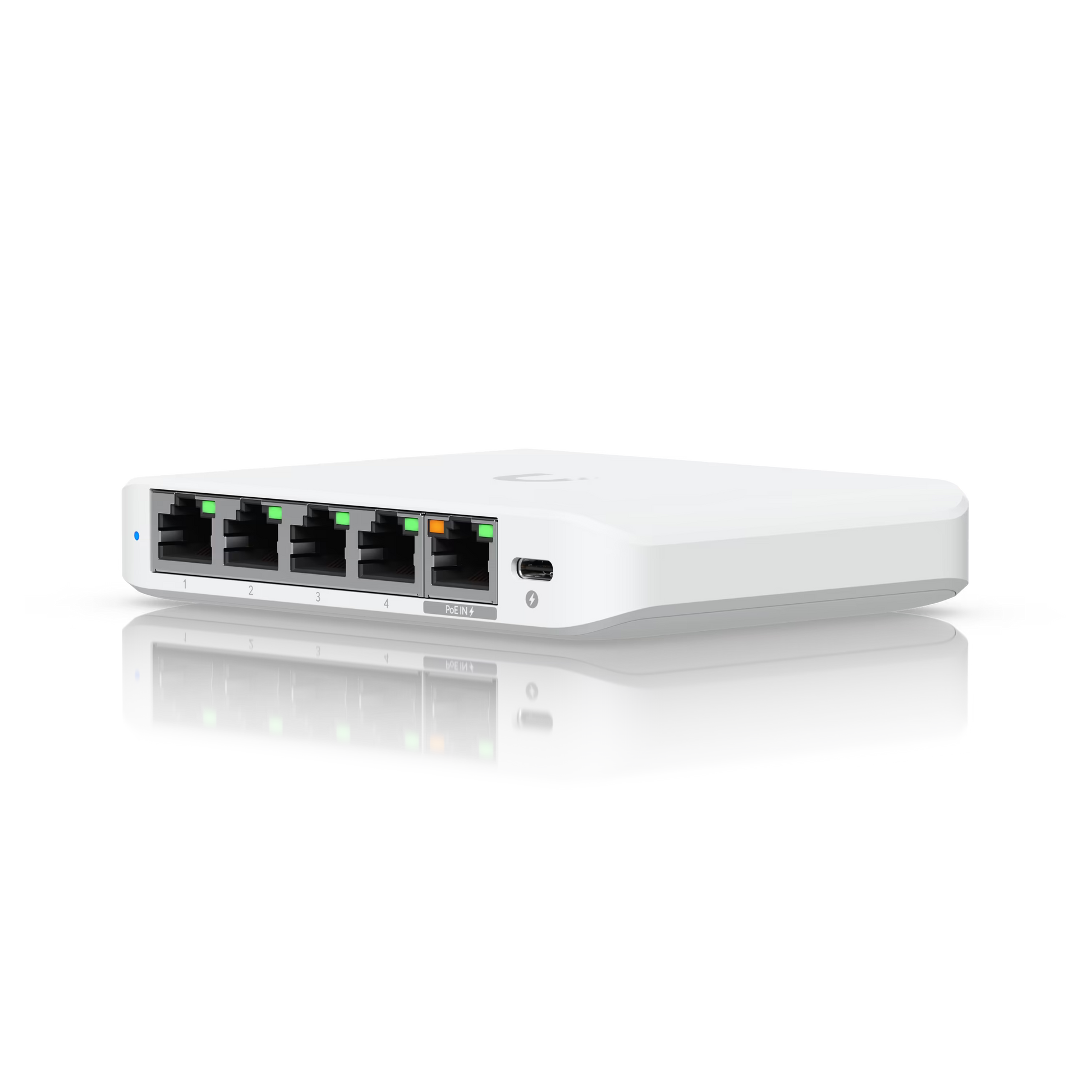

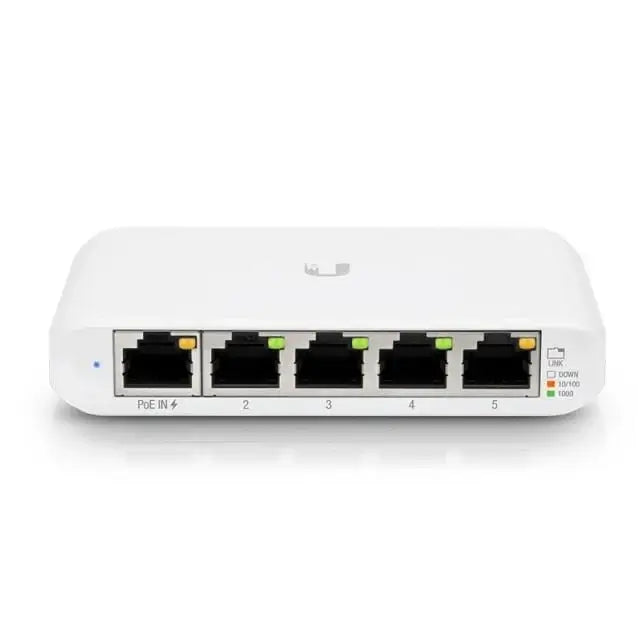

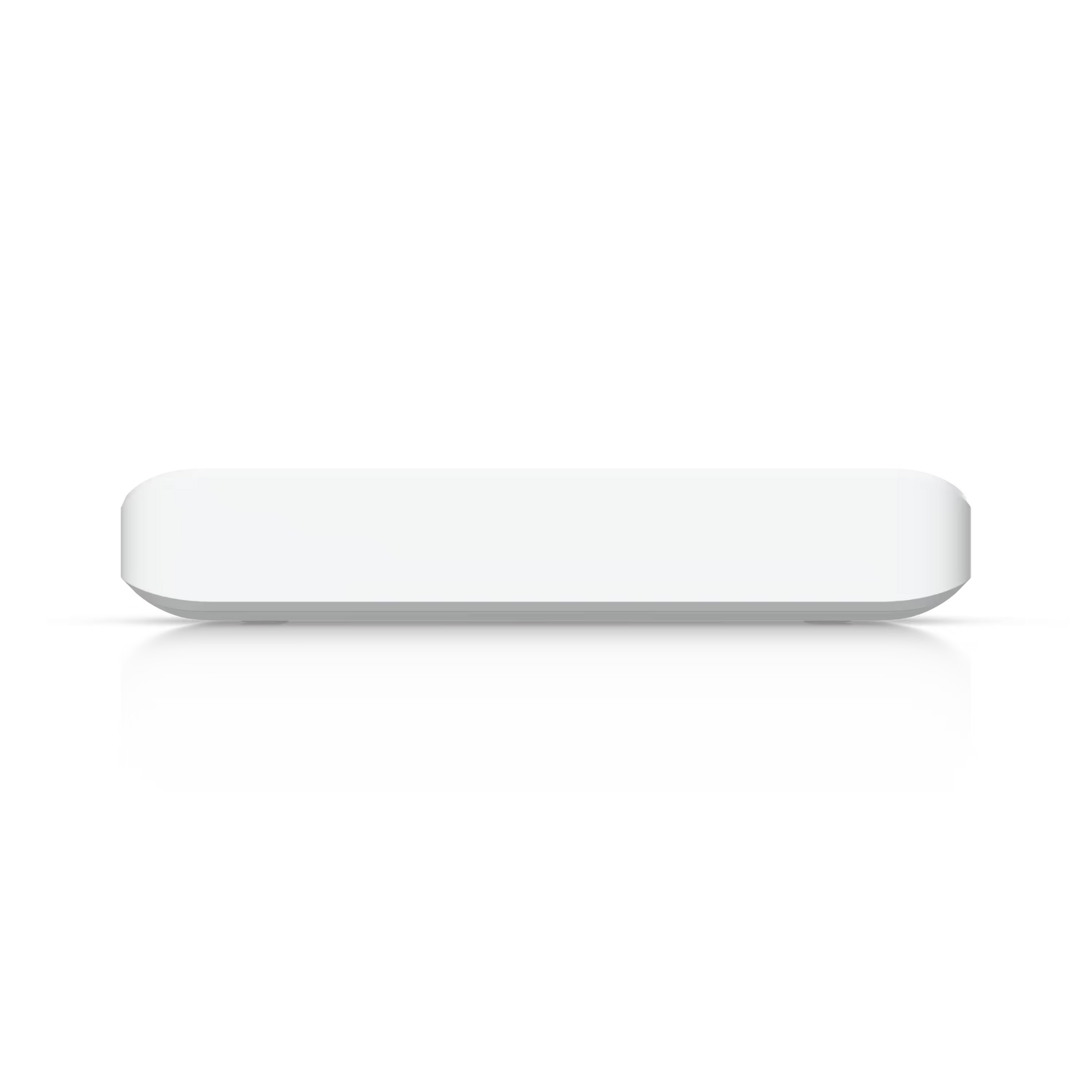

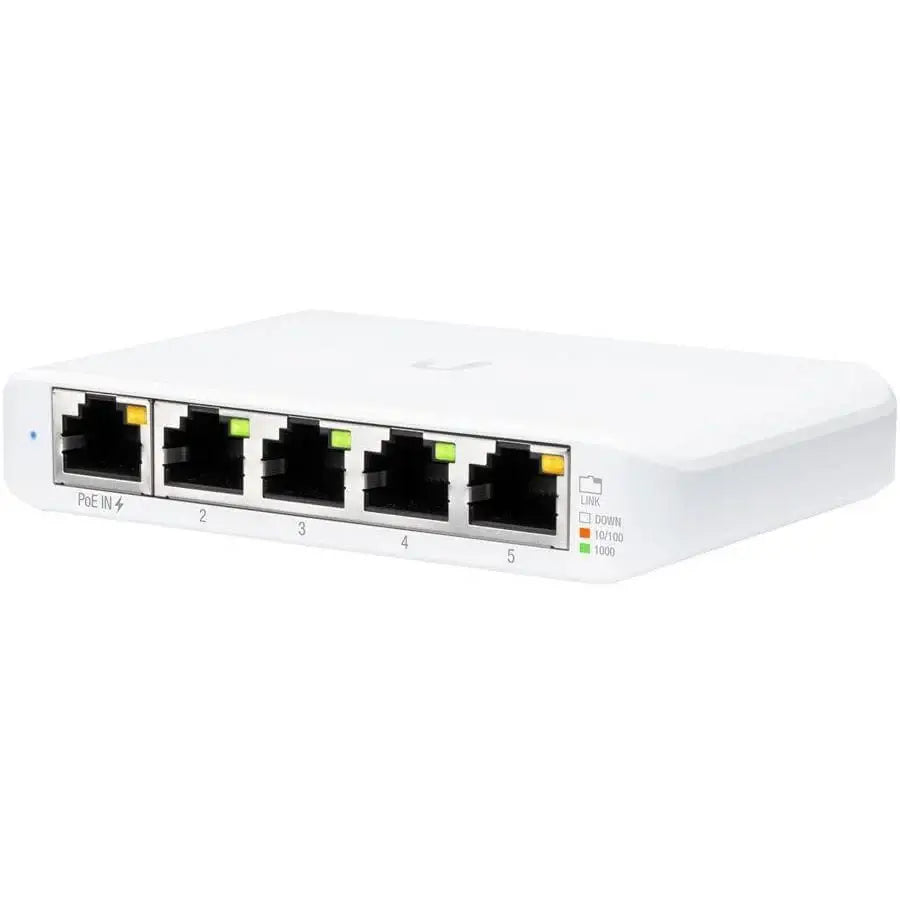

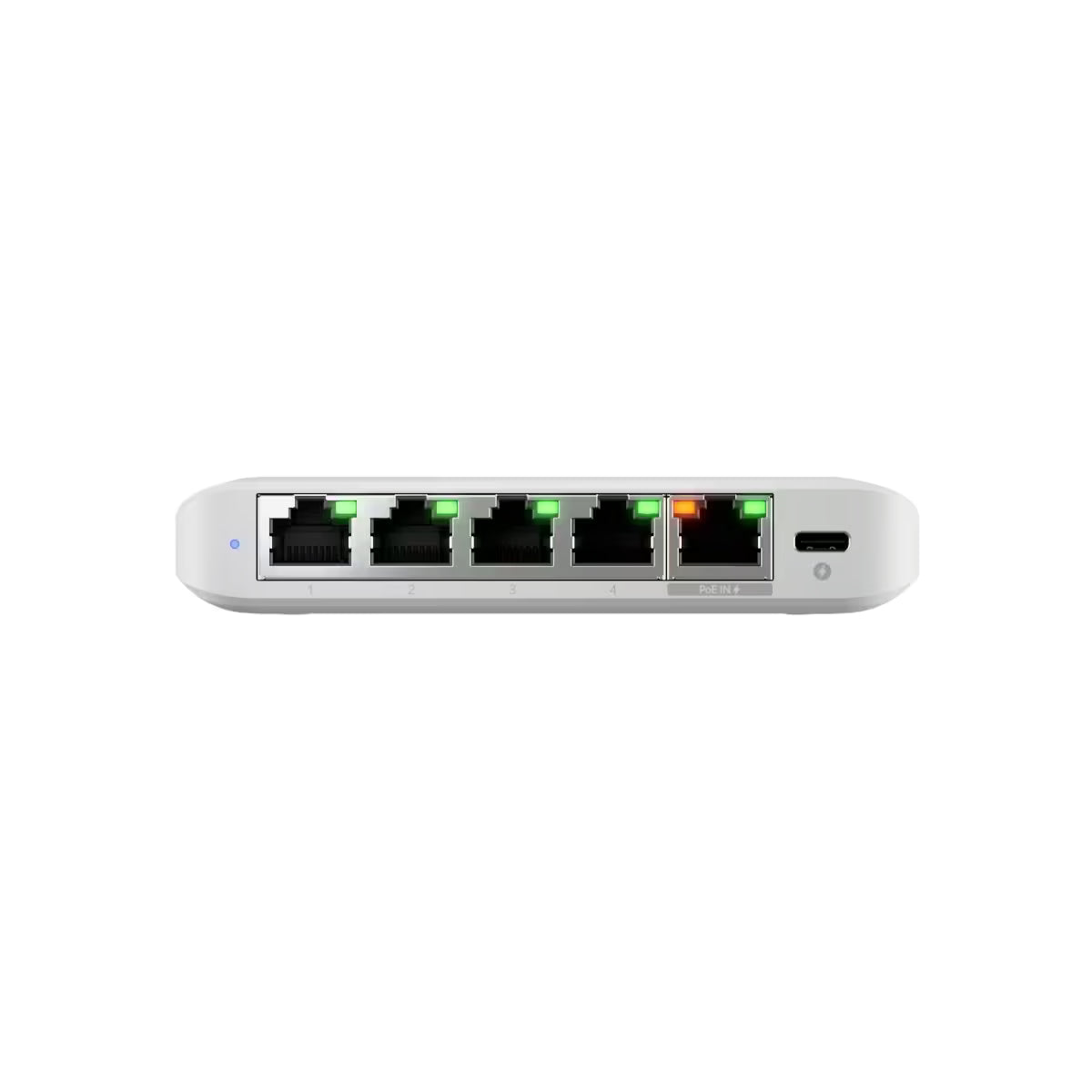

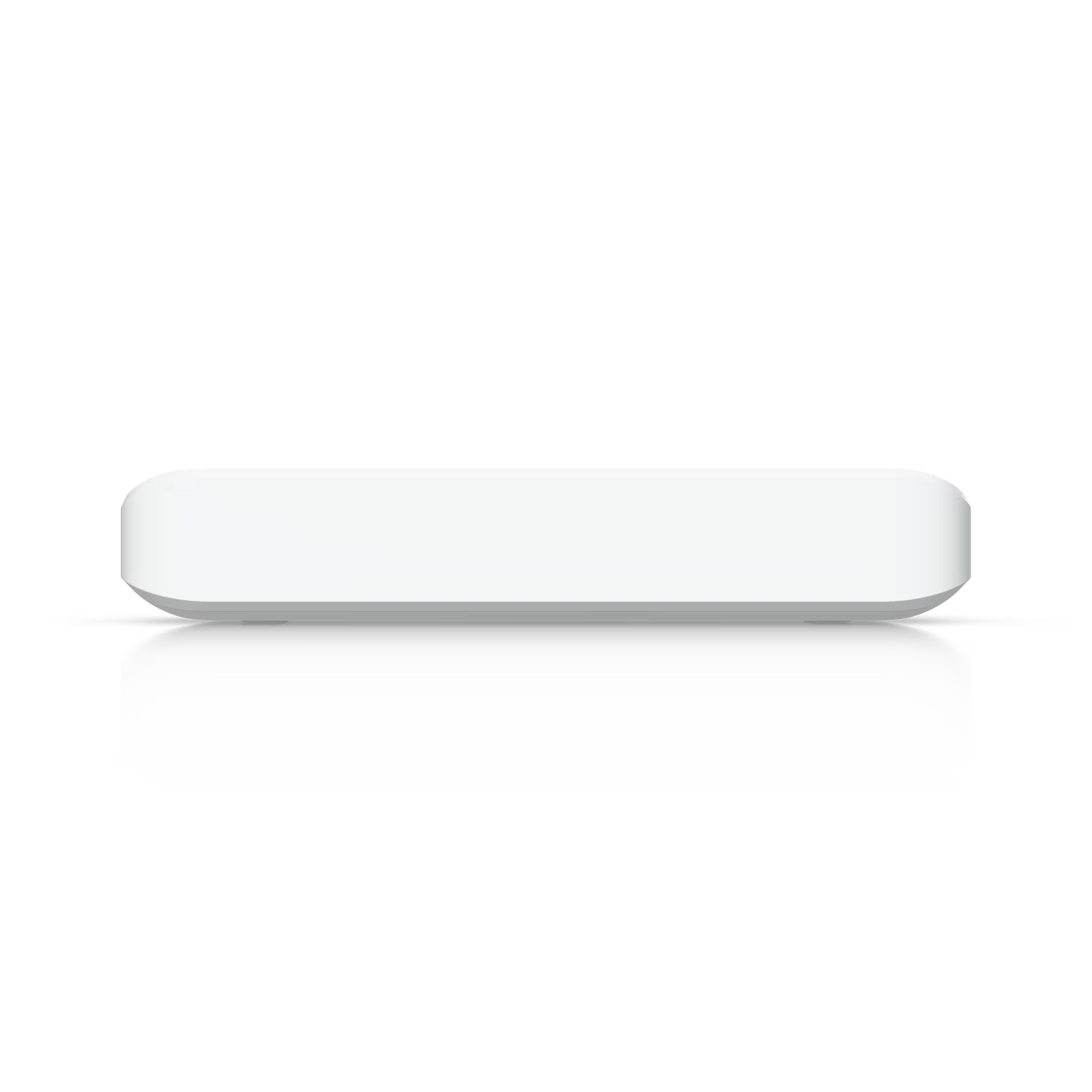

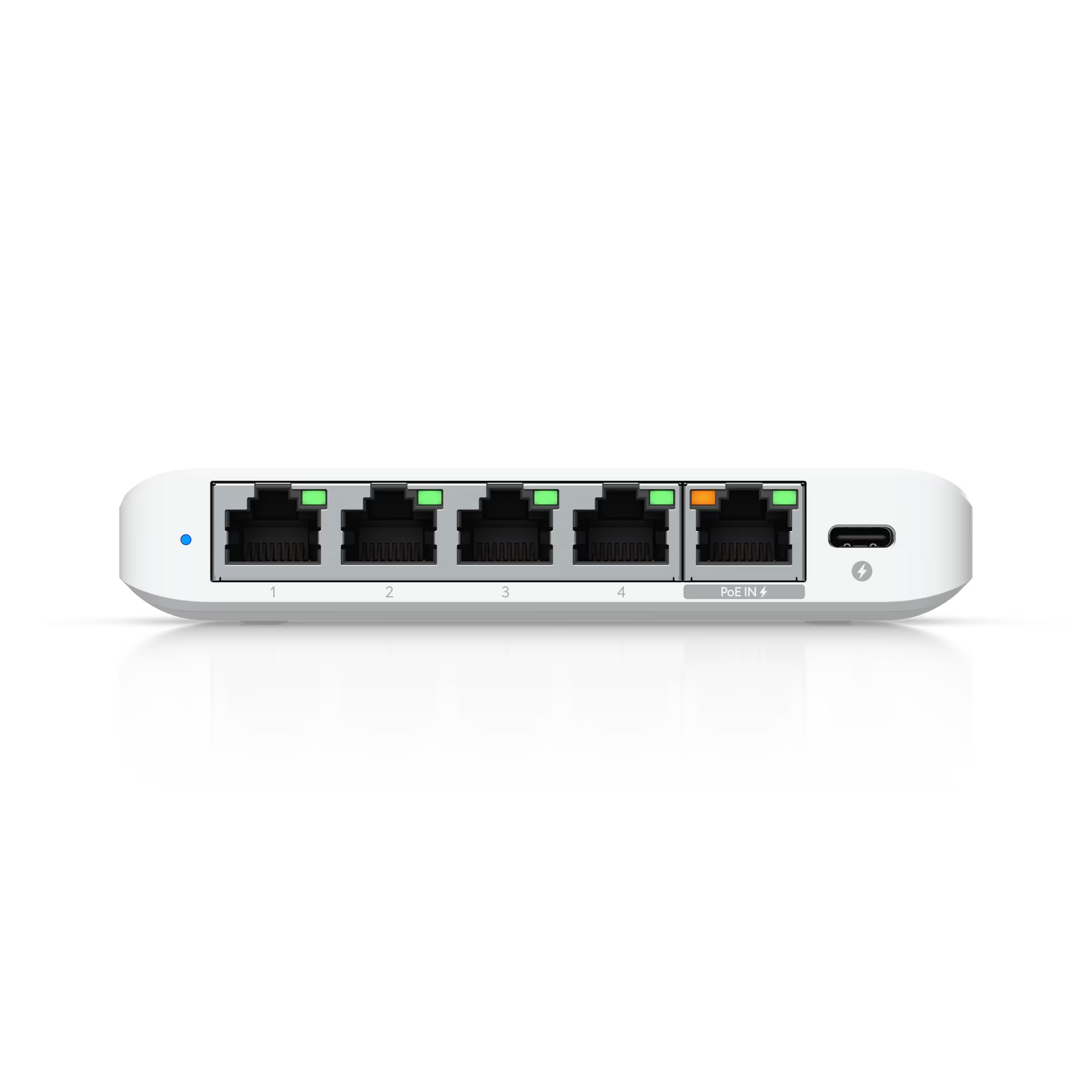

Ubiquiti UniFi Flex Mini 5 Port Gigabit 1PoE Input | USW-Flex-MINI

The Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) is a compact, managed Gigabit Ethernet switch designed to seamlessly integrate into the UniFi Enterprise System. With its small form factor, it is ideal for expanding network capacity in environments where space is limited, such as home offices, small businesses, or remote workstations. The switch offers five RJ45 Ethernet ports, each supporting 10/100/1000 Mbps connections, ensuring high-speed connectivity for connected devices. It can be powered via the included USB Type-C power adapter or through 802.3af/at PoE on port 1, providing flexible deployment options.

Features

• Five Gigabit Ethernet ports for high-speed connectivity.
• Port 1 supports 802.3af/at PoE input for flexible power options.
• Compact desktop design suitable for space-constrained environments.
• Managed through the UniFi Network Controller for centralized network management.
• Non-blocking switching throughput of 5 Gbps.
• Switching capacity of 10 Gbps.
• Forwarding rate of 7.44 Mpps.
• Energy-efficient with a maximum power consumption of 2.5W.
• Supports VLANs, port mirroring, and flow control.
• ESD/EMP protection: ±16kV Air, ±12kV Contact.
• Operating temperature range: -5 to 45°C.
• Operating humidity: 10 to 90% non-condensing.

Specifications

• Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports.
• PoE In Interface: 802.3af/at PoE (Pins 1, 2+; 3, 6-).
• Max. Power Consumption: 2.5W.
• Power Method: USB Type-C, 5V; 802.3af/at PoE (44–57VDC, 0.05–0.04A).
• Power Supply: 5V, 1A Power Adapter (included only with the single-pack of the USW-Flex-Mini).
• Voltage Range: USB Type-C: 4.7–5.2VDC; 802.3af/at PoE: 44–57VDC.
• LEDs: System: Status; RJ45 Data Ports: Link/Speed/Activity.
• Operating Temperature: -5 to 45°C.
• Operating Humidity: 10 to 90% Noncondensing.
• Certifications: CE, FCC, IC.
