Ubiquiti UniFi Dream Machine Pro Max 8 Port Gigabit 1x2.5G 2SFP+ | UDM-Pro-Max

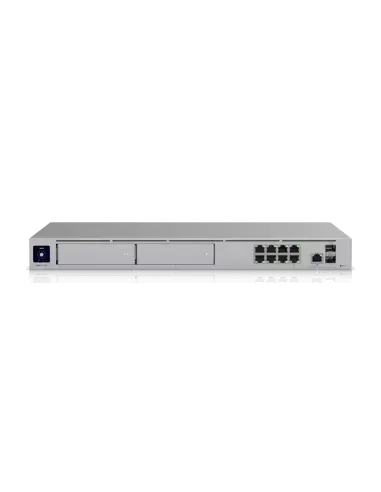

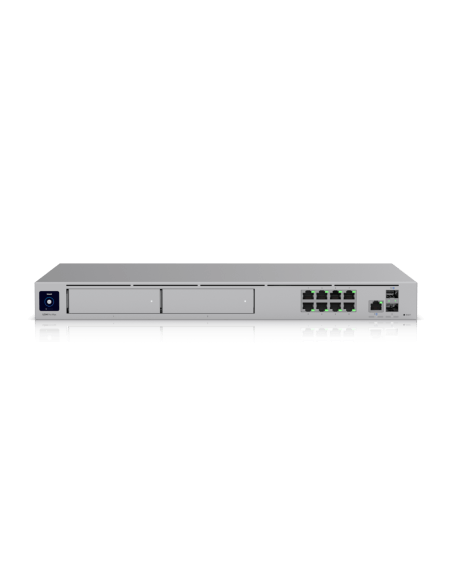

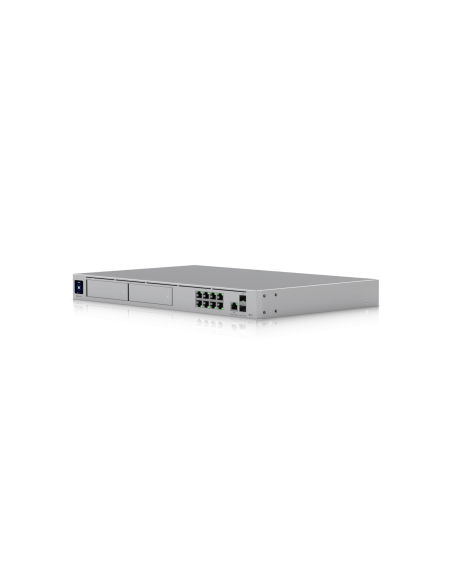

The Ubiquiti UniFi Dream Machine Pro Max (UDM-Pro-Max) is an advanced 10G cloud gateway designed to streamline and enhance network management for small to medium-sized businesses. Integrating a cloud gateway, 8-port Gigabit router, and network video recorder (NVR) into a single 1U rack-mounted device, it offers a comprehensive solution for managing network infrastructure. Powered by a 2 GHz ARM Cortex-A57 Quad-Core processor and 8 GB of DDR4 memory, the UDM-Pro-Max supports over 200 UniFi devices and more than 2,000 clients, effectively doubling the capacity compared to previous models like the Dream Machine Pro and Special Edition.

Features

• High-Performance Routing: Delivers up to 5 Gbps Intrusion Prevention System (IPS) throughput, ensuring robust network security without compromising speed.
• Versatile Connectivity: Equipped with 8 Gigabit Ethernet LAN ports, 1 x 2.5 GbE RJ45 WAN port, and 2 x 10G SFP+ ports (1 LAN, 1 WAN) to accommodate diverse networking requirements.
• Integrated NVR Storage: Features two 3.5" HDD bays for redundant NVR storage and a built-in 128 GB SSD for faster experience.
• Comprehensive UniFi Application Suite: Includes full support for UniFi Network, Protect, Access, Talk, and Connect applications, providing a unified management interface.
• Advanced Security Features: Offers stateful firewall, application-aware Layer 7 firewall, deep packet inspection (DPI), intrusion prevention and detection systems (IPS/IDS), and content filtering to safeguard network integrity.
• Redundancy and Failover: Supports Virtual Router Redundancy Protocol (VRRP) for gateway failover and includes DC power backup options to ensure continuous operation.
• User-Friendly Interface: Incorporates a 1.3" touchscreen for real-time monitoring and management, enhancing user experience.

Specifications

• Processor: Quad-core ARM Cortex-A57 at 2.0 GHz
• Memory: 8 GB DDR4
• On-board Storage: 32 GB eMMC and 128 GB SSD
• LAN Ports: 8 x 1 GbE RJ45
• WAN Ports: 1 x 2.5 GbE RJ45, 1 x 10G SFP+
• Additional Ports: 1 x 10G SFP+ LAN
• NVR Storage Bays: 2 x 3.5" HDD bays
• Power Consumption: Maximum 60W
• Power Supply: Internal AC/DC, 100W
• Operating Temperature: -10 to 40°C (14 to 104°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC, Anatel, SRRC
