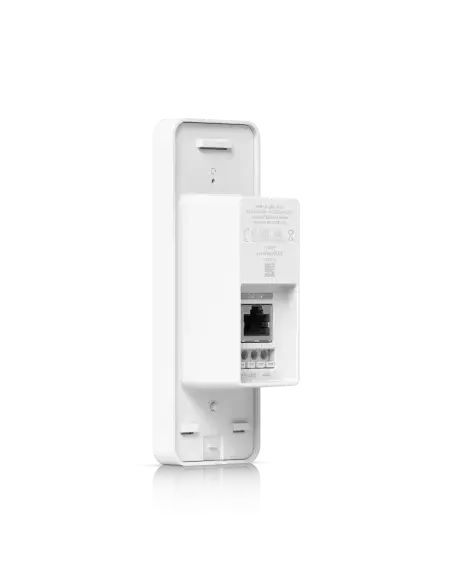

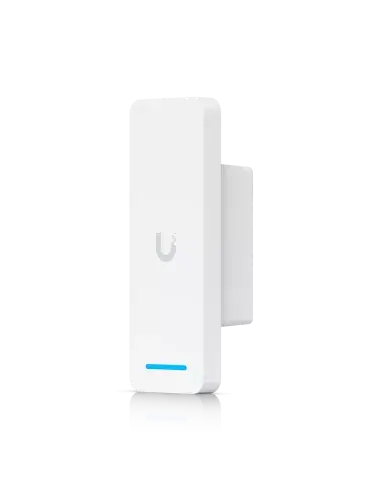

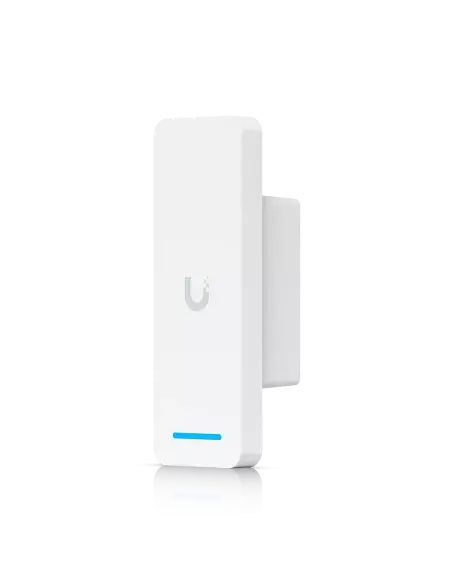

Ubiquiti UniFi Access Ultra Reader and Hub | UA-Ultra

The Ubiquiti UniFi Access Ultra Reader (UA-Ultra) is an advanced access control device that integrates a reader and hub into a single unit, providing comprehensive single-door entry management. Designed for both indoor and outdoor environments, it offers secure and efficient access control solutions suitable for office buildings, residential complexes, and restricted areas. The UA-Ultra supports multiple authentication methods, including NFC cards and mobile unlock via the UniFi Identity app, ensuring flexibility and convenience for users. Its tamper-resistant design and IP55 weatherproof rating make it reliable in various conditions.

Features

• Integrated reader and hub for streamlined single-door access control
• Supports NFC card and keyfob access
• Mobile unlock capability via the UniFi Identity app
• Tamper-resistant design with built-in tamper switch
• IP55-rated weatherproof enclosure suitable for indoor and outdoor use
• Built-in speaker for audio notifications
• Supports up to 3,000 users
• Compatible with various NFC technologies, including MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire, and NFC Tag types 1 through 5
• Power over Ethernet Plus (PoE+) support for simplified installation
• Request-to-Exit (RTE) input for seamless egress functionality

Specifications

• Networking Interface: (1) 10/100 MbE RJ45 port
• Connectivity: Bluetooth Low Energy (BLE) 4.2, Ethernet
• Power Method: PoE+ (44–57V DC)
• Maximum Power Consumption: 18W
• Supported Voltage Range: 44–57V DC
• Operating Temperature: -30 to 40°C (-22 to 104°F)
• Operating Humidity: 5 to 90% non-condensing
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 50 mm (1.95")
• Enclosure Material: Polycarbonate, aluminum alloy
• Mounting Options: Wall mount, gang box mount (included); junction box (optional)
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
