Ubiquiti UniFi Access Reader | UA-G3-W

The Ubiquiti UniFi Access Reader (UA-G3-W) is a compact, third-generation access control device designed to enhance security and streamline entry management. Utilizing MIFARE 13.56 MHz technology, it offers a read range of up to 30 mm (1.18 inches) for NFC cards and keyfobs. The reader supports multiple authentication methods, including NFC cards, the UniFi Identity mobile app, and Apple Touch Pass, providing flexibility for various access scenarios. Its IP55-rated enclosure ensures durability in both indoor and outdoor environments, making it suitable for diverse applications such as corporate offices, educational institutions, and residential complexes.

Features

• Supports NFC card and keyfob access
• Compatible with Apple Touch Pass and Google Wallet
• Enables mobile unlock via the UniFi Identity app
• Handwave request-to-exit functionality
• Built-in speaker for audio feedback
• LED indicators for status visualization

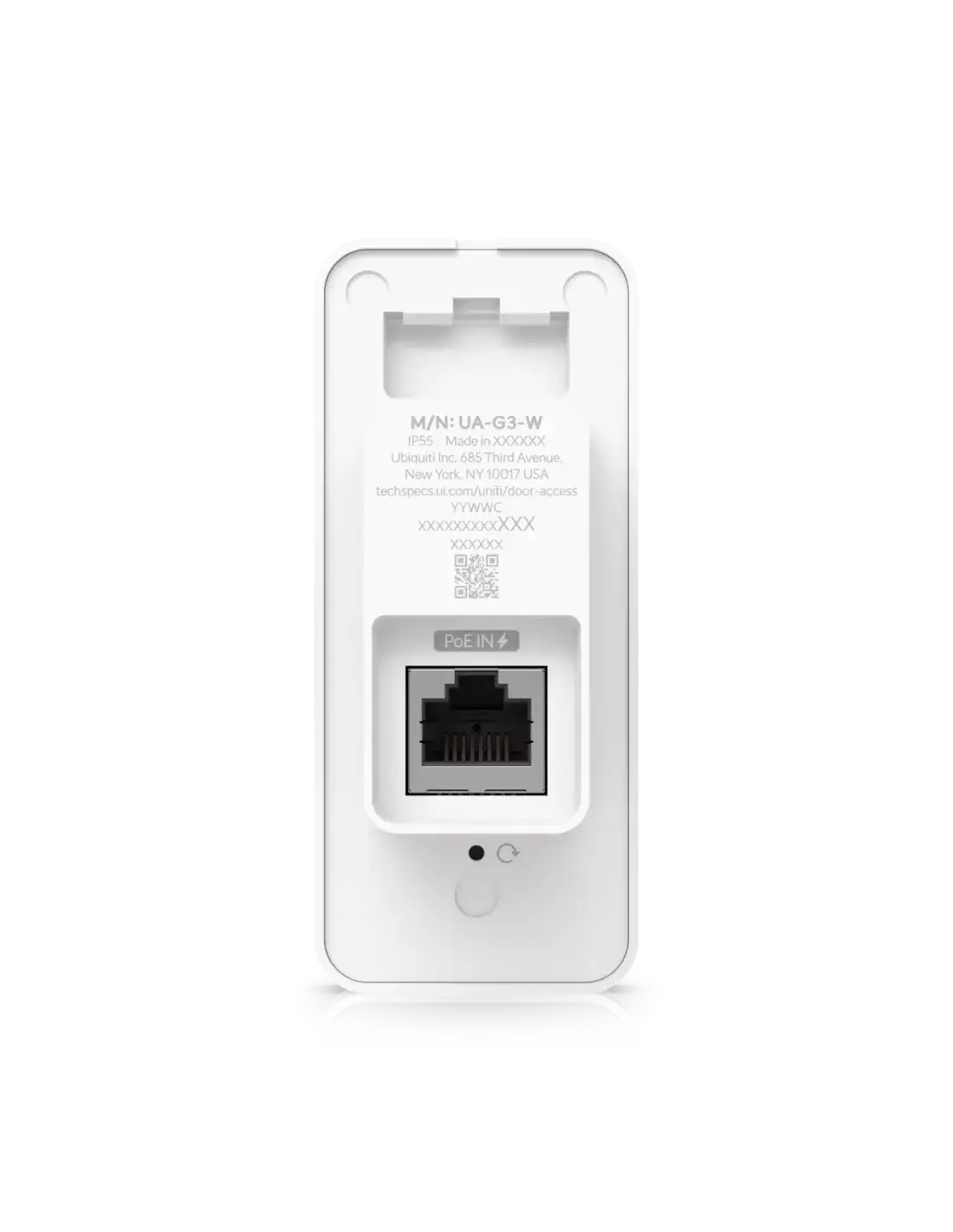

• PoE connectivity for simplified installation
• IP55-rated for dust and water resistance
• Operates in temperatures ranging from -30 to 45°C (-22 to 113°F)
• Compatible with UniFi Access Hub for centralized management

Specifications

• Networking Interface: (1) 10/100 Mbps RJ45 port
• Connectivity: Bluetooth 4.1, NFC
• Power Method: PoE (Power over Ethernet)
• Maximum Power Consumption: 5W
• Supported NFC Technologies: ISO/IEC 14443A/14443B/15693/18092 (Ecma 340), MIFARE Classic, MIFARE DESFire, Sony FeliCa (ID only), NFC Forum tags T1T, T2T, T3T, T4T, T5T, ECP 2.0
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18 inches)
• Environmental Resistance: IP55-rated for dust and water resistance
• Operating Temperature: -30 to 45°C (-22 to 113°F)
• Operating Humidity: 5% to 90% non-condensing
• Certifications: CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
