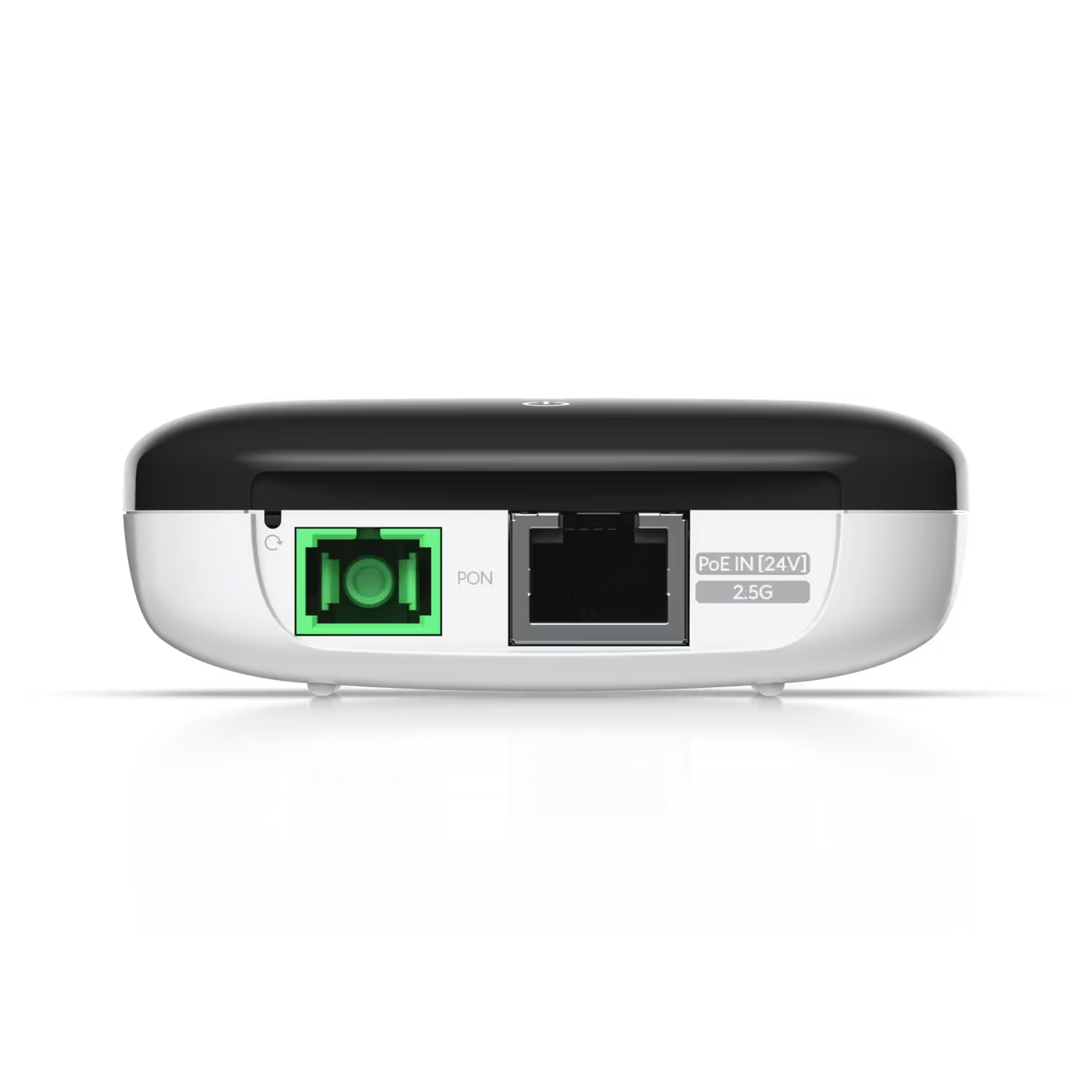

Ubiquiti UISP WaveFiber SC/APC 2.5Gbps Ethernet ONU | Wave-Fiber-ONU

The Ubiquiti UISP WaveFiber ONU is a GPON optical network unit designed to deliver high-speed fiber connectivity for both residential and commercial applications. With support for 2.5 Gbps downlink and 1.2 Gbps uplink speeds over distances up to 20 km, it ensures reliable and efficient data transmission. Its compact design allows for flexible installation options, including desktop and wall mounting, making it suitable for various deployment scenarios. The device is powered via 24V passive PoE, simplifying power delivery and reducing cable clutter.

Features

• Supports 2.5 Gbps downlink and 1.2 Gbps uplink speeds
• Operates over distances up to 20 km
• Equipped with one SC/APC GPON WAN port
• Includes one 1/2.5 GbE RJ45 LAN port
• Powered via 24V passive PoE
• Compact and lightweight design
• Supports desktop and wall mounting
• Features a factory reset button
• Operates within a temperature range of -15 to 45°C
• Certified by FCC, IC, and CE

Specifications

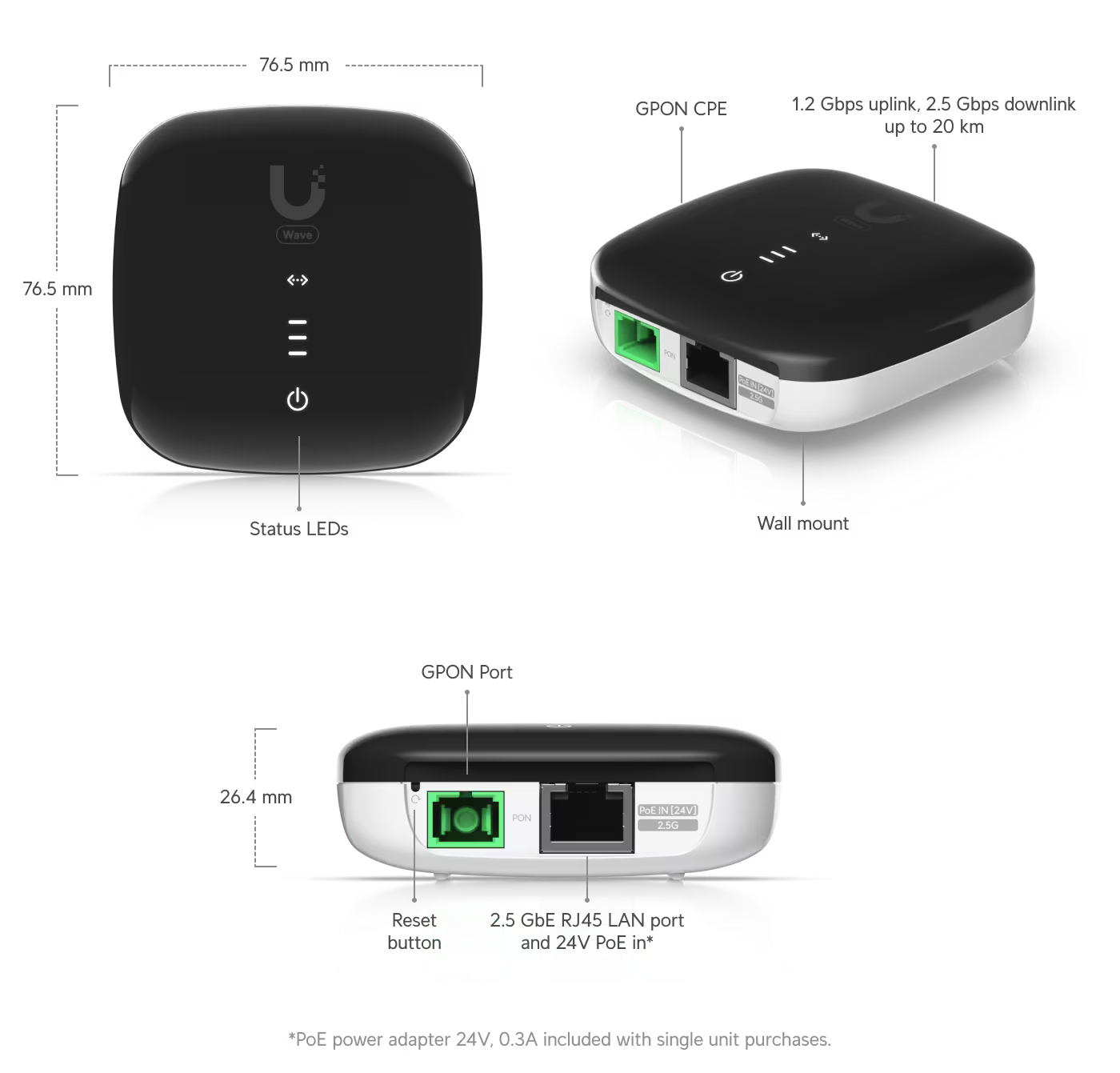

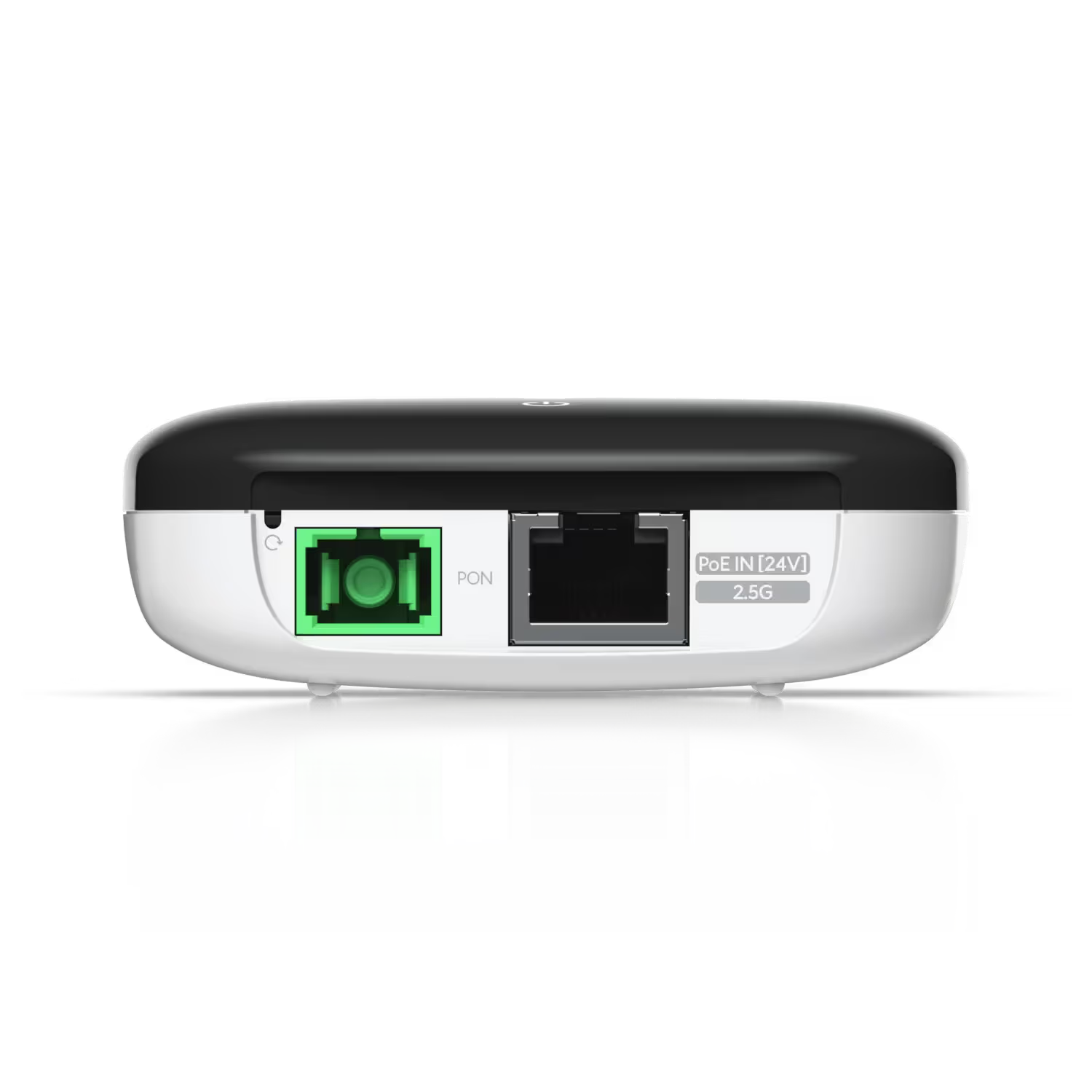

• Networking Interface: (1) SC/APC, ITU-G.984 GPON WAN port, (1) 1/2.5 GbE RJ45 LAN port
• Management Interface: Ethernet in-band
• Power Method: PoE, 0.3A
• Power Supply: 24V passive PoE 2-pair (4, 5+; 7, 8-)
• Supported Voltage Range: 20–28V DC
• Max. Power Consumption: 5W
• Total Non-Blocking Line Rate: Downstream: 2.488 Gbps, Upstream: 1.244 Gbps
• Normal Range of Optical Module: TX: 1.5 to 5 dBm, RX: -8 to -28 dBm
• Mounting: Desktop, wall
• Button: (1) Factory reset
• Ambient Operating Temperature: -15 to 45°C (5 to 113°F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Certifications: FCC, IC, CE
