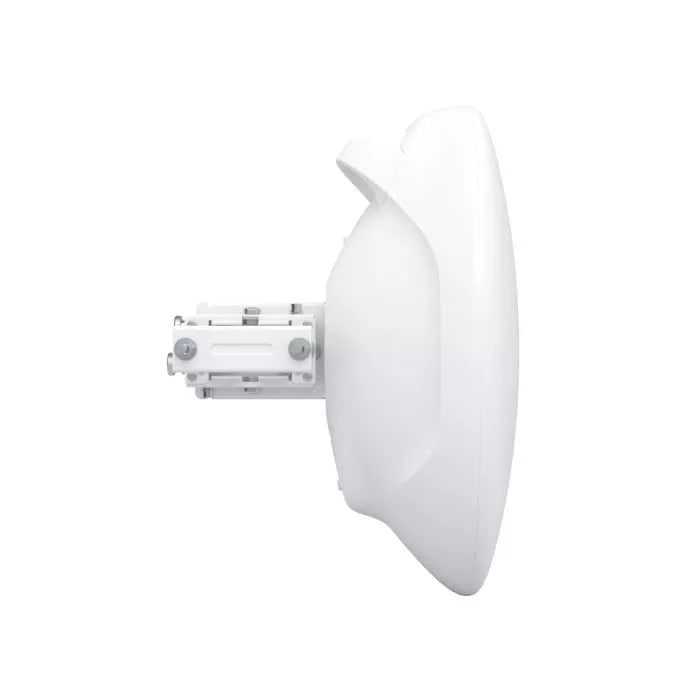

The Ubiquiti UISP Wave Professional Radio is a high-capacity 60GHz radio system designed for long-distance point-to-point (PtP) and point-to-multipoint (PtMP) links. With integrated GPS, a high-gain antenna, and multiple Ethernet ports, it delivers exceptional performance and reliability for demanding networking environments.
Features
High-Capacity Radio: Supports up to 5.4 Gbps throughput on the 60GHz band and 800 Mbps on the 5GHz backup radio.
Long-Distance Connectivity: Achieves PtP links up to 15 km and PtMP links up to 8 km.
Integrated GPS: Enhances alignment and synchronization for optimal performance.
Multiple Ethernet Ports: Equipped with two 2.5Gbps Ethernet ports and one 10Gbps SFP+ port for flexible networking options.
Robust Design: Weatherproof and durable, designed to withstand extreme conditions with an operating temperature range of -40°C to 60°C.
Specifications
Antenna Gain: 60GHz: 46dBi; 5GHz: 22dBi
Beamwidth: 60GHz: 1.3°; 5GHz: 8°
Max Power Consumption: 26W
PoE Input: 44–54V or 22–27V Passive PoE
Dimensions: Ø424.4 x 166.2 mm
Weight: 4 kg
Operating Frequency: 57 to 71 GHz
Channel Bandwidth: 2160, 1080, 540 MHz
Encryption: WPA2-PSK (AES)
Weatherproof Rating: IPX6
