Ubiquiti UISP Router 8 Port Gigabit PoE 110W 1SFP | UISP-R

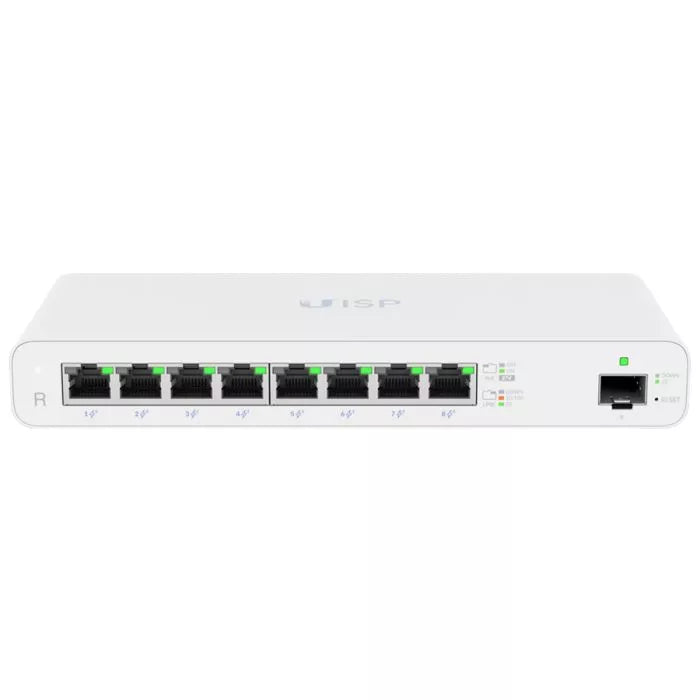

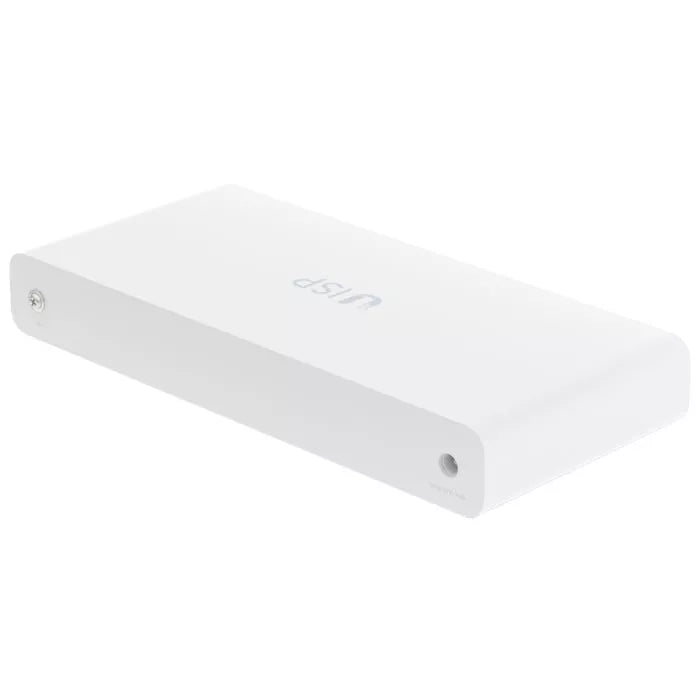

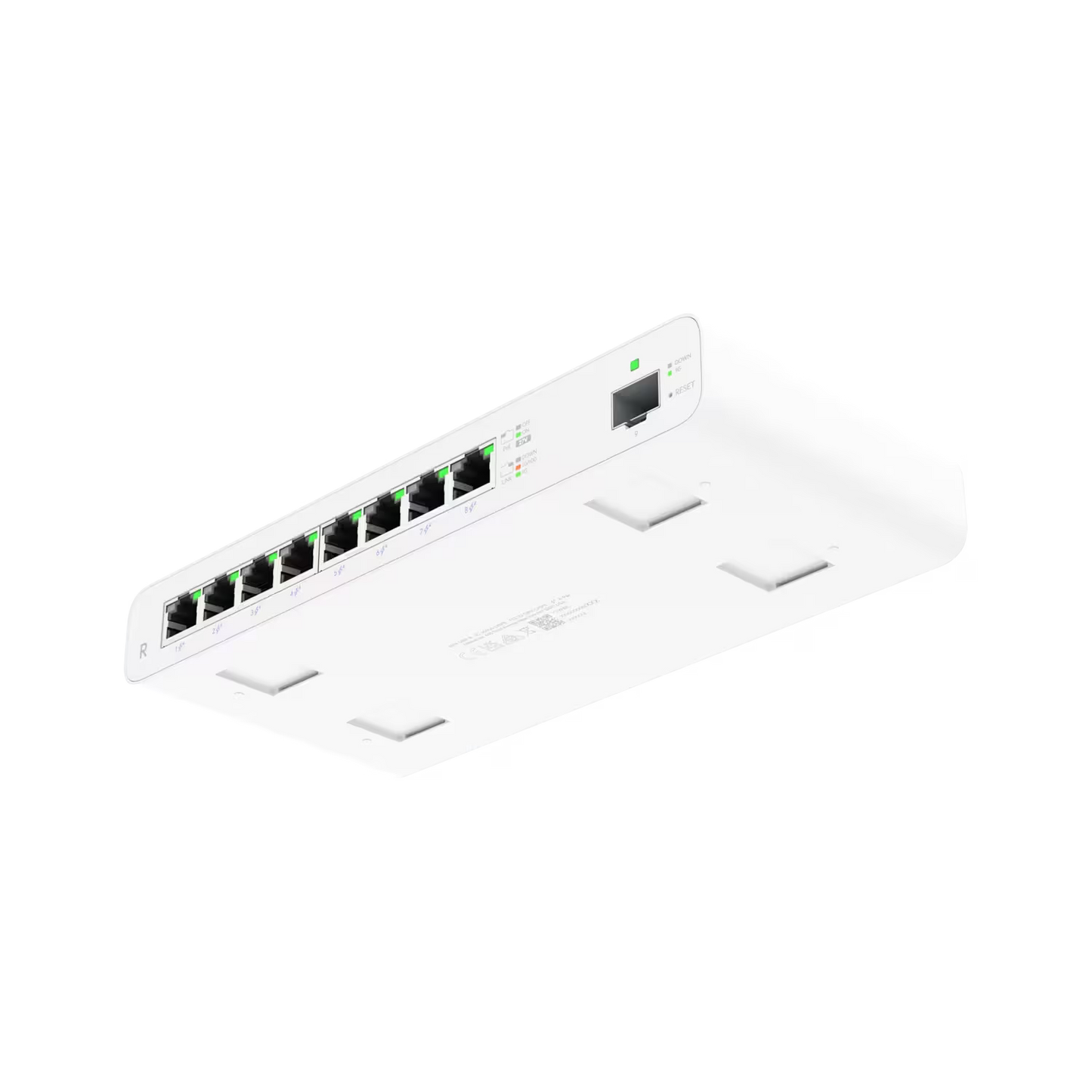

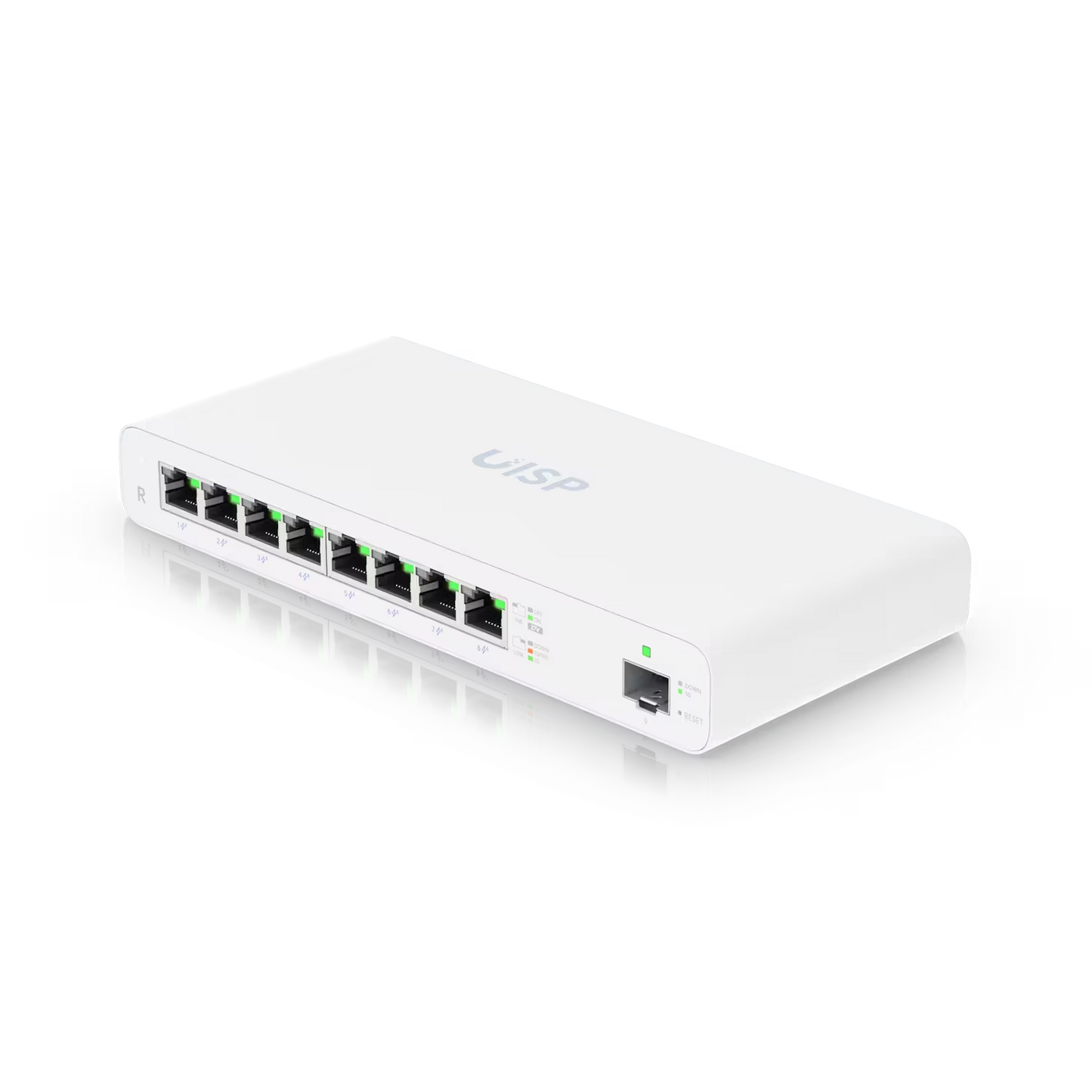

The Ubiquiti UISP Router (model UISP-R) is an eight-port Gigabit PoE router designed for MicroPoP applications, making it ideal for wireless ISP (WISP) deployments. It offers a cost-effective solution for delivering Gigabit wireless speeds to customers, providing up to 110W of power to connected radios and other devices across its eight 30W RJ45 ports. The router supports 27V passive PoE in 2- or 4-pair mode and includes a Gigabit SFP fiber uplink port for additional connectivity options. Managed via the Ubiquiti Internet Service Provider (UISP) application, it allows centralized monitoring and management of all UISP-compatible devices.

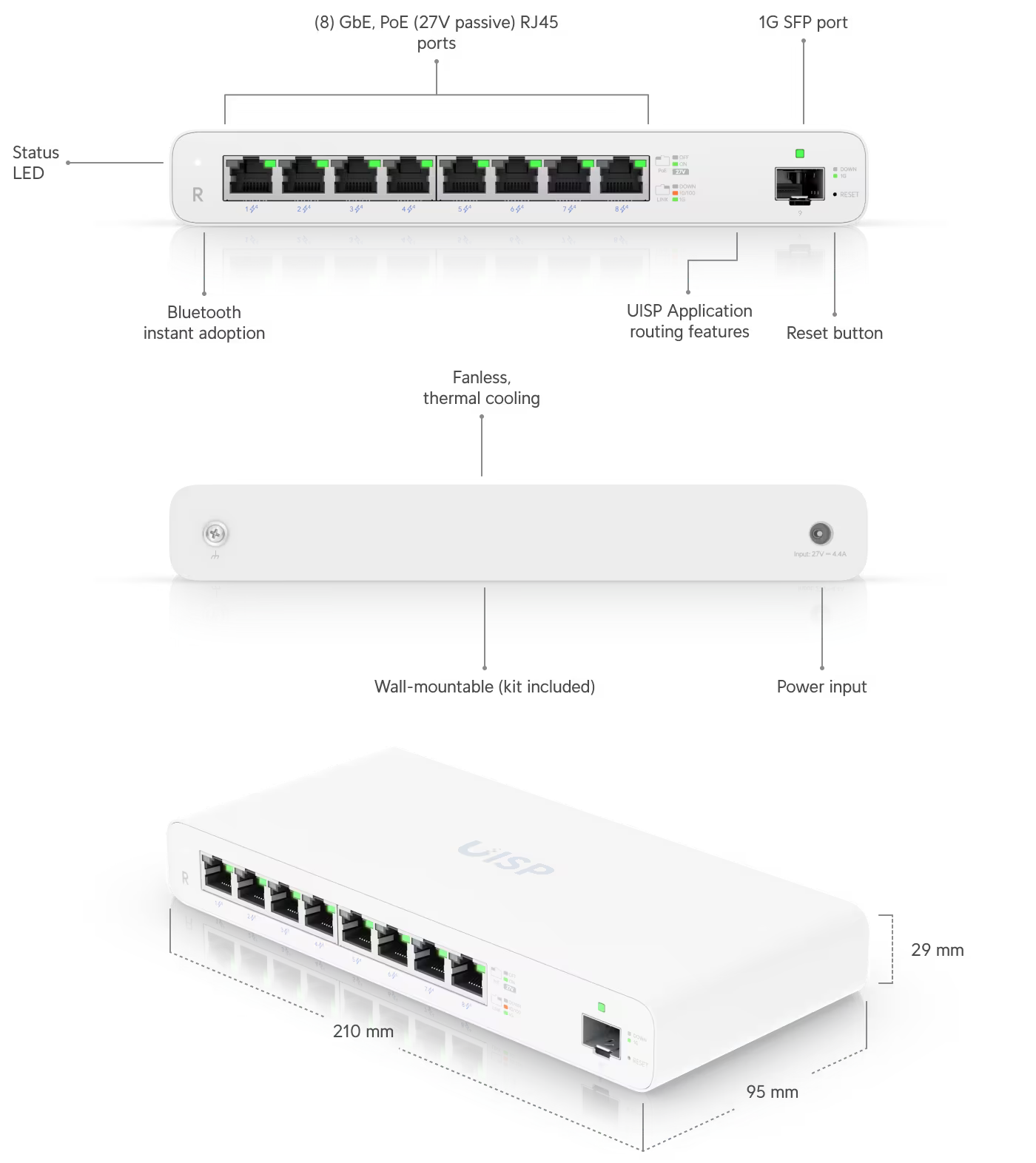

Features

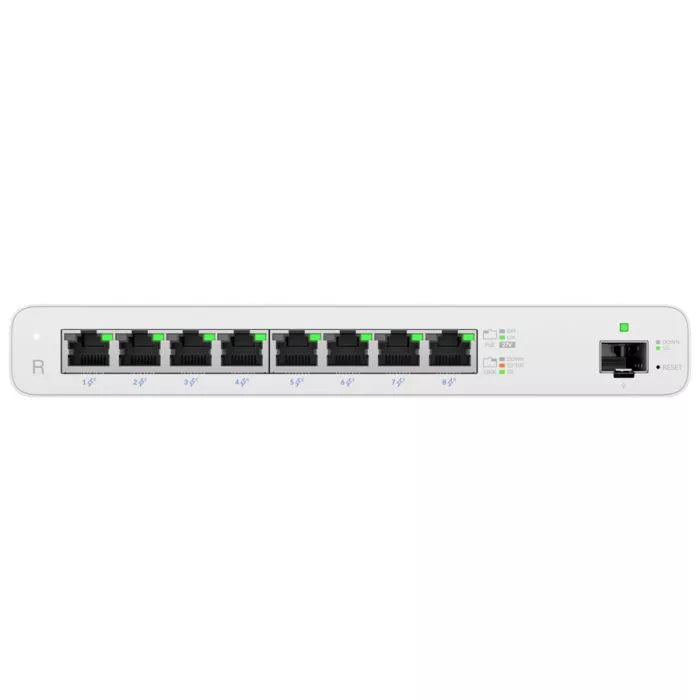

• Eight Gigabit Ethernet PoE ports
• One Gigabit SFP uplink port
• 110W total PoE power budget
• Supports 27V passive PoE in 2- or 4-pair mode
• Dual-core 880 MHz MIPS1004Kc processor
• 512 MB DDR3 memory
• 512 MB NAND flash storage
• Managed via UISP application
• Passive cooling for silent operation

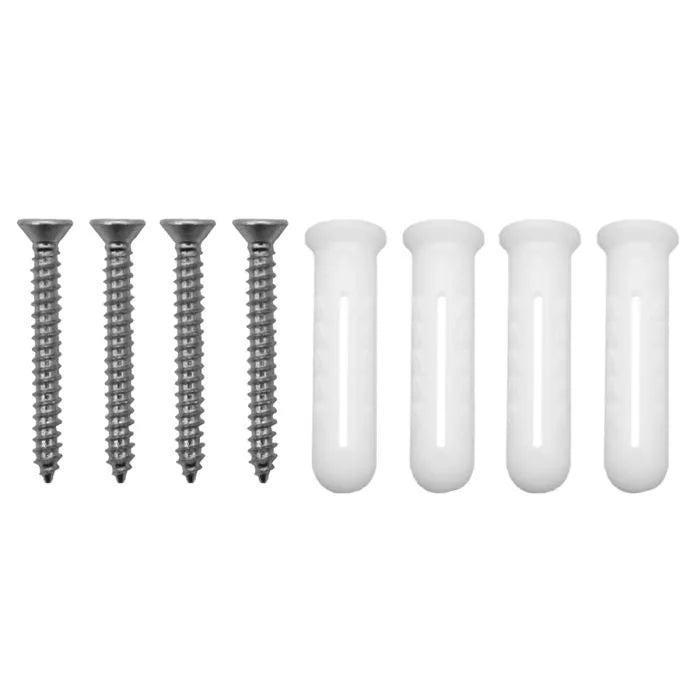

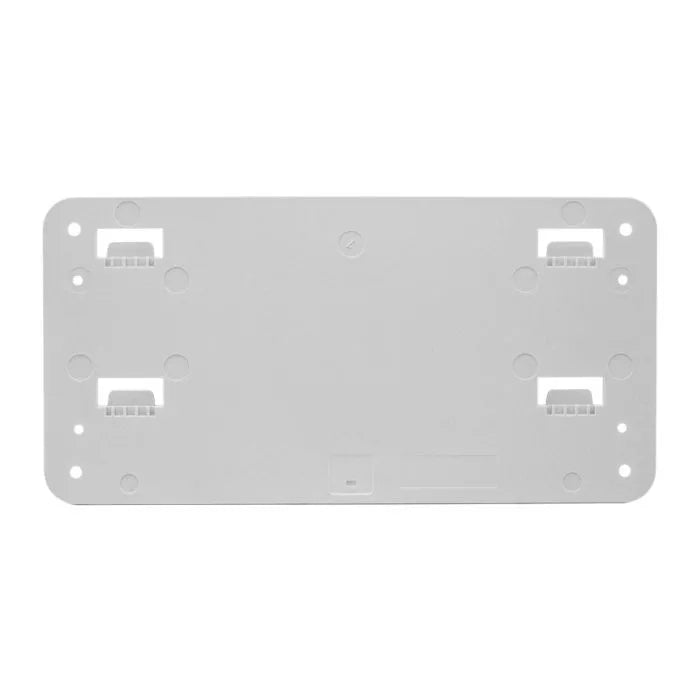

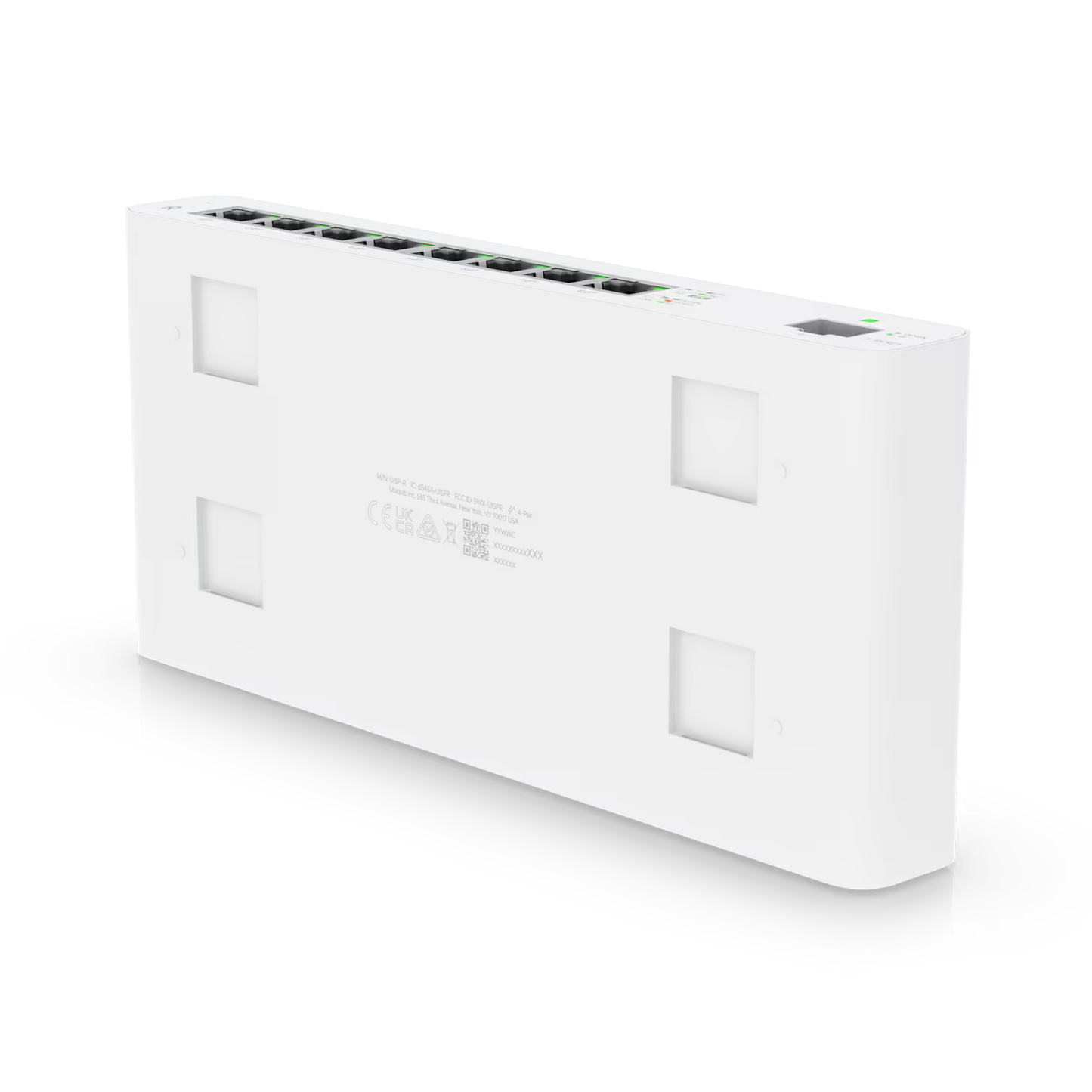

• Desktop and wall-mountable design

Specifications

• Processor: Dual-core 880 MHz MIPS1004Kc
• Memory: 512 MB DDR3
• Flash Storage: 512 MB NAND

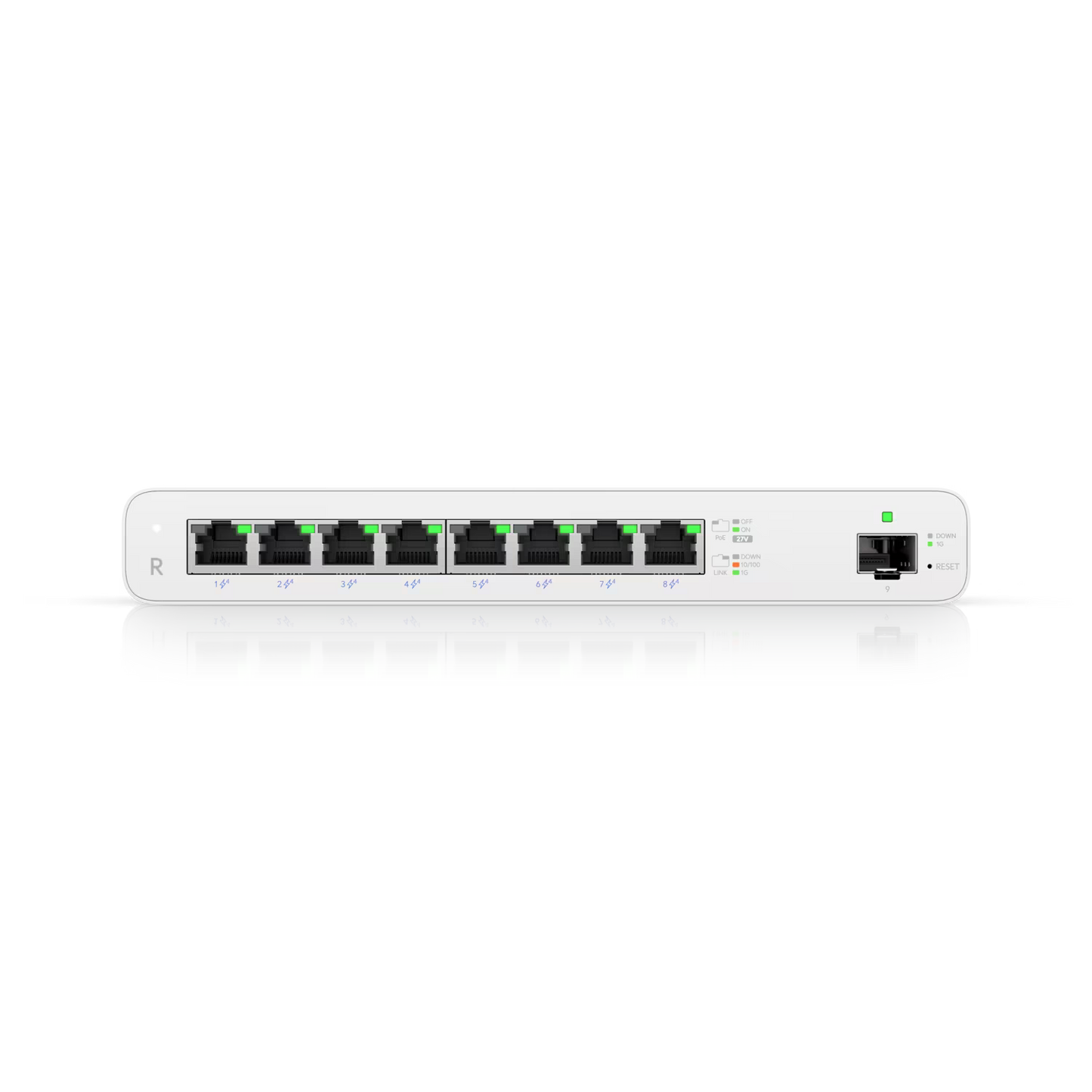

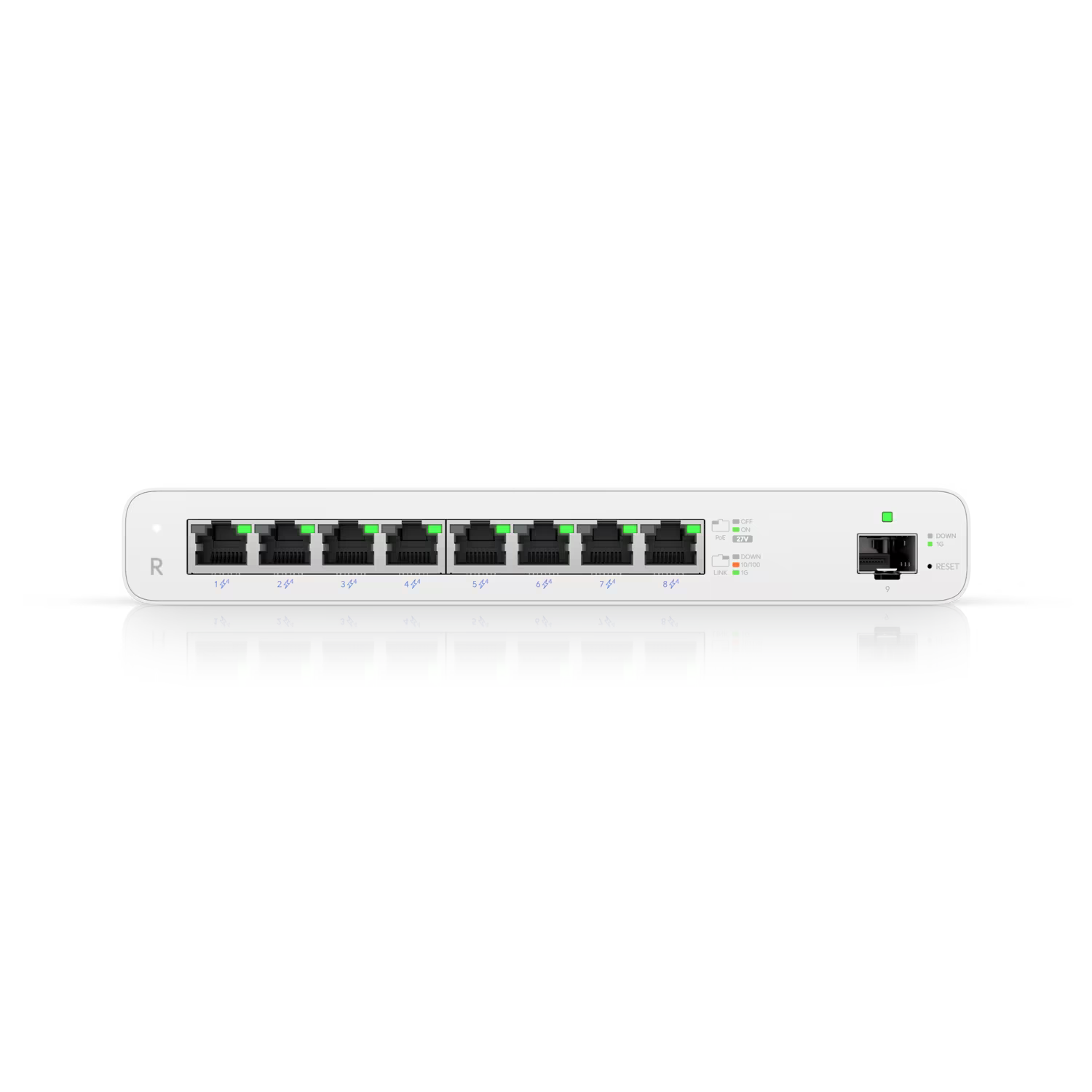

• Networking Interfaces: (8) Gigabit Ethernet RJ45 ports, (1) 1G SFP port
• Management Interfaces: Ethernet In-Band, Bluetooth BLE

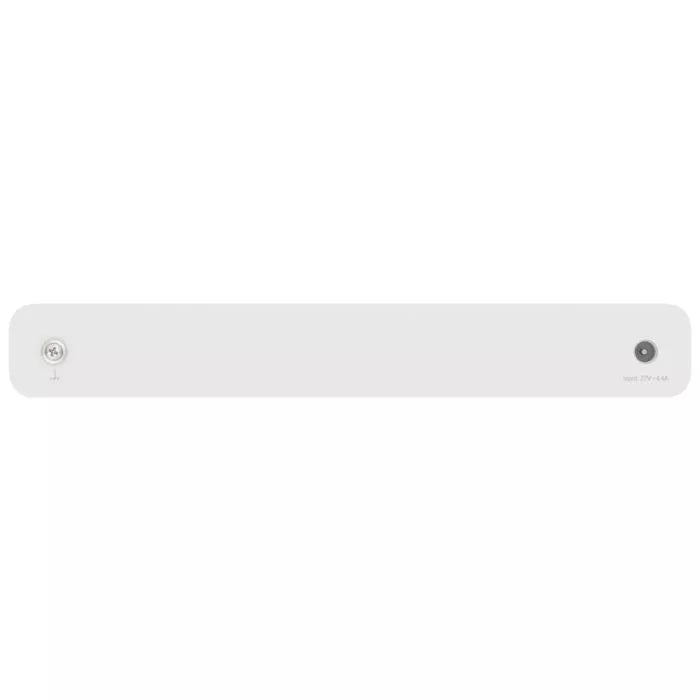

• Power Method: External AC/DC adapter

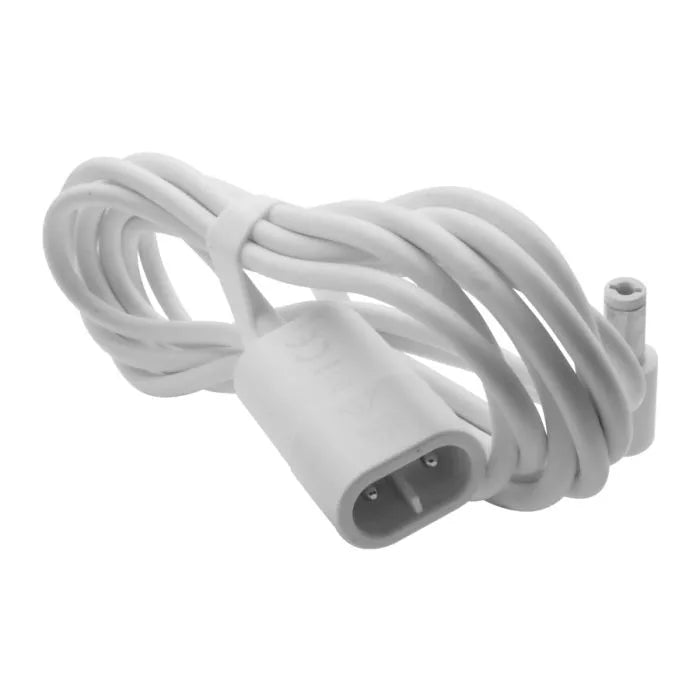

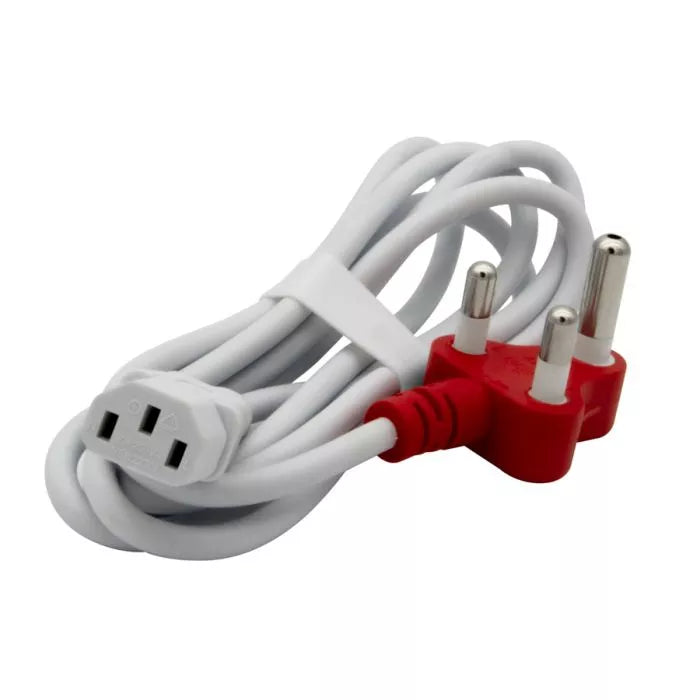

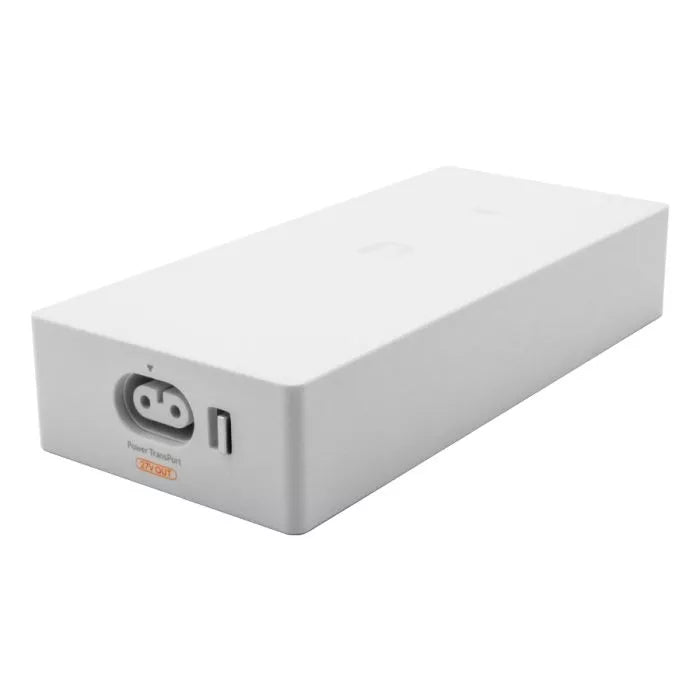

• Power Supply: 27V DC, 4.4A power adapter (included)
• Supported Voltage Range: 24–28V DC
• Max. Power Consumption: 10W (excluding PoE output)
• ESD/EMP Protection: Air: ±15kV, Contact: ±8kV
• Operating Temperature: -10 to 50°C (14 to 122°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
