Ubiquiti UISP Fiber GPON OLT 8 PON Ports 2SFP+ | UF-OLT

The Ubiquiti UF-OLT is an eight-port GPON Optical Line Terminal (OLT) designed to manage fiber internet services for up to 1,024 clients, with each port supporting up to 128 clients. This device is ideal for Internet Service Providers (ISPs) and telecom operators aiming to deliver high-speed fiber-optic connectivity over long distances, up to 20 km per link. The UF-OLT offers flexible power options with two modular power adapter bays, accommodating either AC/DC or DC/DC power modules. It includes one AC/DC module, with additional modules available separately.

Features

• Eight GPON OLT SFP ports
• Two 10 Gbps SFP+ uplink ports
• Supports up to 1,024 concurrent clients (128 per GPON port)
• Physical link reach up to 20 km
• Supports downstream speeds of 2.488 Gbps and upstream speeds of 1.244 Gbps
• Flexible power options with hot-swappable AC/DC PSU modules
• Managed via UISP Mobile App
• Supports 8 priority queues per user port and traffic classification
• Rack-mountable 1U design

Specifications

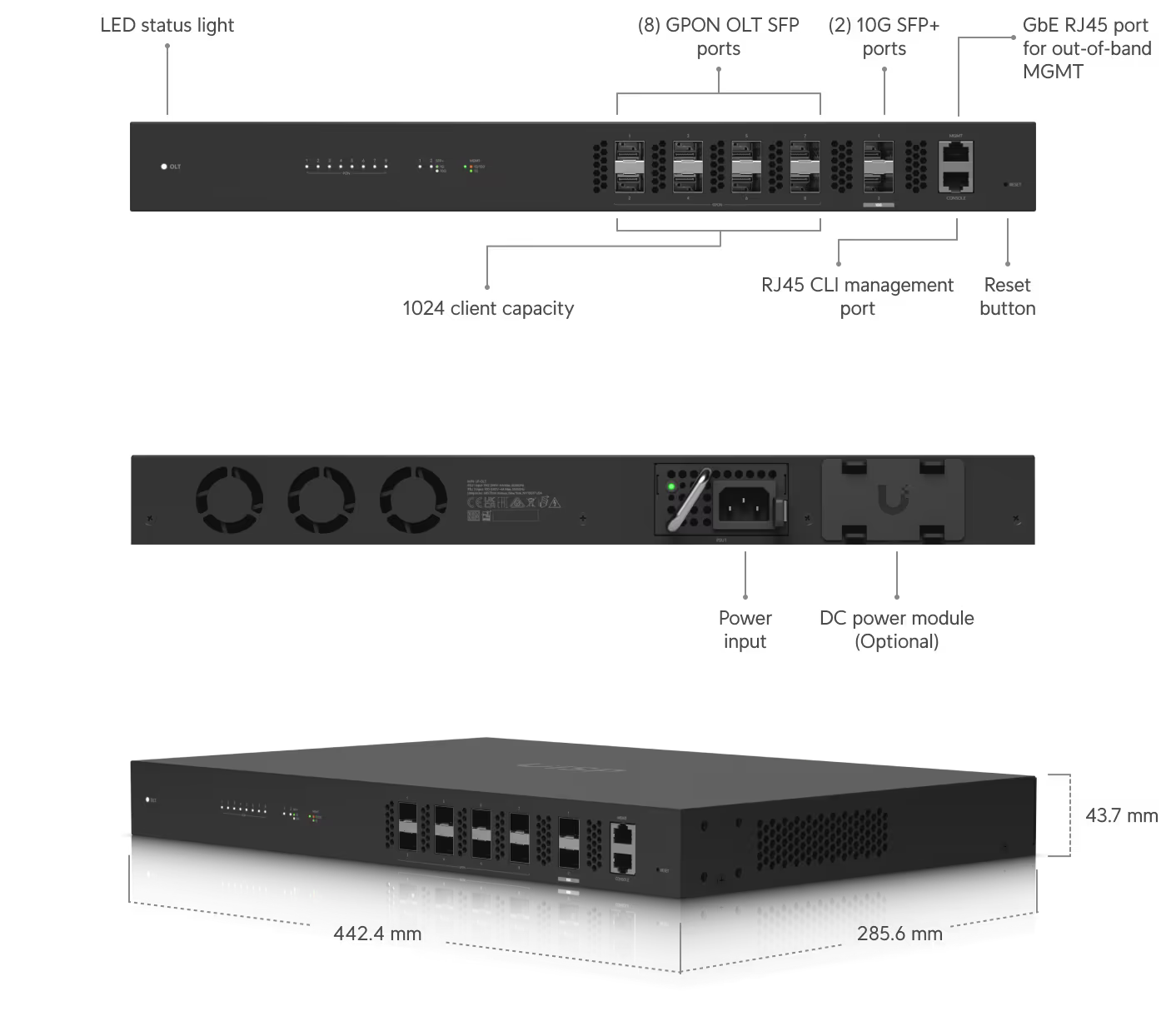

• Networking Interfaces: (8) GPON OLT SFP ports, (2) 10 Gbps SFP+ ports
• Management Interfaces: (1) Ethernet Out-of-Band, (1) Ethernet In-Band, (1) RJ45 Serial Console port
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Supply: (2) Hot-swappable AC/DC PSU modules
• Max. Power Consumption: 40W (excluding SFP modules)
• Operating Temperature: -10 to 45° C (14 to 113° F)
• Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC
• Operating Wavelength: TX: 1490 nm, RX: 1310 nm
• Line Code: Scrambled NRZ
• Optical Interface Nominal Bit Rate: Downstream: 2.488 Gbps, Upstream: 1.244 Gbps
• Physical Reach: 20 km
• Software Features: OLT GPON Core and Layer 2 Ethernet switch, Supports 4,062 VLANs, Advanced QoS with 8 priority queues per user port
