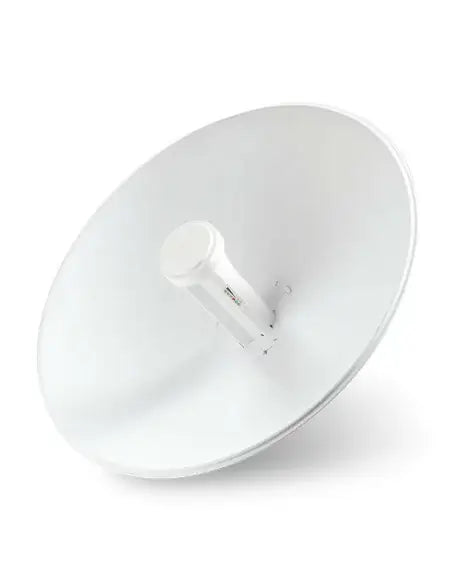

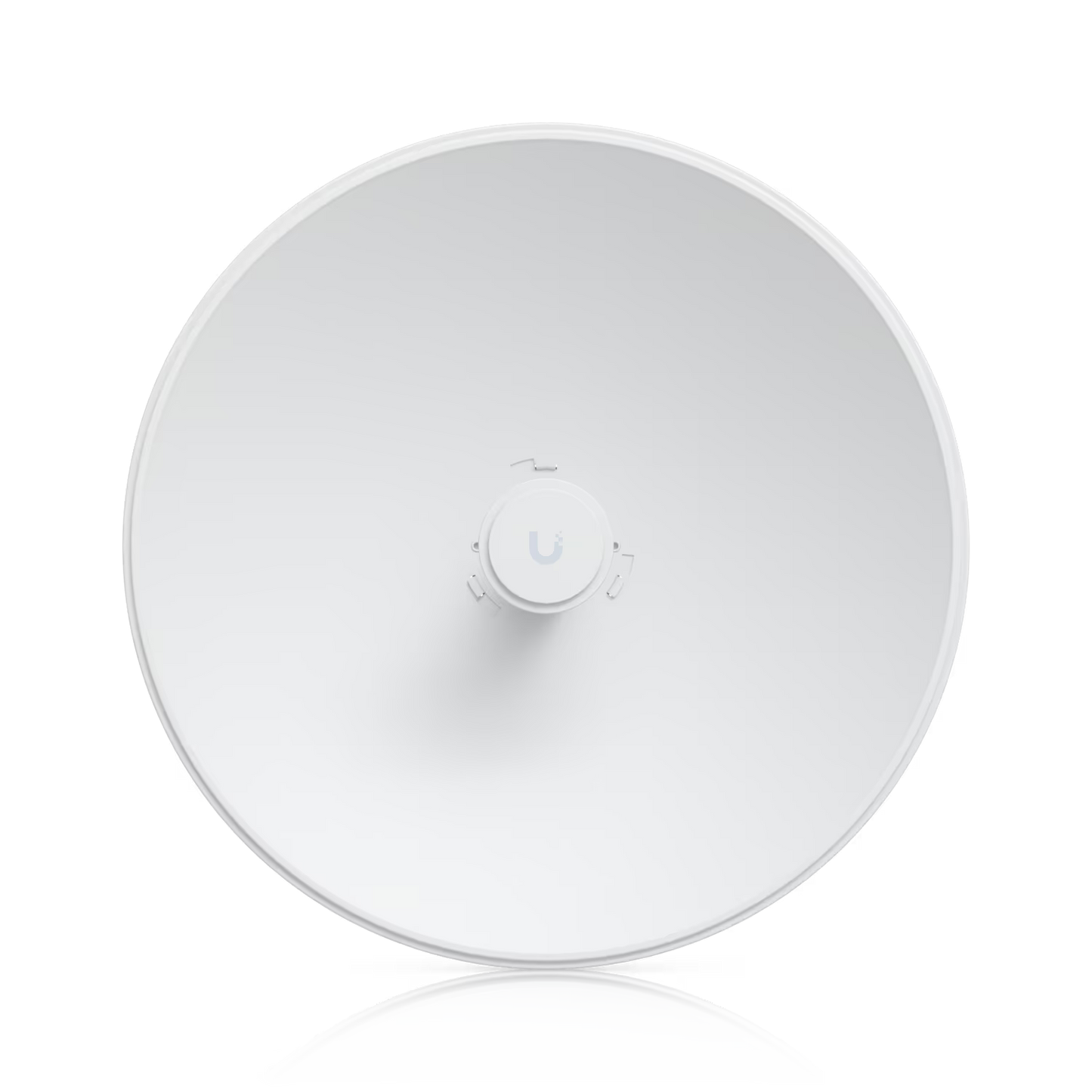

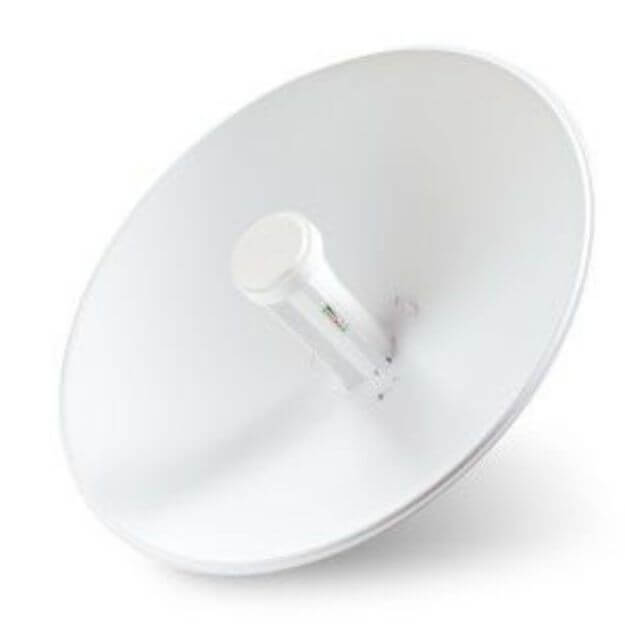

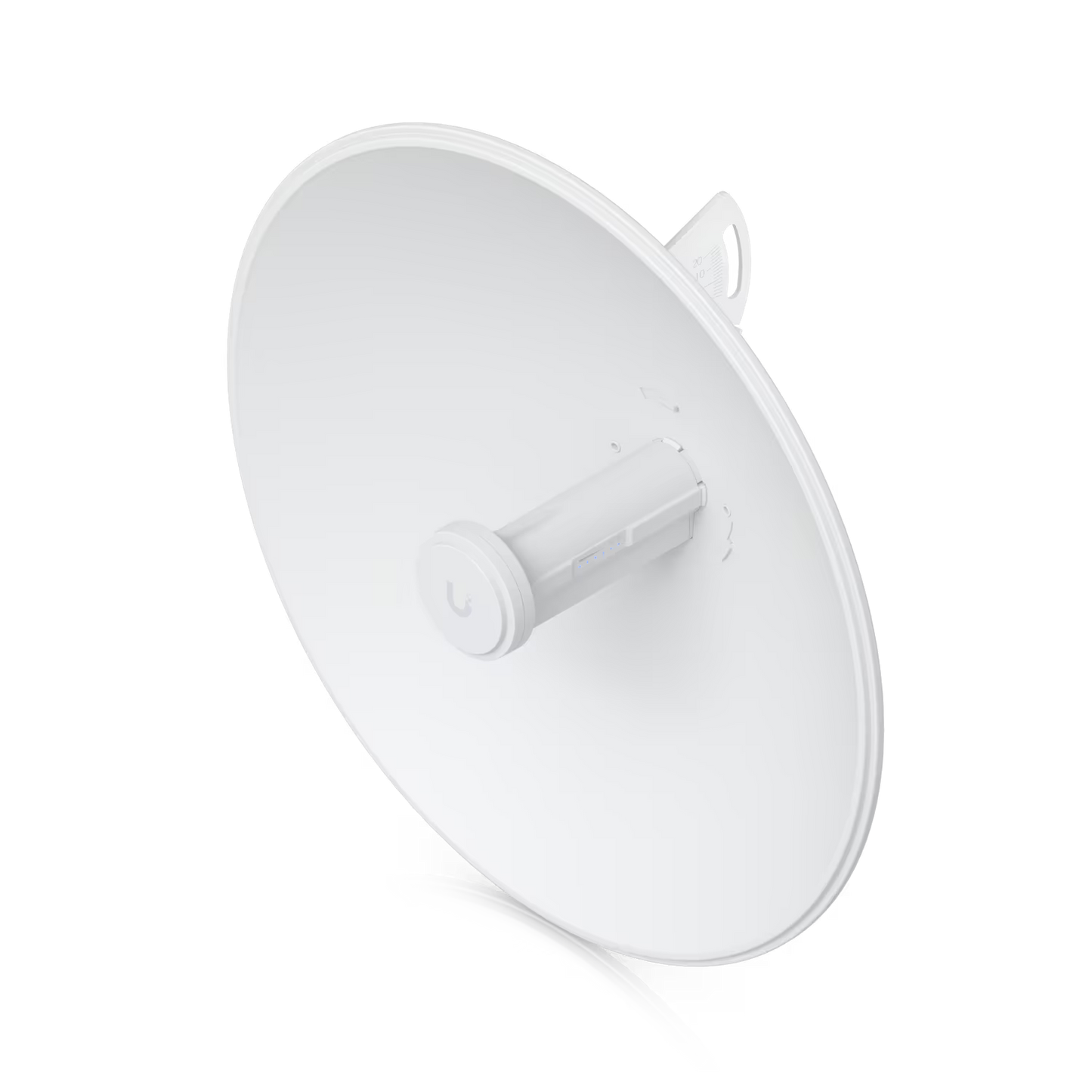

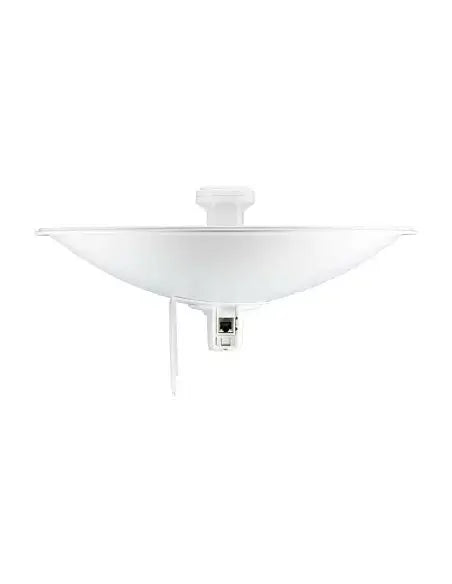

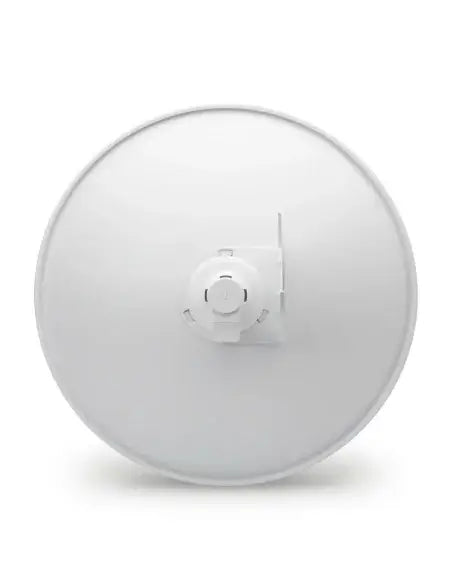

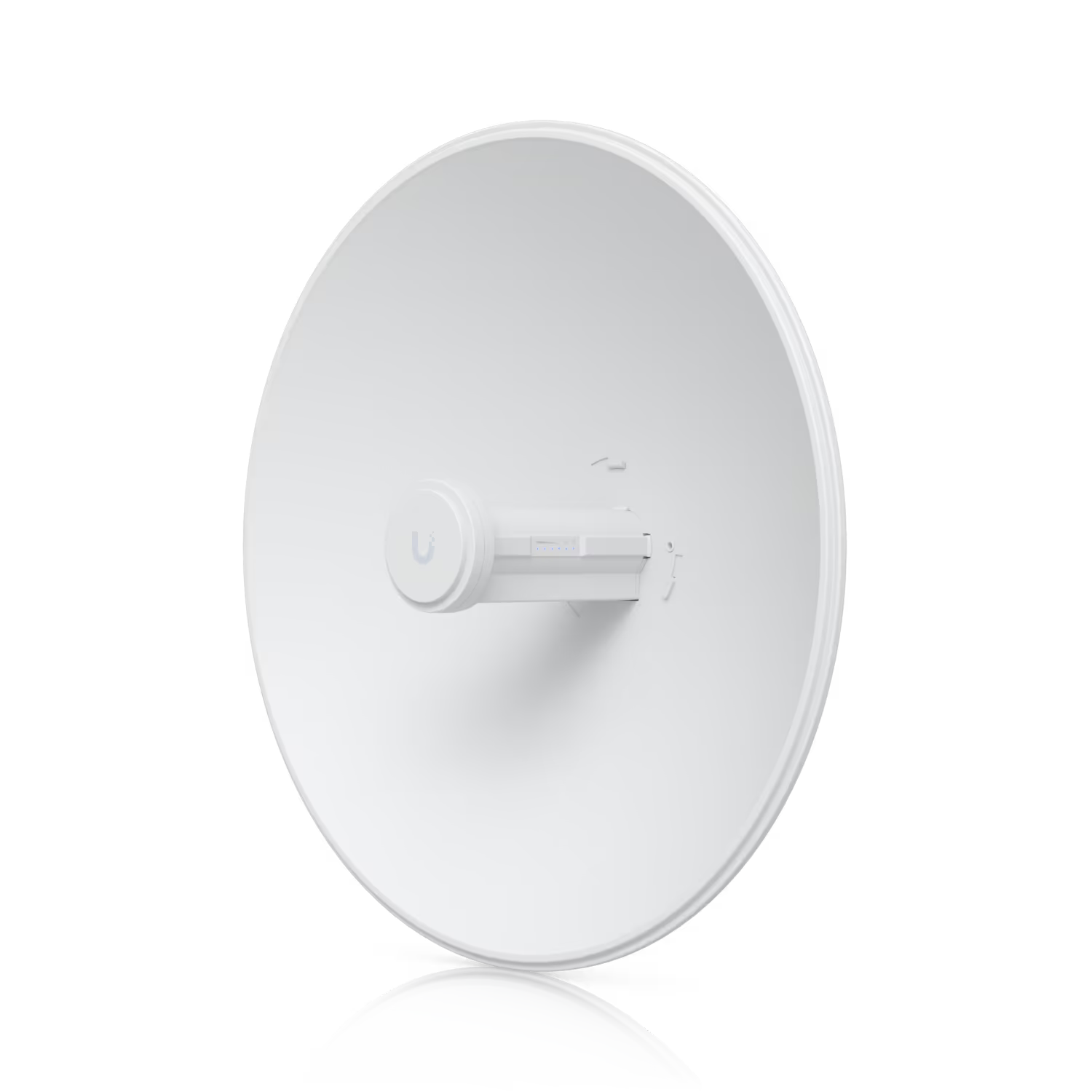

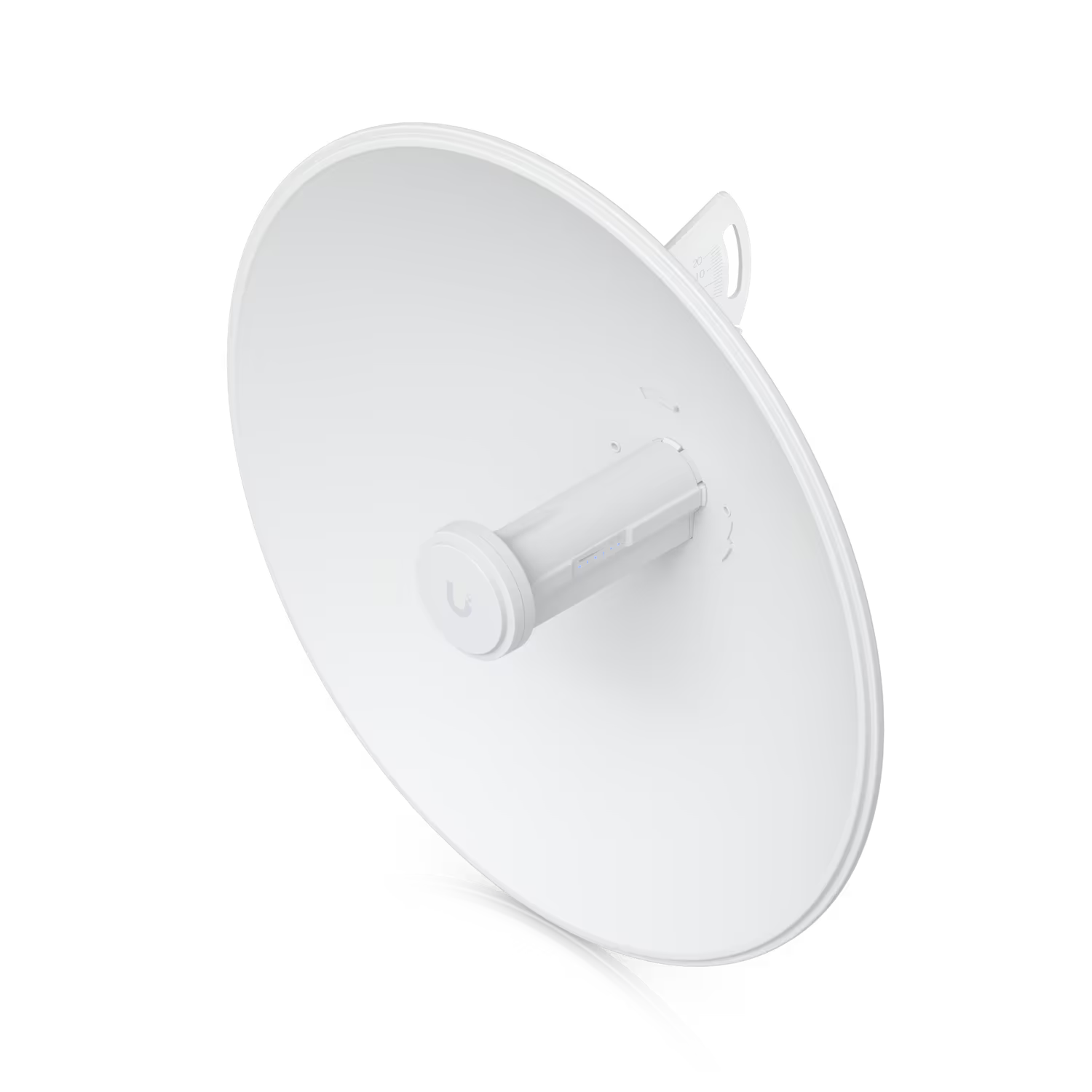

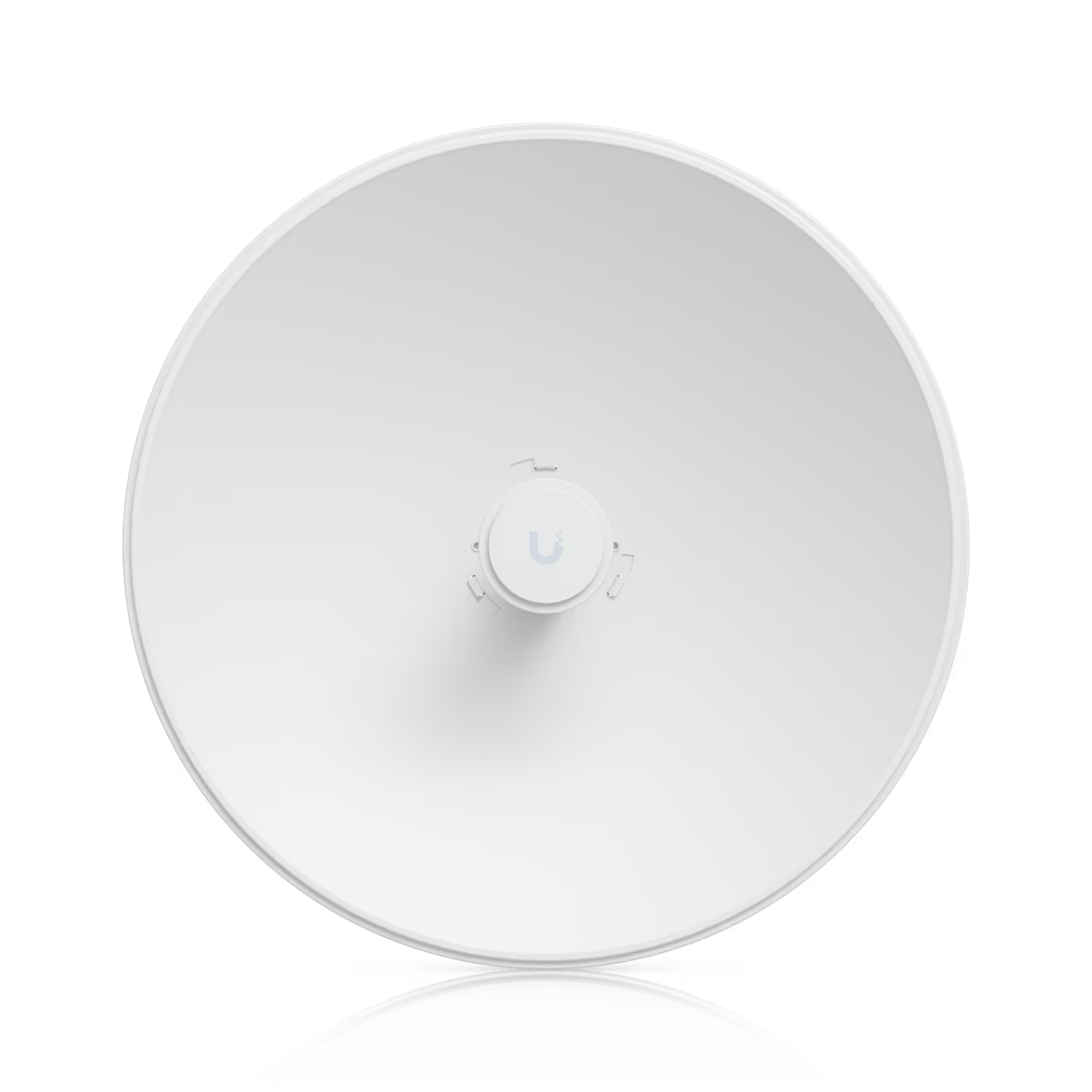

Ubiquiti UISP airMAX PowerBeam M5 5GHz 25dBi Radio | PBE-M5-400

The Ubiquiti UISP airMAX PowerBeam M5 5GHz 25dBi Radio (PBE-M5-400) is a high-performance wireless bridge designed for long-distance point-to-point and point-to-multipoint connections. Utilizing Ubiquiti's InnerFeed® technology, it integrates the radio into the feedhorn of the antenna, eliminating the need for cables and simplifying installation. The PowerBeam's focused beamwidth enhances noise immunity, making it ideal for deployments in areas with high RF interference. With a 5 GHz frequency band and a 25 dBi gain, it delivers throughput exceeding 150 Mbps, suitable for applications such as broadband internet access, video surveillance backhaul, and connecting remote locations.

Features

• Integrated radio design with InnerFeed® technology
• High-gain 25 dBi antenna for long-range connectivity
• Focused beamwidth for improved noise immunity
• Throughput exceeding 150 Mbps
• Operates in the 5 GHz frequency band
• Robust UV-stabilized plastic enclosure

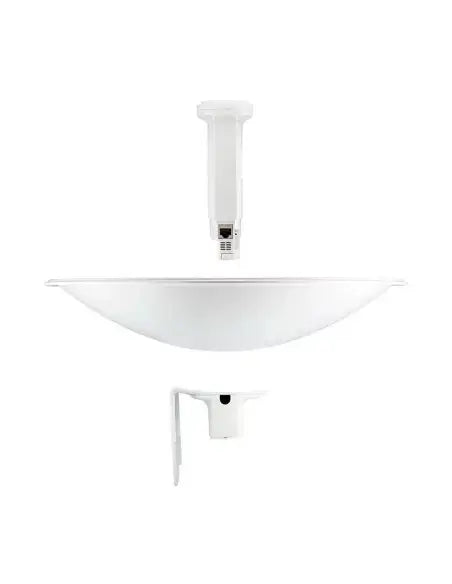

• Pole mount kit included for easy installation
• Passive PoE support with included 24V, 0.5A Gigabit PoE adapter
• LED indicators for power, LAN, and WLAN signal strength
• Weather-resistant design with wind survivability up to 200 km/h (125 mph)

Specifications

• Networking Interface: (1) Gigabit Ethernet RJ45 port
• Power Method: Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)
• Power Supply: 24V, 0.5A Gigabit PoE adapter (Included)
• Supported Voltage Range: 20–27V DC
• Max. Power Consumption: 8W
• Max. TX Power: 26 dBm
• Gain: 25 dBi
• ESD/EMP Protection: Air/contact: ± 24 kV
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs: Software-adjustable to correspond to custom RSSI levels
• RoHS Compliance: Yes
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
