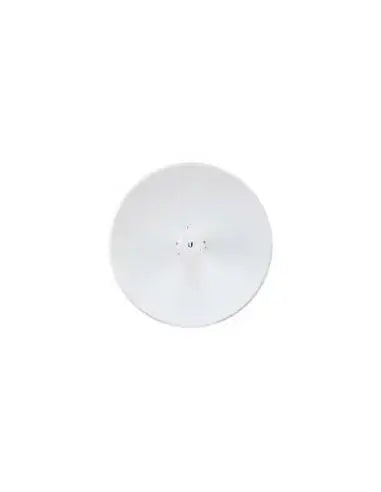

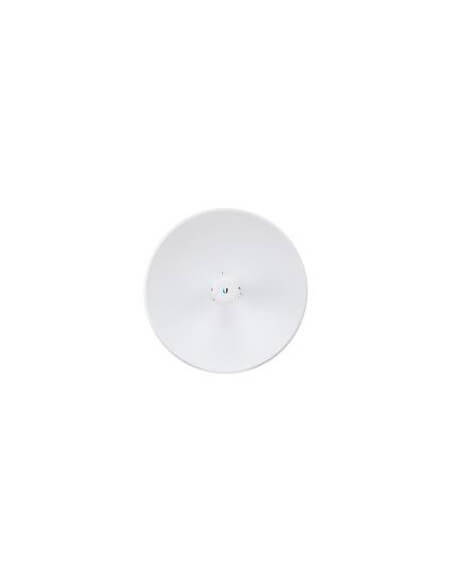

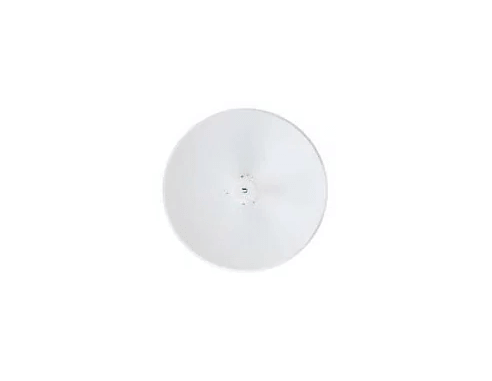

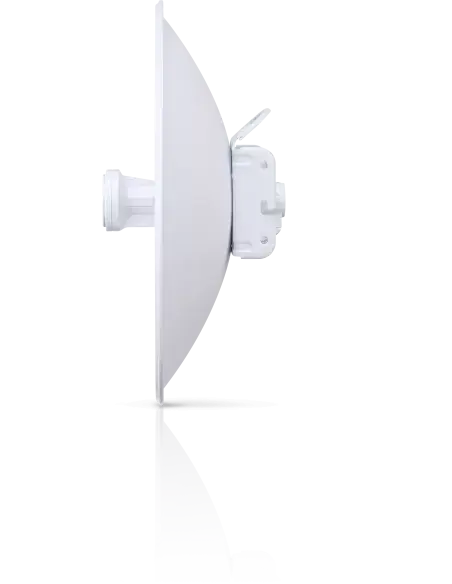

Ubiquiti UISP airMAX PowerBeam AC 5GHz 25dBi Radio | PBE-5AC-Gen2

The Ubiquiti UISP airMAX PowerBeam AC 5GHz 25dBi Radio (PBE-5AC-Gen2) is a high-performance wireless bridge designed for long-distance point-to-point (PtP) and point-to-multipoint (PtMP) applications. Utilizing Ubiquiti's proprietary airMAX AC technology, it delivers enhanced throughput and scalability, making it ideal for connecting remote locations, extending network coverage, and providing reliable internet access in areas with limited infrastructure. The integrated dish reflector design ensures focused signal transmission, improving noise immunity and overall link performance.

Features

• Dedicated Wi-Fi Radio for Management: Simplifies device setup and configuration via mobile devices.
• Integrated Radio Design: InnerFeed® technology integrates the radio into the feedhorn, eliminating cable losses and enhancing performance.
• Improved Noise Immunity: Tighter beamwidth design filters out noise, enhancing performance in high-interference environments.

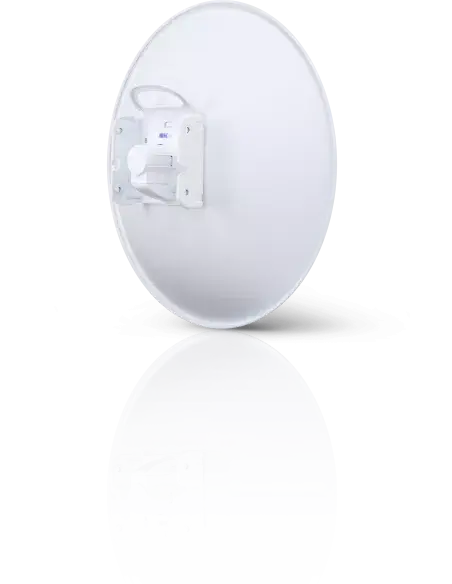

• Enhanced Mounting and Surge Protection: Features a robust mount with a convenient lifting loop and improved protection against electrostatic discharge (ESD) events.
• Plug and Play Installation: Requires no tools for assembly; only a single wrench is needed for pole-mounting.
• Advanced airOS® 8 Software: Provides real-time RF analytics, airMAX® ac protocol support, and an intuitive user interface.

Specifications

• Networking Interface: (1) Gigabit Ethernet (GbE) RJ45 port
• Processor: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2, 8 MB Flash
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Supported Voltage Range: 20–27V DC
• Power Supply: 24V, 0.5A Gigabit PoE adapter (included)
• ESD/EMP Protection: Air/contact: ±24 kV
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Operating Frequency: Worldwide: 5150–5875 MHz; USA: U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5240–5725 MHz, U-NII-3: 5725–5850 MHz
• Management Radio (MHz): Worldwide: 2412–2472 MHz; US/CA: 2412–2462 MHz
• Gain: 25 dBi
• Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz; PtMP Mode: 10/20/30/40 MHz
• Ambient Operating Temperature: -40 to 70°C (-40 to 158°F)
• Ambient Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC, RoHS
• NDAA Compliant: Yes
